High Quality Coatings with an Automatic, Adjustable System
Precise, simple, and efficient optimization in your research
Overview | Specifications | Features | Gallery | In the Box | Resources

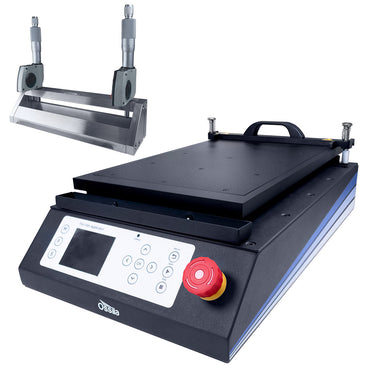

Take control of essential coating parameters with our automatic doctor blade coater. The included applicator is made from stainless steel with digital micrometer gauges. Make micron-level adjustments to the gap height (up to 10 mm) with ultimate accuracy for a range of film thicknesses as you optimize your coatings.
The integrated software makes it easy to adjust and set the coating speed, from 0.05 mm.s-1 to 250 mm.s-1. Beyond blade coating, you can also use Mayer rods, which can be purchased separately, for further flexibility as you experiment with and optimize your coatings. The doctor blade coater can either come with a simple glass stage or a vacuum stage for uniform holding across the whole substrate.
Digital Micrometer for
Precise Blade Positioning
Control the gap height for tight control
of coating thicknesses
Uniform Coatings on
a Range of Substrates
Up to 200 mm coating widths across
a 290 mm travel distance
Efficient Setup with
Quick Lock Design
Easy stage and drip tray cleaning between different coatings
Customizable Stainless
Steel Applicator
Coat with materials that require
higher chemical resistance
Specifications
Automatic Film Applicator
| Maximum Stage Travel Length | 290 mm |
|---|---|
| Minimum Stage Speed | 0.05 mm.s-1 |
| Maximum Stage Speed | 250 mm.s-1 |
| Stage Speed Increments | 0.01 mm.s-1 |
| Vacuum Stage | Anodized aluminum stage, 0.8 mm vacuum holes, square grid arrangement (7.75 mm spacing), 6 mm push-fit connector |
| Glass Stage | 8 mm toughened glass, printed grid pattern |
| Power Supply | DC 24 V, 2 A, via 100 – 240 V 50/60 Hz power adapter |
| Dimensions (D x W x H) | 360 mm x 280 mm x 190 mm (14.2" x 11" x 7.5") |
| Weight | 6.45 kg |
Adjustable Film Applicator
| Coating Widths | 100 mm, 200 mm, and custom (50 mm – 200 mm) |
|---|---|
| Material | 304 stainless steel |
| Gap Height | 0 – 10 mm |
| Gauge Type | Digital |
| Gauge Resolution | 1 µm |
| Gauge Accuracy | 3 µm |
Precise Coating Control
Easy and Precise Optimization
The digital micrometer head provides high accuracy blade positioning. For improved reproducibility and efficiency, the blade is calibrated to the zero position of the micrometer gauge. Then, optimize your coatings with smooth, reliable movement at speeds as low as 0.05 mm.s-1 and as high as 250 mm.s-1. Choose the right speed for a wide range of solution viscosities and consistently produce coatings without defects.
Versatile Coating Area
With a maximum travel distance of 290 mm, scaling up your doctor blade coating processes has never been easier. You can customize the width of your film applicator to match your research needs, with coating widths as low as 50 mm up to 200 mm. And the automated system is also compatible with other coating accessories like Mayer bars, Sheen applicators, or Bird applicators.
Ideal for Flexible Substrates
If you are coating flexible substrates, choose our vacuum model paired with the Ossila Vaccum Pump. With a maximum vacuum of 330 mbar and a 7 L/min maximum flow rate, it is perfect for securing flexible or foil substrates. Keeping your flexible substrate still and level is essential to producing uniform, defect-free coatings.
Doctor Blade Coater Gallery
In the Box
- Ossila Automatic Film Applicator
- Stainless steel adjustable film applicator
- Power supply
Doctor Blade Coater Accessories
Resources
Doctor Blade Coater: Set Up, Use and Maintenance
Doctor blade coating is an easy way of making uniform thin films over large areas. It is great for coating flexible substrates, foils and polymer films.
Read more...
