Product Code M2327A1-50mg
Price $325 ex. VAT

Quality assured

Expert support

Volume discounts

Worldwide shipping

Fast and secure


BTP-4Cl-12, Y6 family member for highly efficient NFA solar cells

High purity (>99%), great for solution processability and mass device production


BTP-4Cl-12, also known as Y7-BO or BO-4Cl, belongs to the highly efficient non-fullerene acceptor Y6 family. The only difference between BTP-4Cl-12 and Y7 is that BTP-4Cl-12 has larger butyloctyl alkyl chains that are attached to the pyrrole rings while Y7 has ethylhexyl alkyl chains at the clove of the U-shaped structure. Also, BTP-4Cl-12 has greater solubility so it has great advantage for solution processability and mass device production with environmentally benign solvents as active layer materials for organic polymer solar cells.

High efficient non-flullerene acceptor

High efficient non-flullerene acceptor

With highly conjugated core

Improved solution proccessability

Improved solution proccessability

Owing to the branched ethylhexyl alkyl chains

Worldwide shipping

Worldwide shipping

Quick and reliable shipping

High purity

High purity

>99% pure

By the method of delayed processing using non-halogenated solvent toluene, optimized nano-fibril like morphology of PM6:BTP-4Cl-12 can be achieved with more efficient charge separation and transport and outstanding device performance efficiency of 17.33% in PCE.

Device structure: (ITO)/PEDOT:PSS/PM6:BTP-4Cl-12:BV/PFN-Br/Al. [1]

Thickness (nm) VOC (V) JSC (mA cm-2) FF (%) PCE (%)
110 nm 0.855 26.10 77.70 17.33

Chemical Structure

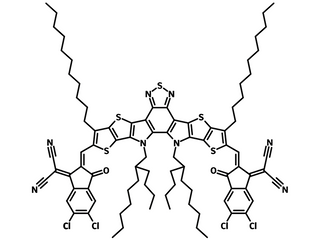

BTP-4Cl-12 chemical structure
Chemical structure of BTP-4Cl-12 (BO-4Cl)

Literature and Reviews

  1. Organic photovoltaic cell with 17% efficiency and superior processability, Y. Cui et al., Natl. Sci. Rev., 7, 1239–1246 (2020); DOI: 10.1093/nsr/nwz200.
  2. Highly efficient non-fullerene organic solar cells enabled by a delayed processing method using a non-halogenated solvent, X. Xu et al., Energy Environ. Sci., 13, 4381-4388 (2020); DOI: 10.1039/D0EE02034F.
  3. J71-based ternary organic photovoltaics exhibiting 13.65% efficiency, C. Xu et al., Sustainable Energy Fuels, 4, 3979-3984 (2020); DOI: 10.1039/d0se00605j.
  4. Unveiling structure-performance relationships from multi-scales in non-fullerene organic photovoltaics, S. Li et al., Nat Commun 12, 4627 (2021); DOI: 10.1038/s41467-021-24937-5.
  5. Simultaneously enhanced efficiency and operational stability of non-fullerene organic solar cells via solid additive mediated aggregation control, X. Zhang et al., Small, 17 (35); 2102558 (2021); DOI:10.1002/smll.202102558.
  6. Chlorination: An Effective Strategy for High-Performance Organic Solar Cells, Q. Zhao et al., Adv. Sci., 7, 2000509 (2020); DOI: 10.1002/advs.202000509.

General Information

CAS Number 2447642-41-1
Chemical Formula C90H102Cl4N8O2S5
Purity >99% (1H NMR)
Full Name 2,2'-((2Z,2'Z)-((12,13-bis(2-butyloctyl)-3,9-diundecyl-12,13-dihydro-[1,2,5]thiadiazolo[3,4-e]thieno[2",3’':4’,5']thieno[2',3':4,5]pyrrolo[3,2-g]thieno[2',3':4,5]thieno[3,2-b]indole-2,10-diyl)bis(methanylylidene))bis(5,6-dichloro-3-oxo-2,3-dihydro-1H-indene-2,1-diylidene))dimalononitrile
Molecular Weight 1629.96 g/mol
Absorption λmax 836 nm (in film)
HOMO / LUMO HOMO = -5.66 eV, LUMO = -4.09 eV; Eg = 1.39 eV [1]
Solubility Chloroform, chlorobenzene
Form Dark blue powder/crystals
Synonyms BO-4Cl, BTP-BO-4Cl, Y6-BO-4Cl, Y7-BO
Classification / Family NFAs, n-type non-fullerene electron acceptors, Organic semiconducting materials, Low band-gap small molecule, Small molecular acceptor, Organic photovoltaics, Polymer solar cells, NF-PSCs.

MSDS Documentation

BTP-4Cl-12 MSDSBTP-4Cl-12 MSDS Sheet

Pricing

Batch Quantity Price
M2327A1 50 mg £260
M2327A1 100 mg £380
M2327A1 250 mg £760
M2327A1 500 mg £1250
M2327A1 1 g £2300

To the best of our knowledge the information provided here is accurate. The values provided are typical at the time of manufacture and may vary over time and from batch to batch. Products may have minor cosmetic differences (e.g. to the branding) compared to the photos on our website. All products are for laboratory and research and development use only.
