UV Light Source
Equipment Accessories, Spectroscopy Equipment
UV Light Source Manual
Product manual for Ossila LED Light Sources (375 nm and 405 nm)
Product manual for Ossila LED Light Sources (370 nm)
Affordable UV Light for Optical Fluorescence Spectroscopy
High power light at 365 – 405 nm
Overview | Specifications | Gallery | Related Products | Resources and Support

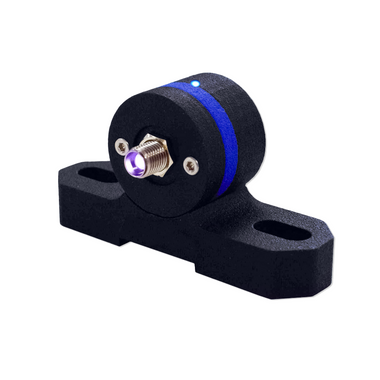

UV light sources from Ossila are available in a range of wavelengths from 365 nm – 405 nm. These light sources are ideal for optical excitation in visible fluorescence spectroscopy measurements.
Our UV light sources are compatible with the Ossila Optical Spectrometer, as well as our complete selection of optical spectroscopy tools and accessories. You can use them in a free space setup, attach them to a transmission holder, or connect them with an optical fiber. Additionally, you can easily secure these light sources to any standard metric/imperial optical table or breadboard plate.
Specifications
| Dimensions (D x W x H) | 30 mm x 70 mm x 40 mm |
|---|---|
| Weight | 25 g |
| Optical Connection | SMA 905 fiber or free space |
| Power | USB type-C (5 V, 70 mA) |
Optical Specifications
| Product Code | Wavelength* | Optical Power |
|---|---|---|
| G2008A1 | 365 nm | >35 mW |
| G2008B1 | 375 nm | >35 mW |
| G2008C1 | 405 nm | >55 mW |
* ±15nm
