Electrode Extension Lead
Electrode Extension Lead for Non-Standard Electrochemical Apparatus
Enable flexible electrode placement in custom experimental setups.

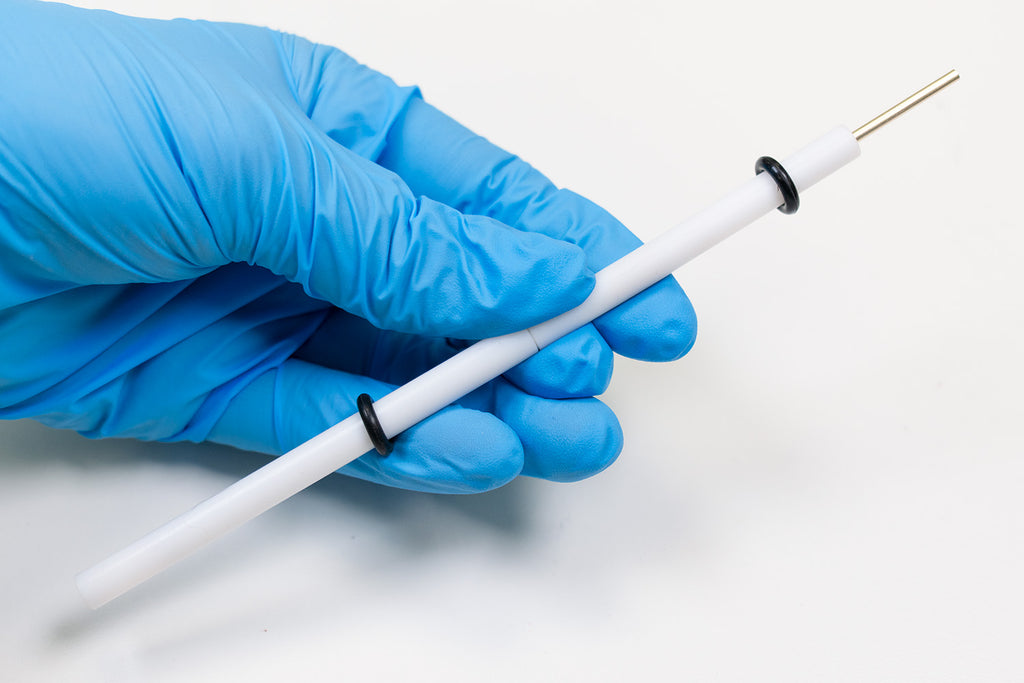

Standard cell designs often limit your experimental freedom. These 60 mm Electrode Extension Leads allow you to position your Working Electrode (WE), Reference Electrode (RE), and Counter Electrode (CE) precisely inside non-standard or custom-built electrochemical apparatus without straining your connections.

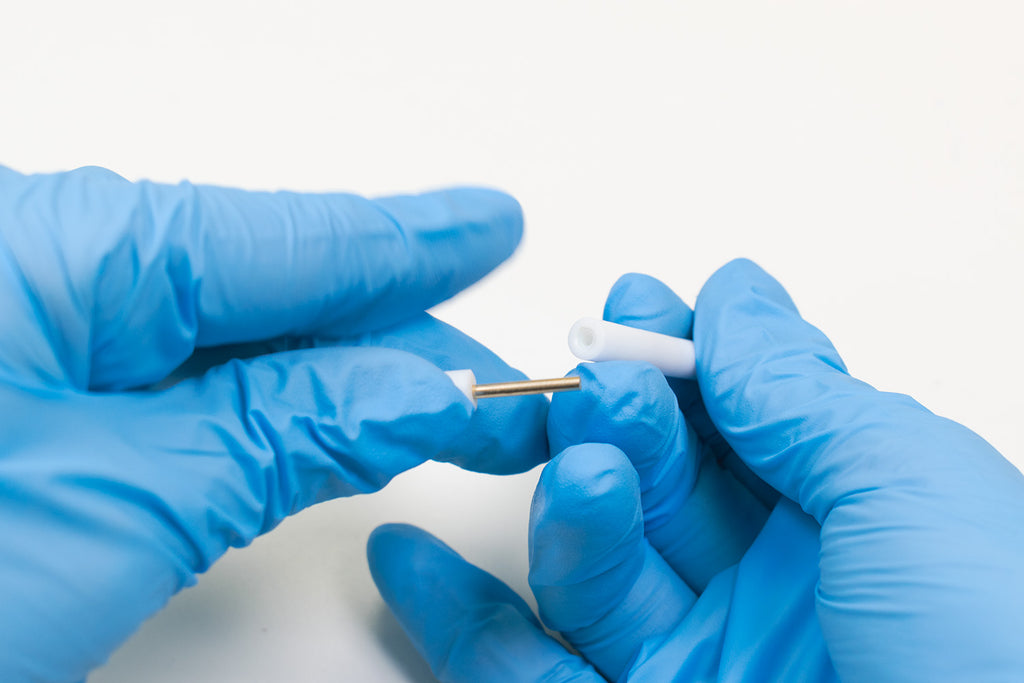

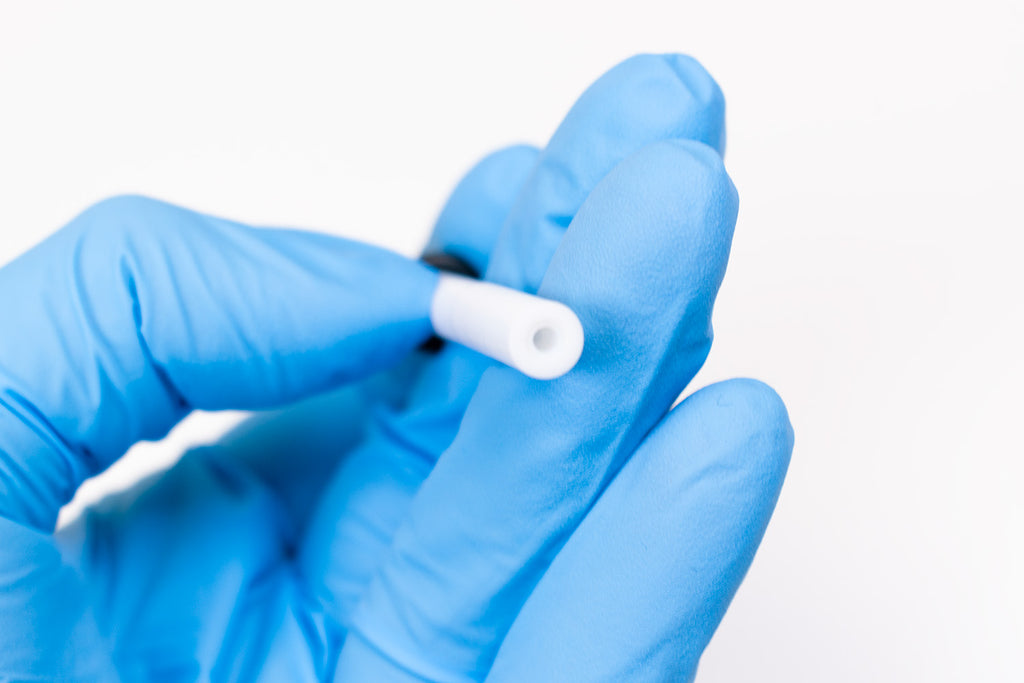

Each lead is engineered with a 20 mm exposed male rod at the top for seamless connection to your potentiostat cable or cell head, paired with a 20 mm female receiving hole at the base to accommodate your electrode's connecting pin. To ensure universal compatibility, the chemical-resistant PTFE female sheath can be easily trimmed with a clean blade if your electrode's connecting lead is shorter than 20 mm. Trimming guarantees a flush, stable fit and a solid, noise-free electrical connection. Contact us if you require the female sheath needs to be pre-trimmed by us before shipping.

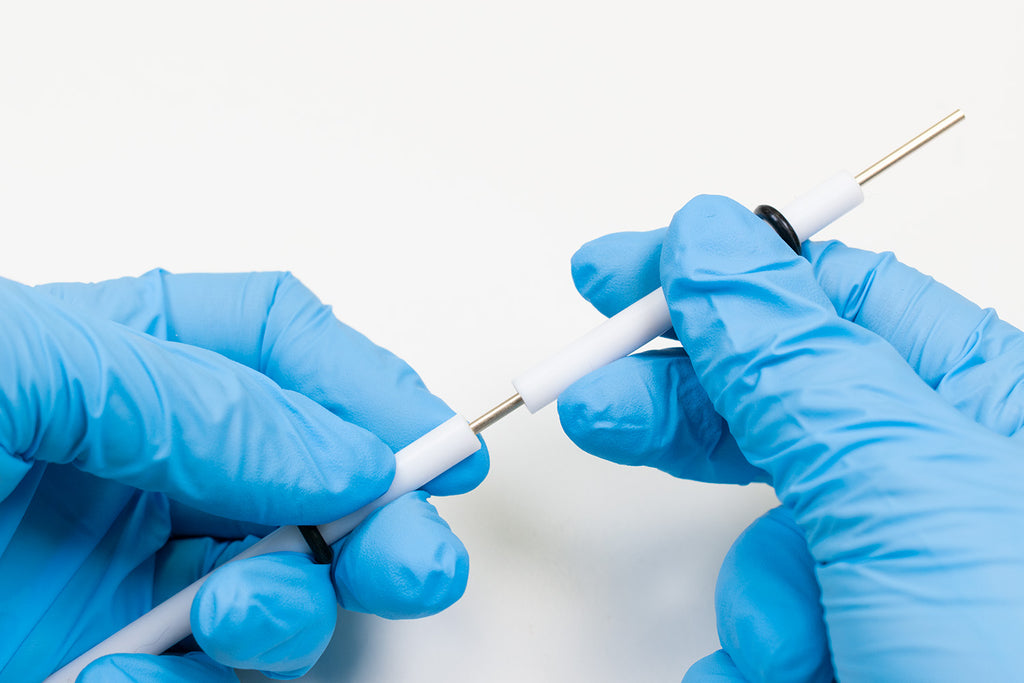

To maintain optimal performance and signal integrity, ensure the internal electrical connections remain completely dry and free from electrolyte splash. Preventing liquid contact inside the female receptor avoids localized corrosion, which can otherwise introduce unwanted resistance and electrical noise into your measurements. When setting up your cell, simply apply straight, uniform pressure to slide the lead onto your electrode pin to protect the internal contacts from bending.
