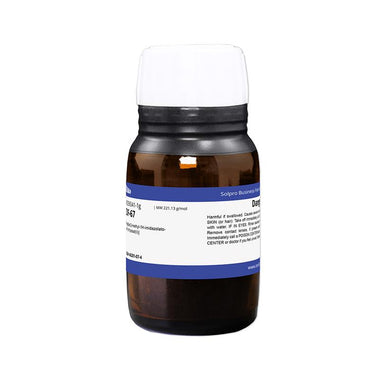

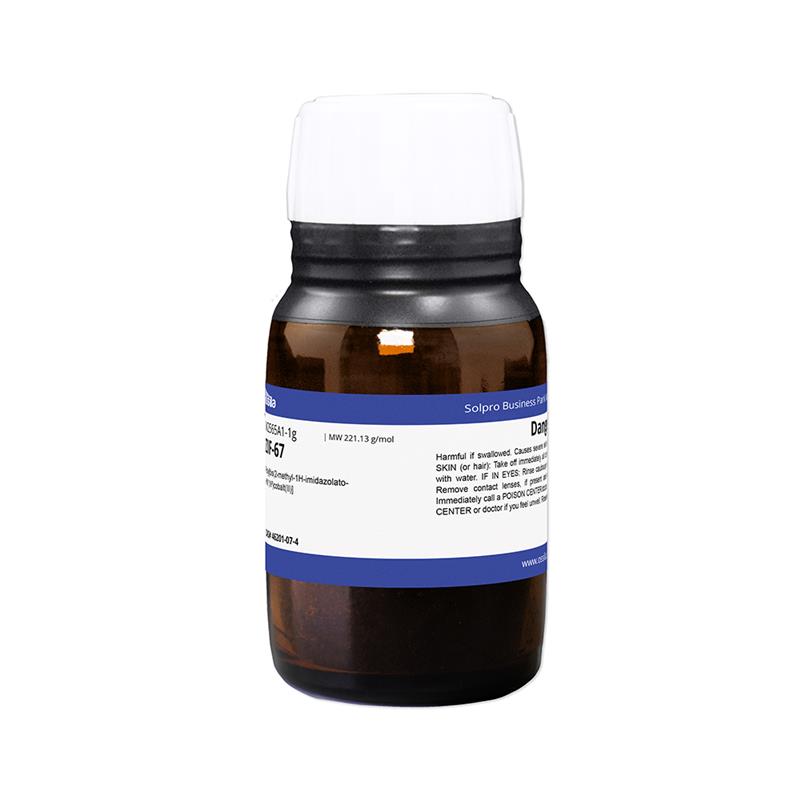

ZIF-67

CAS Number 46201-07-4

Metal Organic Frameworks (MOFs), Porous Organic Frameworks

Highly Porous and Thermally Stable Zeolitic Imidazolate Framework

Widely used in catalysis, batteries, and water purification

Product Information | MSDS | Literature & Reviews | Related Products

ZIF-67 (CAS number: 46201-07-4) is a cobalt-based zeolitic imidazolate framework, composed of Co(II) metal centers tetrahedrally coordinated by 2-methylimidazolate (mIm) linkers. This coordination enables ZIF-67 to crystallize in a sodalite (SOD) topology, resulting in a robust network. Owing to its zeolite-like structure, ZIF-67 exhibits excellent porosity (surface area ca. 1600 m²/g) and thermal stability (ca. 500 °C under inert environment).

With the high surface area and abundant active sites, a ZIF-67/PVDF membrane can capture pharmaceutical pollutants, such as ciprofloxacin, from wastewater. The membrane exhibits adsorption capacity of 4087.5 μg/cm² across a wide pH range.

ZIF-67 is also widely applied as a template for battery electrode materials, such as Co_xS_y composite encapsulated in a carbon shell. The resulting Co_xS_y electrode delivers an excellent capacity of 875.6 mAh/g at a current density of 100 mA/g.

Wide Range of Applications

Drug delivery, gas
separation, and more

Robust Sodalite Topology

Excellent porosity and
thermal stability

High Surface Area with Many Active Sites

Adsorption of 4087.5 μg/cm² across a wide pH range

Simple Worldwide Shipping

Reliable delivery via tracked courier as standard

General Information

CAS Number	46201-07-4
Chemical Formula	C₈H₁₀N₄Co
Full Name	Poly[bis(2-methyl-1H-imidazolato-κ²N¹,N³)cobalt(II)]
Molecular Weight	221.13 g/mol
Synonyms	Co(mIm)₂, Cobalt 2-methylimidazolate, Co(2-methylimidazolate)₂
Classification or Family	Zeolitic imidazolate frameworks, Metal-organic frameworks

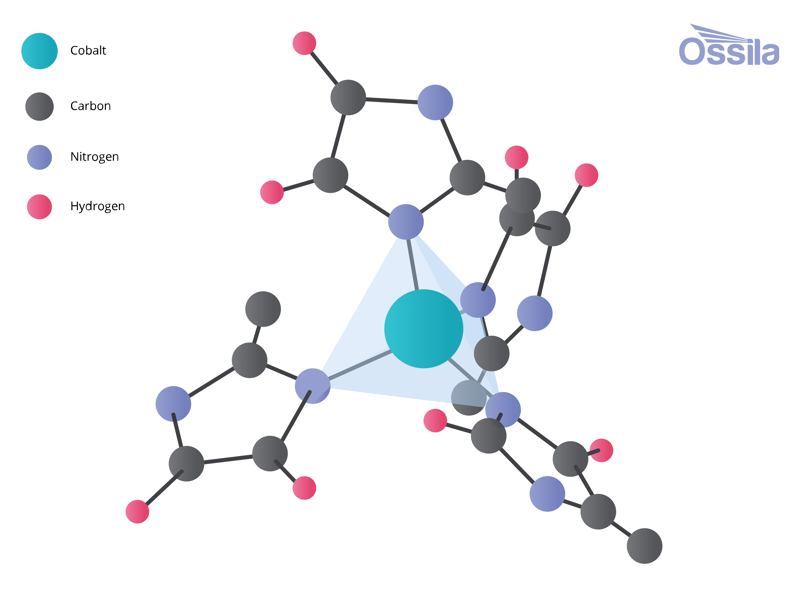

Chemical Structure

ZIF-67 structure — ZIF-67 Core Structure, CAS No. 46201-07-4

Product Details

Particle Size	5 μm (D50)
Surface Area (BET)	1349 m²/g
Pore Size	0.5 – 2 nm
Appearance	Purple powder

MSDS Documentation

ZIF-67 MSDS Sheet

References

Functional nanozymes consisting of Co²⁺-ZIF-67 metal-organic framework nanoparticles and Co²⁺-ZIF-67/polyaniline conjugates, Y. Wu et al., Adv. Funct. Mater., 34, 2306929 (2024); DOI: 10.1002/adfm.202306929.
Mechanistic insights into the structural evolution of ZIF-67 via electrospinning strategy toward high electromagnetic wave absorption performance of ZIF-67-derived carbon nanofibers, X. Cao et al., Adv. Sci., 12, 2502560 (2025); DOI: 10.1002/advs.202502560.
ZIF-67-based catalysts for oxygen evolution reaction, H. Wen et al., Nanoscale, 13, 12058 (2021); DOI: 10.1039/d1nr01669e.

Porous carbon-confined Co_xS_y nanoparticles derived from ZIF-67 for boosting lithium-ion storage, X. Su et al., RSC Adv., 12, 939 (2022); DOI: 10.1039/d1ra08581f.
Correlating the structural transformation and properties of ZIF-67 during pyrolysis, towards electrocatalytic oxygen evolution, S. Frank et al., J. Mater. Chem. A, 12, 781–794 (2024); DOI: 10.1039/D3TA05293A.
Construction of an MXene/MIL Fe-53/ZIF-67 derived bifunctional electrocatalyst for efficient overall water splitting, K. Farooq et al., Nanoscale Adv., 7, 1561–1571 (2025); DOI: 10.1039/d4na00936c.
Electrospun ZIF-67/PVDF composite membranes for efficient ciprofloxacin removal from wastewater, P. Li et al., RSC Adv., 15, 11503 (2025); DOI: 10.1039/d5ra00237k.
Antibacterial and antibiofilm activities of ZIF-67, R. Gallegos-Monterrosa et al., J. Antibiot., 76, 603–612 (2023); DOI: 10.1038/s41429-023-00637-8.

We stock a wide range of Metal Organic Frameworks available to purchase online. Please contact us if you cannot find what you are looking for.
