4-Pentylphenyl 4-pentylbenzoate

CAS Number 74305-48-9

Liquid Crystals, Optoelectronic Materials


Product Code M2366A1-10g
Price $144 ex. VAT

Quality assured

Expert support

Volume discounts

Worldwide shipping

Fast and secure


4-Pentylphenyl 4-pentylbenzoate, liquid crystal (nematic)

Liquid crystal for the application of optical electronics i.e. in liquid-crystal display (LCD).


4-Pentylphenyl 4-pentylbenzoate (5PEP5) is a nematic liquid crystal with a chemical structure of 4-pentylphenyl ester of 4-pentylbenzoate.

4-Pentylphenyl 4-pentylbenzoate has a ester link and a core which is more flexible and less directed along the long molecular axis that the biphenyl liquid crystals, i.e. 4'-Heptyl-[1,1'-biphenyl]-4-carbonitrile. However, the observed alignment properties of 4-pentylphenyl 4-pentylbenzoate having two pentyl tails on its self are similar to those of the rode-like biphenyl core molecule 4-pentyl-4’-cyanobiphenyl. The alignment on the substrate polyvinyl imidazole (PVI) is perpendicular to the rubbing direction, perpendicular to the vinyl backbone

Nematic liquid crystal

Nematic liquid crystal

With phenylbenzoate core

Rod-like mesogen

Rod-like mesogen

With two pentyl alkyl chain

Worldwide shipping for 74305-48-9

Worldwide shipping

Quick and reliable shipping

High purity

High purity

>98% High purity

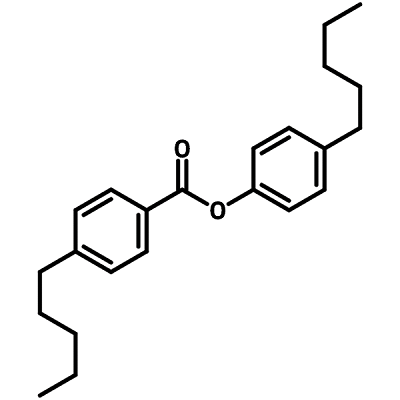

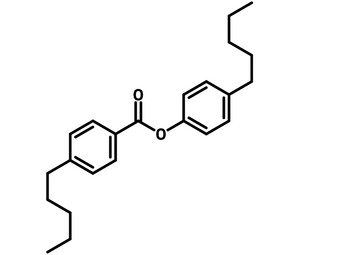

Chemical Structure

chemical structure of 4-Pentylphenyl 4-pentylbenzoate, CAS 74305-48-9
Chemical structure of 4-Pentylphenyl 4-pentylbenzoat, CAS 74305-48-9

General Information

CAS Number 74305-48-9
Chemical Formula C23H30O2
Molecular Weight 338.48
Full Name 4-Pentylphenyl 4-pentybenzoate
Synonyms 5PEP5, Pentylphenyl pentylbenzoate, 4-Amylphenyl 4′propybenzoate, 4-Pentybenzoic acid 4-pentylphenyl ester
Classification / Family Phenyl Ester Liquid Crystals, Nematic Liquid Crystals

Product Details

Purity >97% (1HNMR)
Form White powder/crystals
Melting Point 34.0 - 38.0 °C
Solubility Methanol

MSDS Documentation

4-Pentylphenyl 4-pentylbenzoate MSDS4-Pentylphenyl 4-pentylbenzoat MSDS Sheet

Pricing

Batch Quantity Price
M2366A 10 g £115
M2366A 25 g £230
M2366A 50 g £350
M2366A 100 g £520

Literature and Reviews

  1. Rod-like cyanophenyl probe molecules nanoconfined to oxide particles: Density of adsorbed surface species, S. Frunza et al., Eur. Phys. J. Plus 131, 27 (2016); DOI: 10.1140/epjp/i2016-16027-5
  2. Peculiar orientation of nematic liquid crystals on rubbed polyvinylimidazole, S. Frunza et al., J. Optoelectron. Adv. Mater., 7 (4), 2149-2157 (2005).

To the best of our knowledge the information provided here is accurate. The values provided are typical at the time of manufacture and may vary over time and from batch to batch. Products may have minor cosmetic differences (e.g. to the branding) compared to the photos on our website. All products are for laboratory and research and development use only.
