Order Code: B411
MSDS sheet


(excluding Taxes)


General Information

CAS number 1100243-35-3
Chemical formula C54H84Br2N2O4
Molecular weight 985.06 g/mol
Synonyms 4,9-Dibromo-2,7-bis(2-octyldodecyl)benzo[lmn][3,8]phenanthroline-1,3,6,8(2H,7H)-tetraone, NDI2OD-Br2
Classification / Family Benzophenanthroline, Organic semiconducting materials, Semiconductor Synthesis, Low band gap polymers, OFETs, OLED, Organic photovoltaics, Polymer solar cells


Product Details

Purity >98%
Melting point n.a.
Appearance Light yellow powder/crystals
4,9-Dibromo-2,7-bis(2-octyldodecyl)benzo[lmn][3,8]phenanthroline-1,3,6,8(2H,7H)-tetraone, pdi-2od-2br

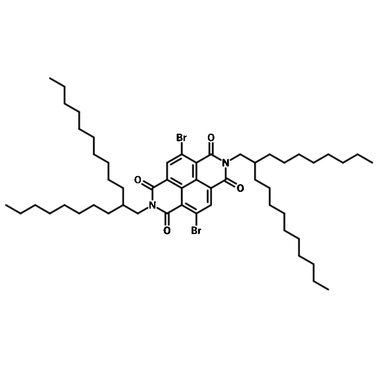

Chemical structure of 4,9-Dibromo-2,7-bis(2-octyldodecyl)benzo[lmn][3,8]phenanthroline-1,3,6,8(2H,7H)-tetraone, CAS No. 1100243-35-3.


With large branched side-chains, 4,9-Dibromo-2,7-bis(2-octyldodecyl)benzo[lmn][3,8]phenanthroline-1,3,6,8(2H,7H)-tetraone (also known as NDI2OD-Br2) adds solubility to the polymer semiconductors by functioning as repeating units in the back-bone. Also, polymers with NDI2OD-Br2 have the tendency to crystallise when they are built into films to boost device performance.

Literature and Reviews

  1. Improved All-Polymer Solar Cell Performance by Using Matched Polymer Acceptor, S. Shi et al., Adv. Funct. Mater., 26, 5669–5678 (2016); DOI: 10.1002/adfm.201601037.
  2. Naphthalenediimide Polymers with Finely Tuned in-Chain π-Conjugation. Electronic Structure, Film Microstructure, and Charge Transport Properties, T. Erdmann et al., Adv. Mater., 28, 9169–9174 (2016); DOI: 10.1002/adma.201602923.
