MeO-PhPACz
CAS Number 3046309-17-2
Self-Assembled Monolayers (SAMs), Perovskite Interface Materials, Charge Transport Layer Materials, Perovskite Materials,
Small Multilayer Molecule for High Efficiency Solar Cells
Hole transport or extraction layer for NFA-polymer solar cells and p-i-n perovskite solar cells, MeO-PhpPACz, CAS No. 3046309-17-2
Overview | Product Information | MSDS | Literature | Related Products | Technical Support
A fully aromatic carbazole-based self-assembled monolayer (SAM) serving as a hole-selective layer (HSL) in highly efficient inverted wide-band gap perovskite solar cells (PSCs). Featuring a methoxy substituted carbazolyl terminal, a rigid phenyl linker, and a phosphonic acid anchor, the rigid phenyl linker not only extends the conjugation of the carbazole terminal, but also promotes the formation of a dense and highly ordered HSL on substrates.
With extended conjugation and ordered packing, MeO-PhPACz facilitates perovskite interfacial interactions and the growth of uniform perovskite films. The high-quality SAM film formed at the interface effectively improves the hole extraction/transport efficiency by suppressing interfacial non-radiative recombination. MeO-PhPACz also demonstrates heightened UV absorption capabilities and inherent UV resistance, substantially enhancing PSC thermal stability and resistance to UV light illumination.
A mixed SAM of MeO-PhPACz and Me-4PACz enhances the binding energies with indium tin oxide (ITO) for improved hole transport efficiency. Inverted wide bandgap PSCs based on the mixed self-assembled monolayer exhibit superior photostability and thermal stability, maintaining 90% of their initial efficiency after 900 h of damp-heat testing and showing minimal decay after 1,000 h under 1 sun light soaking. A monolithic perovskite/silicon solar cell based on the mixed-self-assembled-monolayer of Me-4PACz and MeO-PhPACz demonstrates a remarkable efficiency of 28.07% with great reproducibility.
Serving as hole selective contact for organic solar cells and perovskite solar cells, MeO-PhPACz is an alternative to PEDOT:PSS with superior performance and the convenience of solution deposition at low concentration, i.e. 1 mM.
General Information
| CAS Number | 3046309-17-2 |
|---|---|
| Chemical Formula | C20H18NO5P |
| Molecular Weight | 383.33 g/mol |
| Absorption* | λmax 379 nm (in DMF) |
| Fluorescence | λem (n.a.) |
| HOMO/LUMO | HOMO = -5.61 eV, LUMO = -2.41 eV |
| Synonyms | MeO-PhpPACz, (4-(3,6-Dimethoxy-9H-carbazol-9-yl)phenyl)phosphonic acid, OMe-PhpPACz |
| Classification or Family | 7H-Dibenzo[c,g]carbazole derivatives, Self-assembly monolayers, Hole transport layer, Hole extraction layer, p-i-n Perovskite solar cells, Organic photovoltaics |
Product Details
| Purity | > 98% (HPLC) |
|---|---|
| Melting Point | N/A |
| Appearance | White to off-white powder |
Solution Processing Procedure
Typical processing solvents: Methanol, ethanol
Typical concentration: 2.0 mg/ml
Typical processing procedure: MeO-PhPACz solution in ethanol is deposited onto the centre of the substrate surface and spin-coated for 30 s at the speed of 3000 rpm, followed by annealing for 30 min at 100 ℃ (DOI: 10.1002/anie.202315281).

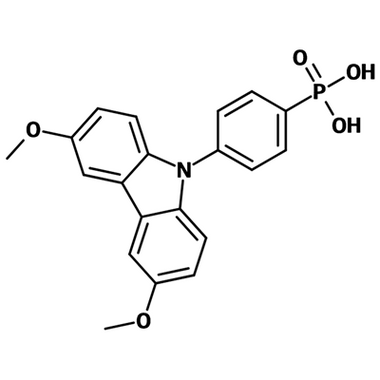

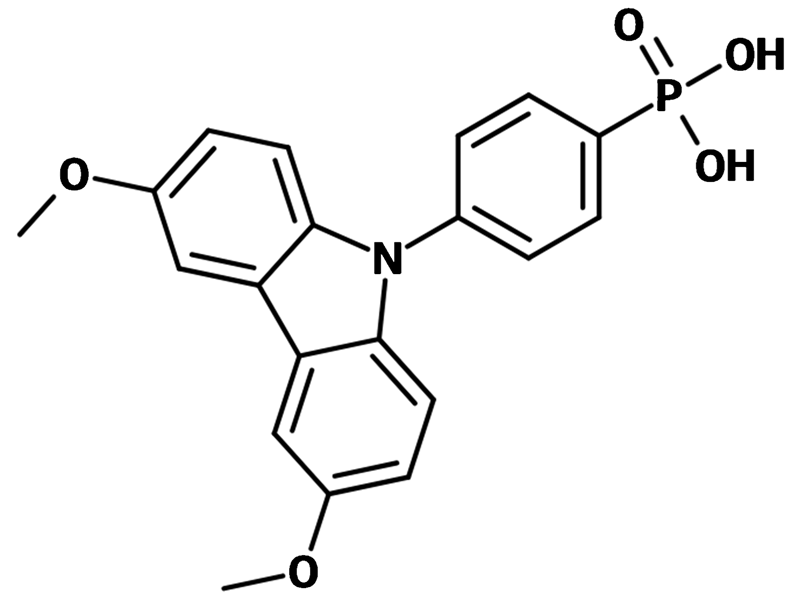

Chemical Structure
MSDS Documentation
MeO-PhPACz MSDS SheetLiterature and Reviews
- C. Li et al. (2024); Fully Aromatic Self-Assembled Hole-Selective Layer toward Efficient Inverted Wide-Bandgap Perovskite Solar Cells with Ultraviolet Resistance, Angew. Chem. Int. Ed., 63 (1), e202315281; DOI: 10.1002/anie.202315281.
- C. Li et al. (2024); Enhancing Efficiency of Industrially-Compatible Monolithic Perovskite/Silicon Tandem Solar Cells with Dually-Mixed Self-Assembled Monolayers, Adv. Funct. Mater., 34 (46), 2407805; DOI: 10.1002/adfm.202407805.
Licensed by Helmholtz-Zentrum Berlin für Materialien und Energie GmbH in Germany and Kaunas University of Technology in Lithuania.
