Product Code M2342A1-250mg
Price $475 ex. VAT

Quality assured

Expert support

Volume discounts

Worldwide shipping

Fast and secure


DTAF, HTL and EBL material for OLED devices

Paired with PO-T2T to generate yellow emission


DTAF, or 9,9-di[4-(di-p-tolyl)aminophenyl]fluorine, has a fluorine centred structure with two N,N-bis(p-tolyl))benzenamine attached to the fluorine. DTAF is electron rich, so is normally used as a hole transporting layer or electron blocking layer (with a LUMO of 1.84 eV) in OLED devices.

DTAF can also form exciplexes with other electron deficient materials, such as PO-T2T, generating yellow exciplex emission. Parallel all exciplex based white-light OLED (WOLED) blend layers of mCP/PO-T2T and DTAF/PO-T2T demonstrates excellent maximum current and power efficiencies (27.7 cd/A and 15.8 ml/W respectively) with CIE(0.29, 0.35) and CRI 70.6 [1].

General Information

CAS number 159526-57-5
Chemical formula C53H44N2
Molecular weight 708.93 g/mol
Absorption λmax 304 nm (in THF)
Fluorescence λem 431 nm(in THF)
HOMO/LUMO HOMO = 5.31 eV, LUMO = 1.84 eV [1] ET = 2.87 eV
Full chemical name 9,9-di[4-(di-p-tolyl)aminophenyl]fluorine
Synonyms 4,4′-(9H-fluorene-9,9-diyl)bis(N,N-di-p-tolylaniline), 4,4'-(9H-fluoren-9-ylidene)bis[N,N-bis(4-methylphenyl)-benzenamine
Classification / Family Triarylamine derivatives, TADF exciplex, Hole transporting layer (HTL) materials, Electron blockingt layer (EBL) materials, Sublimed materials

Product Details

Purity Sublimed >99.0% (HPLC)
Melting point mp = 374 °C (DSC)
Appearance White powder/crystals

*Sublimation is a technique used to obtain ultra pure-grade chemicals. For more details about sublimation, please refer to the Sublimed Materials.

Chemical Structure

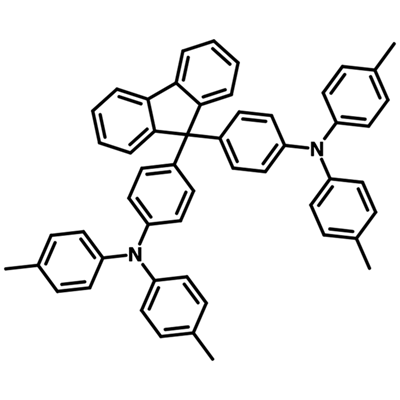

Chemical structure of DTAF, CAS 159526-57-5
Chemical structure of DTAF, CAS 159526-57-5

Device Structure

Device structure ITO/PEDOT:PSS (30 nm)/TPAC (20 nm)/mCP (15 nm)/mCP:PO-T2T (1:1, 20 nm)/PO-T2T (45 nm)/Liq (1 nm)/Al (1 nm)/MoO3(5 nm)/DTAF (20 nm)/DTAF:PO-T2T (1:1, 20 nm)/PO-T2T(50 nm)/Liq (0.5 nm)/Al (100 nm). [1]
Colour white light emitting device White
Max. Current Efficiency 27.7 cd/A
Max. EQE 11.6 %
Max. Power Efficiency 15.8 Im/W
Device structure ITO/PEDOT:PSS (30 nm)/DTAF (25 nm)/12 wt% FIrpic:CNBzIm (25 nm)/TPBI (50 nm)/LiF (0.5 nm)/Al (100 nm) [2]
Colour blue light emitting device Blue
Max. Current Efficiency 29.0 cd/A
Max. EQE 12.7%
Max. Power Efficiency 30.5 Im/W
Device structure ITO/PEDOT:PSS (30 nm)/DTAF (25 nm)/10 wt%(PPy)2Ir(acac):CNBzIm (25 nm)/TPBI (50 nm)/LiF (0.5 nm)/Al (100 nm) [2]
Colour green light emitting device Green
Max. Current Efficiency 66.8 cd/A
Max. EQE 17.8%
Max. Power Efficiency 59.4 Im/W
Device structure ITO/PEDOT:PSS (30 nm)/DTAF (25 nm)/10 wt% Os(bpftz)2(PPh2Me)2:CNBzIm (25 nm)/TPBI (50 nm)/LiF (0.5 nm)/Al (100 nm) [2]
Colour red light emitting device Red
Max. Current Efficiency 33.8 cd/A
Max. EQE 19.1%
Max. Power Efficiency 27 Im/W
Device structure ITO/PEDOT:PSS (30 nm)/DTAF (25 nm)/12 wt% FIrpic:0.3 wt% Os(bpftz)2(PPh2Me)2:CNBzIm (25 nm)/TPBI (50 nm)/LiF (0.5 nm)/Al (100 nm) [2]
Colour white light emitting device White
Max. Current Efficiency 35.0 cd/A
Max. EQE 15.7%
Max. Power Efficiency 36.6 Im/W
Device structure ITO/PEDOT:PSS (30 nm)/DTAF (25 nm)/10 wt% (pbi)2Ir(acac):CPhBzIm (25 nm)/TPBI (50 nm)/LiF (0.5 nm)/Al (100 nm) [3]
Colour yellow light emitting device Greenish-Yellow
Max. Current Efficiency 62.0 cd/A
Max. EQE 19.2%
Max. Power Efficiency 62.0 Im/W

Pricing

Grade Order Code Quantity Price
Sublimed(>99.0% purity) M2342A1 250 mg £380
Sublimed(>99.0% purity) M2342A1 500 mg £620
Sublimed(>99.0% purity) M2342A1 1 g £1000

MSDS Documentation

DTAF MSDSDTAF MSDS sheet

Literature and Reviews

  1. The First Tandem, All-exciplex-based WOLED, W. Huang et al., Sci. Report, 4, 5161 (2014); DOI: 10.1038/srep05161.
  2. A carbazole–phenylbenzimidazole hybrid bipolar universal host for high efficiency RGB and white PhOLEDs with high chromatic stability, W. Hung et al., J. Mater. Chem., 21, 19249 (2011); DOI: 10.1039/c1jm14029a.
  3. A new benzimidazole/carbazole hybrid bipolar material for highly efficient deep-blue electrofluorescence, yellow–green electrophosphorescence, and two-color-based white OLEDs, W. Hung et al., J. Mater. Chem., 20, 10113–10119 (2010); DOI: 10.1039/c0jm02143a.
  4. Exciplex: An Intermolecular Charge-Transfer Approach for TADF, M. Sarma et al., ACS Appl. Mater. Interfaces, 10 (23), 19279–19304 (2018); DOI: 10.1021/acsami.7b18318..
