Product Code M2509A1-250mg
Price $1,080

MR-TADF Deep Blue Dopant

Oxygen-bridged triaryl-boron MR-TADF emitter, 10-(2,12-Di-tert-butyl-5,9-dioxa-13b-boranaphtho[3,2,1-de]anthracen-7-yl)-10H-spiro[acridine-9,9'-fluorene], CAS No. 2643306-28-7, Sublimed ≥99.0%


Specifications | MSDS | Literature and Reviews | Related Products


TDBA-SAF is deep blue multiple resonance thermally activated delayed fluorescence (MR-TADF) emitter with oxygen-bridged triaryl-boron core (DOBNA) as electron acceptor unit and spiro[acridine-9,9'-fluorene] as the electron donor unit. Due to the rigid donor and acceptor units, TDBA-SAF exhibits narrow emission spectrum with the FWHM of less than 65 nm. The extended molecular structure along the transition dipole moment direction results in a highly horizontal emitting dipole ratio over 80%. Deep blue TADF-OLED based on TDBA-SAF as the dopant and DPEPO as the host exhibits a maximum EQE of 28.2% and CIE coordinates of (0.142, 0.090).

Also, TDBA-SAF can be employed as the sensitizer in hyperfluorescence devices. Deep blue hyperfluorescence TADF (HF-TADF) device based on Tp-DABNA as the emitter and TDBA-SAF as the sensitizer demonstrates great device performance with an EQEmax of 28.7 % and mitigated efficiency roll-offs.

General Information


CAS Number 2643306-28-7
Full Name 10-(2,12-Di-tert-butyl-5,9-dioxa-13b-boranaphtho[3,2,1-de]anthracen-7-yl)-10H-spiro[acridine-9,9'-fluorene]
Chemical Formula C51H42BNO2
Molecular Weight 711.70 g/mol
Absorption N/A
Photoluminescence 456 nm (in film)
HOMO/LUMO HOMO = - 5.7 eV, LUMO = - 2.4 eV
Classification/Family Acridine derivatives, Oxygen-bridged boron (DOBNA) derivatives, Deep blue emitter, MR-TADF Dopant

Product Details


Purity Sublimed ≥ 99%
Melting Point Td = 400 °C
Appearance White powder/crystals

Chemical Structure

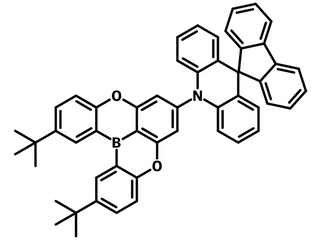

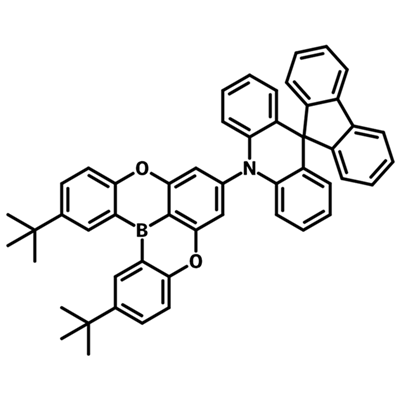

Chemical structure of TDBA-SAF
Chemical structure of TDBA-SAF, CAS: 2643306-28-7

Device Structure(s)


Device structure ITO (70 nm)/ MoO3 (1 nm)/TAPC (40 nm)/TCTA (10 nm)/mCP (10 nm)/DPEPO:20 wt.% TDBA-SAF (25 nm)/DPEPO (5n m)/Bphen (30 nm)/LiF (0.7nm)/Al (100 nm) [1]
Colour blue light emitting device Blue light emission at 456 nm
FWHM 55 nm
CIE coordinates (0.142, 0.090)
Max Current Efficiency 23.7 cd/A
Max Power Efficiency 19.9 lm/W
Max EQE 28.2%


Device structure ITO (70 nm)/MoO3 (1 nm)/TAPC (30 nm)/TCTA (10 nm)/mCBP (10 nm)/mCBP:DPEPO:TDBA-SAF:t-DABNA (50:50:20:5 wt.%, 25 nm)/DPEPO (5 nm)/TmPyPB (40 nm)/LiF (1 nm)/Al (100 nm) [2]
Colour blue light emitting device Blue light emission at 466 nm
FWHM 30 nm
CIE coordinates (0.13, 0.13)
Max Current Efficiency 25.8 cd/A
Max Power Efficiency 22.6 lm/W
Max EQE 25.5%

MSDS Documentation


TDBA-SAF MSDS sheetTDBA-SAF MSDS sheet

Literature and Reviews


  1. H. Lim et al. (2020); Highly Efficient Deep-Blue OLEDs using a TADF Emitter with a Narrow Emission Spectrum and High Horizontal Emitting Dipole Ratio, Adv. Mater., 32 (47), 2004083 (2020); DOI: 10.1002/adma.202004083.
  2. H. Mubarok et al. (2023); Triptycene-Fused Sterically Shielded Multi-Resonance TADF Emitter Enables High-Efficiency Deep Blue OLEDs with Reduced Dexter Energy Transfer, Angew. Chem. Int. Ed., 62 (32), e202306879; DOI: 10.1002/anie.202306879.
  3. K. Naveen et al. (2023); Neoteric Advances in Oxygen Bridged Triaryl Boron-based Delayed Fluorescent Materials for Organic Light Emitting Diodes, Chem. Rec., 23 (11), e202300208; DOI: 10.1002/tcr.202300208.
