Product Code M2294A1-250mg
Price $413 ex. VAT

Quality assured

Expert support

Volume discounts

Worldwide shipping

Fast and secure


SimCP, phosphorescent host for blue, green and white emitting OLED devices

Posesses the best bipolarity and current efficiency compared to mCP and SimCP2


SimCP, 3,5-bis(9-carbazolyl) triphenylsilane, is an arylsilane derivative with an mCP structure attached. SimCP shows a higher glass transition temperature (Tg = 101 °C) than the more commonly used host material, mCP.

SimCP is widely used as a phosphorescent host for blue, green and white emitting OLED devices. SimCP hosts possess the best bipolarity when compared to mCP or SimCP2; the best current efficiency should be expected when SimCP is used as host, especially when it is solution processed to give a homogeneous film of the host-guest blend.

General Information

CAS number 850221-63-5
Chemical formula C48H34N2Si
Molecular weight 666.88 g/mol
Absorption* λmax 345 nm (THF)
Photoluminescence λem 446 nm (446)
HOMO/LUMO HOMO = 6.1 eV, LUMO = 2.5 eV; ET = 3.02 eV [1]
Chemical name 3,5-Bis(9-carbazolyl) tetraphenylsilane
Synonyms
  • 9,9'-(5-(triphenylsilyl)-1,3-phenylene)bis(9H-carbazole)
  • [3,5-Di(9H-carbazol-9-yl)phenyl]triphenylsilane
Classification / Family Arylsilane derivatives, Phosphorescent host materials, Sublimed materials, Semiconducting small molecules

* Measurable with an optical spectrometer, see our spectrometer application notes.

Product Details

Purity Sublimed* >99.0% (HPLC)
Melting point Tg = 101°C (lit.)
Appearance White powder/crystals

* Sublimation is a technique used to obtain ultra pure-grade chemicals, see sublimed materials.

Chemical Structure

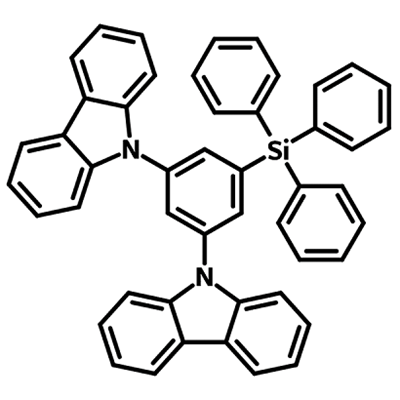

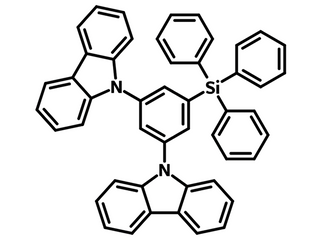

SimCP chemical structure
Chemical structure of bis[3,5-di(9H -carbazol-9-yl)phenyl]diphenylsilane (SimCP)

Device Structure(s)

Device structure ITO/NPB (30 nm)/SimCP:FIrpic (30 nm, 7%)/TPBi (30 nm)/LiF/Al [2]
Colour blue light emitting device Blue
Max. EQE 14.4
Max. Power Efficiency 11.9 Im/W
Max. Luminance 39,500 cd/m2
Device structure ITO/TAPC/SimCP:6 wt% Ir(tfmppy)2(tpip)/TPBi/LiF/Al [3]
Colour green light emitting device Green
Max. EQE 23.6%
Max. Current Efficiency 47.1 cd/A
Max. Power Efficiency 15.3 Im/W
Max. Luminance 38, 674 cd/m2

Pricing

Grade Order Code Quantity Price
Sublimed (>99.0% purity) M2294A1 250 mg £330
Sublimed (>99.0% purity) M2294A1 500 mg £520
Sublimed (>99.0% purity) M2294A1 1 g £850

MSDS Documentation

SimCP MSDSSimCP MSDS sheet

Literature and Reviews

  1. High-efficiency blue organic light-emitting diodes using a 3,5-di(9H-carbazol-9-yl)tetraphenylsilane host via a solution-process, J.-H. Jou et al., J. Mater. Chem., 20, 8411–8416 (2010); DOI: 10.1039/C0JM01163K.
  2. New Dopant and Host Materials for Blue-Light-Emitting Phosphorescent Organic Electroluminescent Devices, S.-J. Yeh et al., Adv. Mater., 17 (3), 285-289 (2005); DOI: 10.1002/adma.200401373.
  3. Green and Bluish-green Phosphorescent OLEDs with High Efficiency at High Brightness, Chinese J. Luminescence, 34 (1), 92-97 (2013).
  4. Photoluminescence characteristics of blue phosphorescent Ir3+-compounds FIrpic and FIrN4 doped in mCP and SimCP, T. Tsuboi et al., Opt. Mater., 31, 366-371 (2008); DOI: 0.1016/j.optmat.2008.05.010..
