CBP - 4,4′-Bis(N-carbazolyl)-1,1′-biphenyl

Order Code: M392
MSDS sheet

Price

(excluding Taxes)

£48.00


Pricing

 Grade Order Code Quantity Price
Unsublimed (>99.6% purity) M392 1 g £48
Sublimed (>99.6% purity) M391 1 g £99
Unsublimed (>99.6% purity) M392 5 g £137
Sublimed (>99.6% purity) M391 5 g £339

General Information

CAS number 58328-31-7
Chemical formula C36H24N2
Molecular weight 484.59 g/mol
HOMO/LUMO HOMO 6.0 eV, LUMO 2.9 eV
Synonyms CBP, 4,4′-Bis(9-carbazolyl)-1,1′-biphenyl, 4,4-N,N′-Dicarbazole-1,1′-biphenyl, DCBP
Classification / Family

Carbazole derivatives, Hole-injection layer materials, Hole transport layer materials, Hole blocking layer materials, Phosphorescent host materials

Light-Emitting Diodes, Organic electronics, Sublimed materials



Product Details

Purity

Sublimed* > 99.6%

Unsublimed > 99.6%

Melting point 281-285 (lit.) °C
Colour White powder

 *Sublimation is a technique used to obtain ultra pure grade chemicals to get rid of mainly trace metals and inorganic impurities. Sublimation happens under certain pressure for chemicals only goes through two physical stages from a solid sate to vapour (gas) and then the vapour condensed to a solid state on a cool surface (referred to as cold finger). The most typical examples of sublimation are iodine and dry ice. For more details about sublimation, please refer to sublimed materials for OLEDs and perovskites and our collection of sublimed materials.



Chemical Structure



 CBP chemical structure

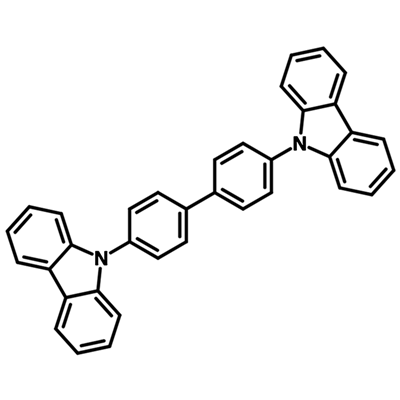

Chemical Structure of 4,4′-Bis(N-carbazolyl)-1,1′-biphenyl (CBP); CAS No. 58328-31-7; Chemical Formula C36H24N2



Applications

4,4′-Bis(N-carbazolyl)-1,1′-biphenyl (CBP), is one of the most widely used host materials for efficient phosphorescent organic light-emitting diodes with high hole mobility due to its electron rich property from two carbazolyl units.

It has been demonstrated that CBP can efficiently host green, yellow and red phosphorescent emitters with triplet energies smaller than that of CBP (ET = 2.6 eV) [1].

Device structure

ITO/NPD/5%BCzVBi:CBP/CBP/4%PQIr*:CBP/5%Ir(ppy)3:CBP/CBP/5%BCzVBi:CBP/

LiF/Al [2]

Colour  White  white
Max EQE 11.0 ± 0.3%
Max. Power Efficiency 22.1 ± 0.3lm W1



Device structure ITO /TAPC/(1wt% DPB:99wt%tri-PXZ-TRZ*):CBP (15:85)/LiF/Al [6]
Colour Red  red
Max EQE 17.5%
Max. Power Efficiency 28lm W1



Device structure  ITO/MO3 (1 nm)/CBP (35 nm)/8 wt% Ir(ppy)2(acac):CBP/TPBi (65 nm)/LiF/Al (100 nm) [7]
Colour Green  green
EQE@100  cd/m2 23.4
Current Efficiency@100

cd/m2

81 cd/A
Powder Efficiency@100

cd/m2

78.0 lm W1



Device structure ITO/MoO3 (3 nm)/CBP: 20 wt% Ir(ppy)3: 4 wt% FIrpic (30 nm)/TAZ (50 nm) [8]
Color Green  green
Max. Luminance 27,524 cd/m2
Max. Current Efficiency 71.2 cd/A



Device structure ITO/MoOx (2 nm)/m-MTDATA: MoOx (30 nm, 15 wt.%)/m-MTDATA
(10 nm)/Ir(ppz)
(10 nm)/CBP:PO-01* (3 nm, 6 wt.%)/Ir(ppz)3
(1 nm)/DBFDPOPhCz*:FIrpic (10 nm,10 wt.%)/Bphen (36 nm)/LiF
(1 nm)/Al [9]
Color White  white
Max. EQE 12.2%
Max. Current Efficiency 42.4 cd/A
Max. Power Efficiency 47.6 lm W1



Device structure ITO/NPB (30 nm)/CBP:8 wt% (t-bt)2Ir(acac)* (15 nm)/
BPhen(35 nm)/LiF (1 nm)/CoPc:C60 (4:1) (5 nm)/
MoO(5 nm)/NPB(30 nm)/CBP:8 wt% (t-bt)2Ir(acac)* (15 nm)/
BPhen (35 nm)/Mg:Ag (100 nm) [10]
Color    Yellow  yellow
Max. EQE 16.78%
Max. Luminance  42,236 cd/m2
Max. Current Efficiency 50.2 cd/A
Max. Power Efficiency 12.9 lm W1



Device structure                ITO/NPD* (40 nm)/9%-Ir(piq)3:CBP (20 nm)/BPhen (50 nm)/KF (1 nm)/Al [11]
Color Red  red
Max. Luminance  11,000 cd/m2
Max EQE  10.3%
Max. Powder Efficiency    8.0 lm W1



Device structure                                            ITO/0.4 wt% F4TCNQ doped α NPD (30 nm)/ 5 wt% Ir (ppy)3 doped CBP (50 nm)/BPhen (30 nm)/20 wt% TCNQ mixed BPhen (1.5 nm)/Al [12]
Color Green  green
Luminance@15 V 1,320 cd/m2
Power Efficiency@14 V 56.6 lm W1
Current Efficiency@14 V 23.17 cd/A



Device structure                                       ITO/F4TCNQ (3 nm)/MeO-Spiro-TPD (27 nm)/CBP + BCzVbi* (50 nm)/BPhen (10 nm)/TCNQ mixed BPhen (1.5 nm)/Al [13]
Color                                  Red  red
Luminance@ 10 mA/cm2 1,790 cd/m2
Power Efficiency@ 10 mA/cm2      4.65 lm W1
Current Efficiency@ 10 mA/cm2 18.0 cd/A

*For chemical structure information please refer to the cited references

Characterisations

1H NMR 4,4'-bis(n-carbazolyl)-1,1'-biphenyl CBP

1H NMR of 4,4′-Bis(N-carbazolyl)-1,1′-biphenyl (CBP) in CDCl3.

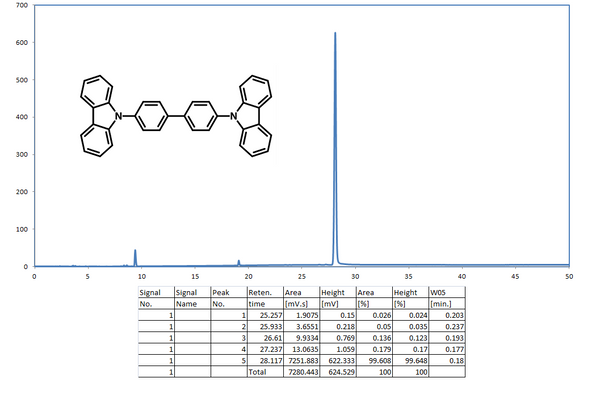

HPLC trace of 4,4′-Bis(N-carbazolyl)-1,1′-biphenyl (CBP)

HPLC trace of 4,4′-Bis(N-carbazolyl)-1,1′-biphenyl (CBP).
