PXZ-TRZ

pxz-trz, 1411910-25-2
Product Code M2268A1
Price £180.00

PXZ-TRZ, namely phenoxazine-2,4,6-triphenyl-1,3,5-triazine, has a bipolar structure with phenoxazine (PXZ) as an electron donor unit and 2,4,6-triphenyl-1,3,5-triazine (TRZ) as an electron acceptor unit.

PXZ-TRZ is a green emitter and is mainly used as a dopant or assistant dopant material in highly efficient TADF-OLED devices, but can also be used as a host or cohost material. The orientational packing order of a linear-shaped dopant such as PXZ-TRZ can be selectively controlled in a randomly oriented cohost matrix with mCBP by varying the temperature during deposition of the thin films.

General Information

CAS number 1411910-25-2
Chemical formula C33H22N4O
Molecular weight 490.55 g/mol
Absorption λmax 420 nm (in Toluene)
Fluorescene λem 545 nm (in Toluene)
HOMO/LUMO HOMO = 5.5 eV, LUMO = 3.1 eV [1]
Full chemical name 10-(4-(4,6-diphenyl-1,3,5-triazin-2-yl)phenyl)-10H-phenoxazine
Synonyms Phenoxazine-2,4,6-triphenyl-1,3,5-triazine
Classification / Family Triazine derivatives, TADF green emitters, TADF host materials, Sublimed materials

Product Details

Purity Sublimed >99.0% (HPLC)
Melting point TGA: >300 °C(0.5% weight loss)
Appearance Yellow powder/crystals

*Sublimation is a technique used to obtain ultra pure-grade chemicals. For more details about sublimation, please refer to the sublimed materials for OLED devices page.

Chemical Structure

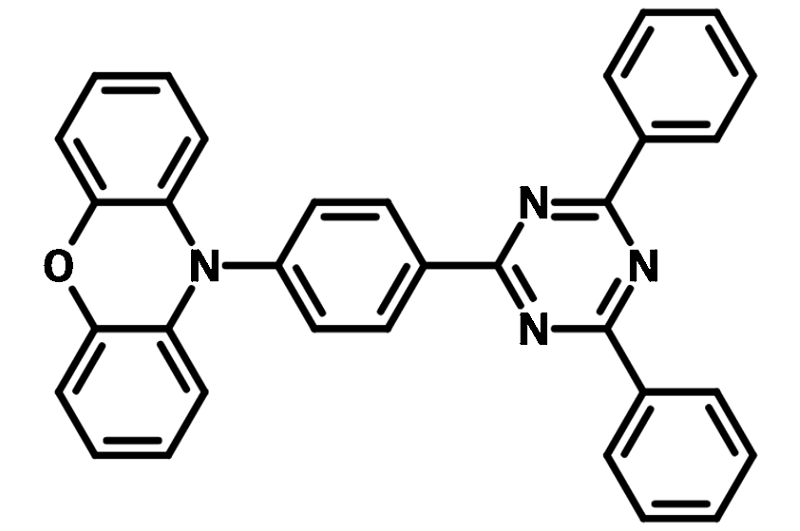

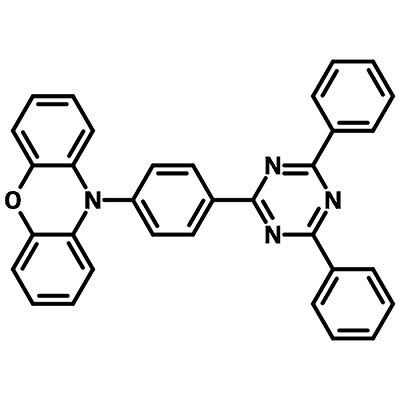

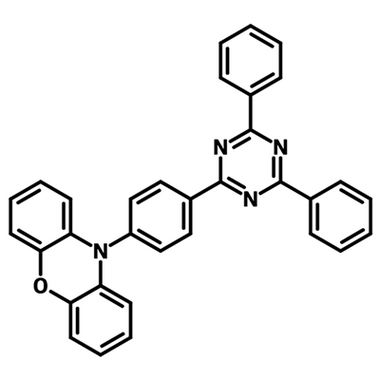

PXZ-TRZ chemical structure, CAS 1411910-25-2
Chemical Structure of 10-(4-(4,6-diphenyl-1,3,5-triazin-2-yl)phenyl)-10H-phenoxazine (PXZ-TRZ), CAS 1411910-25-2.

Device Structure(s)

Device structure ITO/TAPC (35 nm)/1 wt%-TBRb:25 wt%-PXZ-TRZ:mCBP (30 nm)/T2T (10 nm)/Alq3 (55 nm)/LiF (0.8 nm)/Al (100 nm) [2]
Colour Yellow Yellow device structure
Max. Current Efficiency 60 cd/A
Max. EQE 18.0%
Max. Power Efficiency 58 Im/W



Device structure ITO/HAT-CN (10 nm)/TAPC (40 nm)/TCTA (10 nm)/ SF4-TPE:40 wt% PXZ-TRZ:1 wt% TBRb (20 nm)/TmPyPB (60 nm)/Liq (2 nm)/Al (100 nm) [3]
Colour Yellow Yellow device structure
Max. EQE 23.0 %
Max. Power Efficiency 60.3 Im/W



Device structure ITO/HAT-CN (10 nm)/TAPC (40 nm)/TCTA (10 nm)/ SF4-TPE:20 wt% PXZ-TRZ:1 wt% TBRb (20 nm)/TmPyPB (60 nm)/Liq (2 nm)/Al (100 nm) [3]
Colour Yellow Yellow device structure
Max. EQE 24.7 %
Max. Power Efficiency 61.6 Im/W



Device structure ITO/HAT-CN (10 nm)/TAPC (40 nm)/TCTA (10 nm)/ SF4-TPE:20 wt% PXZ-TRZ:1 wt% TBRb (20 nm)/TmPyPB (60 nm)/Liq (2 nm)/Al (100 nm) [3]
Colour Yellow Yellow device structure
Max. EQE 24.7 %
Max. Power Efficiency 61.6 Im/W



Device structure ITO/HAT-CN (10 nm)/TAPC (40 nm)/TCTA (10 nm)/SF4-TPE: 30% PXZ-TRZ:1 wt% TBRb (17.5 nm)/SF4-TPE: 40 wt% 4P-NPD (2.5 nm)/TmPyPB (45 nm)/Liq (2 nm)/Al (100 nm) [3]
Colour White White device structure
Max. EQE 24.5 %
Max. Power Efficiency 65.4 Im/W

Pricing

Grade Order Code Quantity Price
Sublimed(>99.0% purity) M2268A1 100 mg £180.00
Sublimed(>99.0% purity) M2268A1 250 mg £360.00
Sublimed(>99.0% purity) M2268A1 500 mg £600.00
Sublimed(>99.0% purity) M2268A1 1 g £1000.00

MSDS Documentation

PXZ-TRZ MSDSPXZ-TRZ MSDS sheet

Literature and Reviews

  1. Efficient green thermally activated delayed fluorescence (TADF) from a phenoxazine–triphenyltriazine (PXZ–TRZ) derivative, H. Tanaka et al., Chem. Commun., 48, 11392-11394 (2012); DOI: 10.1039/C2CC36237F.
  2. High-efficiency organic light-emitting diodes with fluorescent emitters, H. Nakanotani et al., Nature Commun., 5, 4016 (2014); DOI: 10.1038/ncomms5016.
  3. All-Fluorescence White Organic Light-Emitting Diodes Exceeding 20% EQEs by Rational Manipulation of Singlet and Triplet Excitons, X. Tang et al., Adv. Funct. Mater., 1910633 (2020); DOI: 10.1002/adfm.201910633.
  4. Selectively Controlled Orientational Order in Linear-Shaped Thermally Activated Delayed Fluorescent Dopants, T. Komino et al., Chem. Mater., 26, 3665−3671 (2014); DOI: 10.1021/cm500802p.

To the best of our knowledge the information provided here is accurate. However, Ossila assume no liability for the accuracy of this page. The values provided are typical at the time of manufacture and may vary over time and from batch to batch. All products are for laboratory and research and development use only, and may not be used for any other purpose including health care, pharmaceuticals, cosmetics, food or commercial applications.
