Product Code M641-100mg
Price $325 ex. VAT

Quality assured

Expert support

Volume discounts

Worldwide shipping

Fast and secure

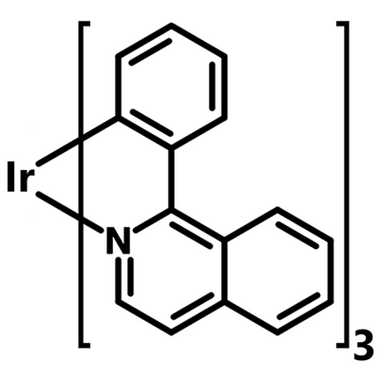

Ir(piq)3, a deep red phosphorescent dopant material for OLED devices

High purity and available online for priority dispatch


Tris(1-phenylisoquinoline)iridium(III), Ir(piq)3 is a deep red phosphorescent dopant material.

Due to their high electron affinities, quinoline/isoquinoline-based compounds have received considerable attention in optoelectronic materials. With greater π-electronic conjugation in the isoquinoline ring, the energy of the lowest unoccupied molecular orbital (LUMO) is significantly lowered, and the energy gap is reduced.

Ir(piq)3, together with Ir(piq)2acac, are the ones that have been most studied in theisoquinoline iridium complex family. The 'piq' unit of the ligand part can partially suppress the triplet-triplet annihilation and show short phosphorescent lifetimes.

General Information

CAS number 435293-93-9
Chemical formula C45H30IrN3
Molecular weight 804.96 g/mol
Absorption* λmax 324 nm in THF
Fluorescence λem 615 nm in THF
HOMO/LUMO HOMO 5.1 eV, LUMO 3.1 eV [1]
Synonyms
  • Tris(1-phenylisoquinoline)iridium(III)
  • Tris[1-phenylisoquinoline-C2,N]iridium(III)
  • Tris[1-phenylisoquinolinato-C2,N]iridium(III)
Classification / Family Organometallic iridium complex, Red emitter, Phosphorescence dopant OLEDs, Sublimed materials

* Measurable with an optical spectrometer, see our spectrometer application notes.

Product Details

Purity

>99.0% (sublimed*)

>98.0% (unsublimed)

Melting point 454 °C
Appearance Dark-red powder

* Sublimation is a technique used to obtain ultra pure-grade chemicals, see sublimed materials.

Chemical Structure

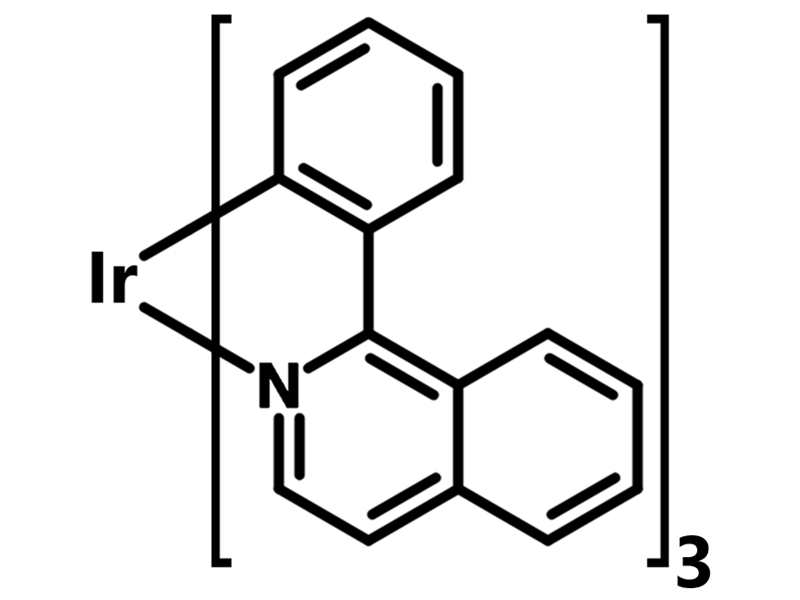

Chemcial structrure of Ir(piq)3
Tris(1-phenylisoquinoline)iridium(III), Ir(piq)

Device Structure(s)

Device structure ITO/NPD* (40 nm)/9%-Ir(piq)3:CBP (20 nm)/BPhen (50 nm)/KF (1 nm)/Al [2]
Colour Red red light emitting device
Max. Luminance 11,000 cd/m2
Max EQE 10.3%
Max. Power Efficiency 8.0 lm W1
Device structure ITO/PEDOT:PSS/BlueJ*:PVK:Ir(pbpp)3*:Ir(piq)3/BCP/Li:Al [3]
Colour White white light emitting device
Max. Luminance 905 cd/m2
Max EQE 3.2%
Max. Current Efficiency 12.52 cd/A
Device structure ITO/NPB (40 nm)/Bebq2:1 wt% Ir(piq)3 (30 nm)/Bebq2 (20 nm)/LiF (0.5 nm)/Al (100 nm)[6]
Colour Red red light emitting device
Max. Current Efficiency 12.71 cd/A
Max. Power Efficiency 16.02 lm W1
Device structure ITO/TAPC (40 nm)/TCTA:Ir(piq)3 2 wt % (1 nm)/TCTA 46 wt %:BP4mPy 46 wt %: FIrpic 8 wt % (28 nm)/BP4mPy:Ir(piq)3 3 wt % (1 nm)/BP4mPy (40 nm)/LiF (0.8 nm)/Al (150 nm) [7]
Colour White white light emitting device
Max. Luminance 19,007 cd/m2
Max EQE 11.3%
Max. Current Efficiency 15.6 cd/A
Max. Power Efficiency 16.3 lm W1
Device structure ITO/TAPC (40 nm)/ TCTA 46 wt %:BP4mPy 46 wt %:Ir(piq)3 8 wt % (30 nm)/ BP4mPy (40 nm)/LiF (0.8 nm)/Al (150 nm) [7]
Colour Red red light emitting device
Max. Luminance 14,879 cd/m2
Max EQE 8.8%
Max. Current Efficiency 5.6 cd/A
Max. Power Efficiency 5.4 lm W1
Device structure ITO/MeO-TPD: F4-TCNQ (100 nm, 4 %)/NPB (15 nm)/TCTA (5 nm)/TCTA: Ir (ppy)3 : Ir(piq)3 (25 nm, 1:9:0.8 %)/MADN: DSA-ph (20 nm, 1 %)/Bepp2 (250 nm)/LiF (1 nm)/Al (200 nm) [8]
Colour White white light emitting device
Max. Current Efficiency 8.4 cd/A
Max. Power Efficiency 13.1 lm W1
Max. CRI 90
Device structure ITO(150 nm)/NPB(70 nm)/mCP:Firpic-8.0%:Ir(ppy)3-0.5%:Ir(piq)3-0.5%(30 nm)/TPBi(30 nm)/Liq(2 nm)/Al(120 nm) [9]
Colour White white light emitting device
Max. Luminance 37,810 cd/m2
Current Efficiency@1000

cd/m2

48.10 cd/A
Device structure ITO/PEDOT:PSS (40 nm)/NPB (15 nm)/ TCTA: 4 wt.% Ir(piq)3 (3.5 nm)/TCTA: 4 wt.% Ir(bt)2(acac) (4 nm)/TCTA: 25 wt.% TmPyPb*: 2 wt. % 4P-NPD* (7 nm)/TmPyPb (4 nm)/TmPyPb: 5 wt.% Ir(ppy)2(acac) (3 nm)/TmPyPb (15 nm)/TmPyPb: 4 wt.% Cs2CO3 (35 nm)/ Cs2CO3/Al [10]
Colour White white light emitting device
EQE@1000 cd/m2 14.2%
Current Efficiency@1000

cd/m2

26 cd/A
Power Efficiency@1000 cd/m2 21.9 lm W1

*For chemical structure information, please refer to the cited references.

Characterisation

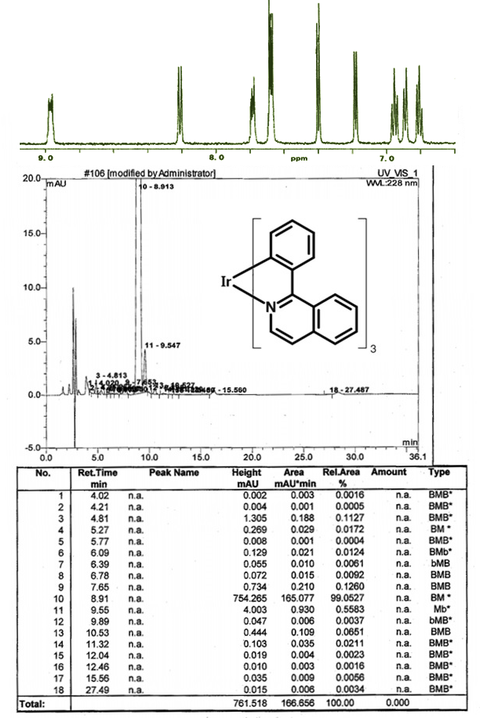

nmr-hplc-irpiq3
HPLC trace of tris(1-phenylisoquinoline)iridium , Ir(piq)3

Pricing

Grade Order Code Quantity Price
Sublimed (>99% purity) M641 100 mg £260
Unsublimed (>98% purity) M642 250 mg £330
Sublimed (>99% purity) M641 250 mg £520
Unsublimed (>98% purity) M642 500 mg £600
Sublimed (>99% purity) M641 500 mg £950
Unsublimed (>98% purity) M642 1 g £1050
Sublimed (>99% purity) M641 1 g £1600

MSDS Documentation

Ir(piq)3 MSDSIr(piq)3 MSDS sheet

Literature and Reviews

  1. Efficient simple structure red phosphorescent organic light emitting devices with narrow band-gap fluorescent host, T. J. Park et al., Appl. Phys. Lett., 92, 113308 (2008); doi: 10.1063/1.2896641.
  2. Homoleptic Cyclometalated Iridium Complexes with Highly Efficient Red Phosphorescence and Application to Organic Light-Emitting Diode, A. Tsuboyama et al., J. Am. Chem. Soc., 125, 12971-12979 (2003). DOI: 10.1021/ja034732d.
  3. White-Light-Emitting Diodes Based on Iridium Complexes via Efficient Energy Transfer from a Conjugated Polymer, T-H. Kim et al., Adv. Funct. Mater., 16, 611–617 (2006). DOI: 10.1002/adfm.200500621.
  4. Efficient multiple triplet quantum well structures in organic light-emitting devices, T. J. Park et al., Appl. Phys. Lett., 95, 103303 (2009); doi: 10.1063/1.3224190.
  5. Color stable white phosphorescent organic light emitting diodes with red emissive electron transport layer, J. W. Kim et al., Appl. Phys. Lett., 117, 245503 (2015); doi: 10.1063/1.4923048.
  6. Highly Efficient Simple-Structure Red Phosphorescent OLEDs with an Extremely Low Doping Technology, W. S. Jeon et al., J. Info. Display, 10 (2), 87-91, (2009).
  7. Efficient red, green, blue and white organic light-emitting diodes with same exciplex host, C-H. Chang et al., Jpn. J. Appl. Phys. 55, 03CD02 (2016); http://doi.org/10.7567/JJAP.55.03CD02.
  8. Very-High Color Rendering Index Hybrid White Organic Light-Emitting Diodes with Double Emitting Nanolayers, B. Liu et al., Nano-Micro Lett., 6(4):335–339 (2014); DOI 10.1007/s40820-014-0006-4.
  9. Study of Sequential Dexter Energy Transfer in High Efficient Phosphorescent White Organic Light-Emitting Diodes with Single Emissive Layer, J. Kim et al., Sci Rep., 4: 7009 (2014); doi: 10.1038/srep07009.
  10. A white organic light-emitting diode with ultra-high color rendering index, high efficiency, and extremely low efficiency roll-off, N. Sun et al., Appl. Phys. Lett. 105, 013303 (2014); http://dx.doi.org/10.1063/1.4890217.

To the best of our knowledge the information provided here is accurate. The values provided are typical at the time of manufacture and may vary over time and from batch to batch. Products may have minor cosmetic differences (e.g. to the branding) compared to the photos on our website. All products are for laboratory and research and development use only.
