PBDTT-DPP

Order Code: M1401
MSDS sheet

Price

(excluding Taxes)

£268.70


Pricing

Batch Quantity Price
M1401 100 mg £268.7
M1401 250 mg £537.5
M1401 500 mg £967.6
M1401 1 g £1741.5



General Information

Full name Poly{2,6′-4,8-di(5-ethylhexylthienyl)benzo[1,2-b;3,4-b]dithiophene-alt-5,5'-dibutyloctyl-3,6-bis(5-thiophen-2-yl)pyrrolo[3,4-c]pyrrole-1,4-dione}
Synonyms PBDT-DPP
Chemical formula (C72H94N2O2S6)n
CAS number 1380582-98-8
HOMO / LUMO HOMO = -5.30 eV, LUMO = -3.63 eV [1]
Classification / Family Organic semiconducting materials, Low band gap polymers, Organic photovoltaics, Polymer solar cells, Tandem solar cells.
Solubility Soluble in chloroform, chlorobenzene, dichlorobenzene

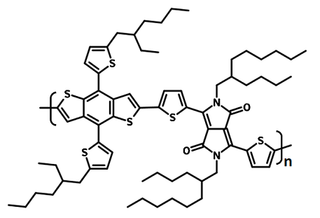

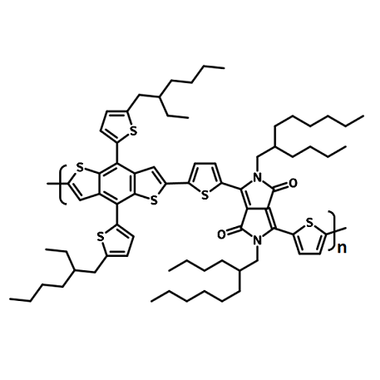

chemical structure of PBDTT-DPP
Chemical structure of PBDTT-DPP; Chemical formula: (C72H94N2O2S6)n.



Applications

PBDTT-DPP is a low band-gap polymer with strong photosensitivity in the range of 650-850 nm, with an onset absorption at 858 nm (Eg = 1.45 eV, near infrared absorption). However, it is less sensitive to visible light in the solar spectrum. For this reason, PBDTT-DPP is an ideal candidate for tandem solar cell structures, having achieved device performances of 8.62% (device structure: ITO/ZnO/P3HT:ICBA/PDOT:PSS/ZnO/PBDTT-DPP:PC71BM/Ag).

Additionally, a single-layer device based on PBDTT-DPP was shown to demonstrate a power conversion efficiency of 6%.[1]



Literature and Reviews

  1. Tandem polymer solar cells featuring a spectrally matched low-bandgap polymer, L. Dou et al., Nat. Photonics 6, 180 (2012); DOI: 10.1038/NPHOTON.2011.356.
  2. Metal Oxide Nanoparticles as an Electron-Transport Layer in High-Performance and Stable Inverted Polymer Solar Cells, J. You et al., Adv. Mater., 24, 5267–5272 (2012); DOI: 10.1002/adma.201201958.
  3. Visibly Transparent Polymer Solar Cells Produced by Solution Processing, C. Chen et al., ACS Nano, 6(8), 7185-7190 (2012); DOI: 10.1021/nn3029327.
  4. High-performance multiple-donor bulk heterojunction solar cells, Y. Yang et al., Nat. Photonics 9, 190–198 (2015); DOI:10.1038/nphoton.2015.9.
