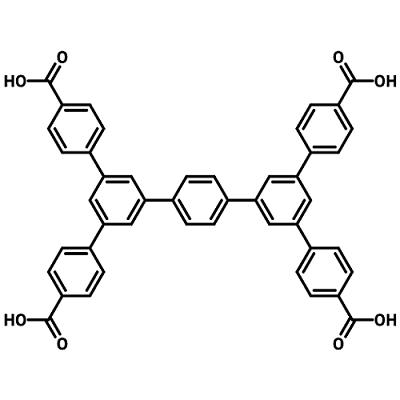

3,3′′,5,5′′-tetrakis(4-carboxyphenyl)-p-terphenyl

CAS Number 1816997-25-7

Chemistry Building Blocks, Materials, MOF Ligands, Porous Organic Frameworks

3,3′′,5,5′′-tetrakis(4-carboxyphenyl)-p-terphenyl MSDS

3,3′′,5,5′′-tetrakis(4-carboxyphenyl)-p-terphenyl CAS 1816997-25-7

Metal Organic Frameworks (MOFs) p-Terphenyl Ligand

A linear branched ligand linker for MOFs in applications of oxygen, methane and CO₂ adsorption and iron detection

Specifications | MSDS | Literature and Reviews

3,3′′,5,5′′-tetrakis(4-carboxyphenyl)-p-terphenyl (H4TCPT), CAS number 1816997-25-7, is a linear terphenyl ligand with four side arms of 4-carboxyphenyl groups.

Highly stable MOFs, [Zr₆O₄(OH)8(HO)₄(L)₂ ] (BUT-14), where L is H4TCPT, is highly porous with BET surface areas of 3,595 m² g⁻¹ , exhibiting excellent selective detection ability toward trace amounts of Fe³⁺ ion over other metal ions in water system in terms of distinct fluorescent quenching. with a detection limit of 212 ppb.

Chemically and hydrolytically stable chromium-based MOF Cr-soc-MOF-1 shows extraordinarily high porosity with a surface area of 4,549 m²/g with the ability to capture 200 wt % of water of its body weight over more than 100 adsorption-desorption cycles. Cr-soc-MOF-1 as an adsorbent find potential applications for water/moisture adsorption such as moisture control, dehumidification, adsorption-based desalination, and adsorption heating and cooling pumps.

Al-soc-MOF, another MOF platform using H4TCPT ligand as the linkers and aluminium ion clusters as the nodes, can address the challenging dual target of 0.5 g/g (gravimetric) and 264 cm3 (STP)/cm³ (volumetric) methane storage. Al-soc-MOF also exhibits the highest total gravimetric and volumetric uptake for carbon dioxide and oxygen at relatively high pressures among all microporous MOFs.

General Information

CAS Number	1816997-25-7
Chemical Formula	C₄₈H₃₀O₈
Full Name	3,3′′,5,5′′-tetrakis(4-carboxyphenyl)-p-terphenyl
Molecular Weight	710.73 g/mol
Synonyms	H4TCPT, 5',5'''-Bis(4-carboxyphenyl)-[1,1':3',1'':4'',1''':3''',1''''-quinquephenyl]-4,4''''- dicarboxylic acid, 5,5-Bis(4-carboxyphenyl)[1,1:3,1:4,1:3,1-quinquephenyl]-4,4-dicarboxylic acid
Classification / Family	p-Terphenyl, MOF ligands,

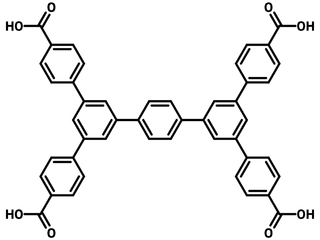

Chemical Structure

Product Details

Purity	>98%
Melting Point	n.a.
Appearance	Off-white powder/crystal

MSDS Documentation

3,3′′,5,5′′-tetrakis(4-carboxyphenyl)-p-terphenyl MSDS Sheet

Literature and Reviews

Stable fluorescent Zr(IV)-Based Metal−Organic Frameworks with Predesigned Functionalized Ligands for Highly Selective Detection of Fe(III) Ions in Water, B. Wang et al., ACS Appl. Mater. Interfaces, 9, 10286−10295 (2017); DOI: 10.1021/acsami.7b00918.
Reticular Chemistry in Action: A Hydrolytically Stable MOF Capturing Twice Its Weight in Adsorbed Water, T. Abtab et al., Chem, 4, 94–105 (2018); DOI: 10.1016/j.chempr.2017.11.005.
Metal organic frameworks and their composites as effective tools for sensing environmental hazards: An up to date tale of mechanism, current trends and future prospects, S. Kamal et al., Coor. Chem. Rev., 474, 214859 (2023); DOI: 10.1016/j.ccr.2022.214859.

Recent Progress on Microfine Design of Metal–Organic Frameworks: Structure Regulation and Gas Sorption and Separation, J. Li et al., Adv. Mater., 32 (44), 2002563 (2020); DOI: 10.1002/adma.202002563.
MOF Crystal Chemistry Paving the Way to Gas Storage Needs: Aluminum-Based soc-MOF for CH4, O2, and CO2 Storage, D. Alezi et al., J. Am. Chem. Soc., 137 (41), 13308–13318 (2015); DOI: 10.1021/jacs.5b07053.
