2,6-Di(pyridin-4-yl)naphthalene

CAS Number 950520-39-5

Chemistry Building Blocks, Materials, MOF Ligands, Porous Organic Frameworks


Product Code B3191-250mg
Price $150 ex. VAT

Quality assured

Expert support

Volume discounts

Worldwide shipping

Fast and secure


Metal Organic Frameworks (MOFs) Dipyridylnaphthalene Ligand

A rigid linear ligand linker for MOFs in applications of catalysts and pure white LEDs.


2,6-Di(pyridin-4-yl)naphthalene (DPyN) has a naphthalene with two 4-pyridyl groups at 2,6-positions.

2,6-Di(pyridin-4-yl)naphthalene is synthesised by reacting 2,6-dibromonaphthalene with 4-pyridylboronic acid via Suzuki coupling reaction using tetrakis(triphenylphosphine)palladium as the catalyst.

White-light-emitting systems in water at the single-molecule scale utilizing 2,6-di(pyridin-4-yl)naphthalene core and coumarin pedant groups with natural self-folded conformation can be realized. This particular folding behaviour could enhance the ICT efficiency and lead to pure white-light emission.

General Information

CAS Number 950520-39-5
Chemical Formula C20H14N2
Full Name 2,6-Di(pyridin-4-yl)naphthalene
Molecular Weight 282.34 g/mol
Synonyms DPyN, 2,6-bis(pyridin-4-yl)naphthalene
Classification / Family Dipyridylnaphthalene, MOF ligands,

Chemical Structure

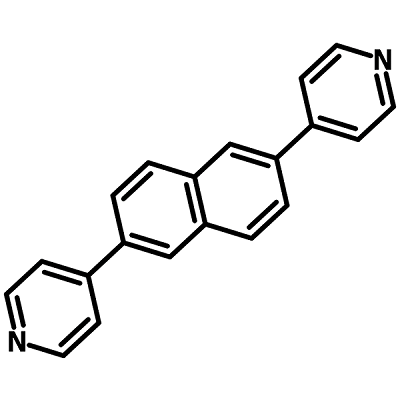

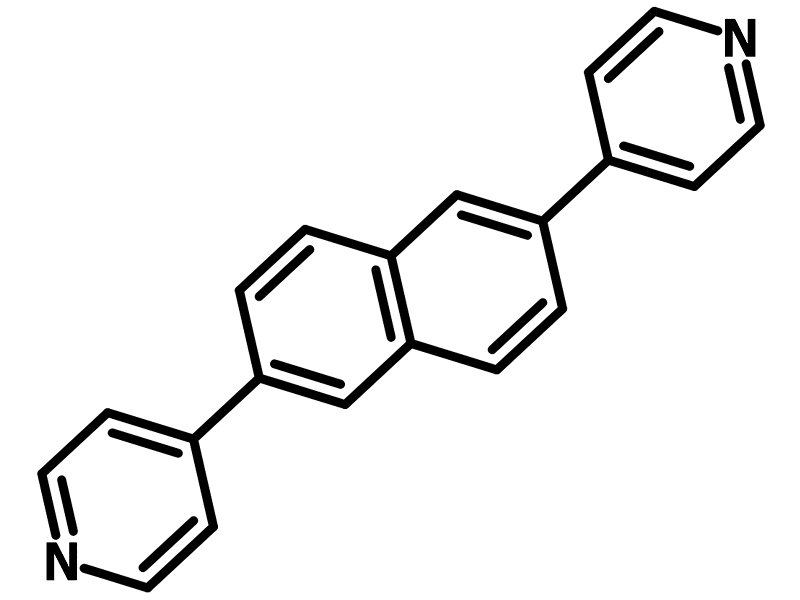

950520-39-5 - 2,6-di(pyridin-4-yl)naphthalene chemical structure
2,6-Di(pyridin-4-yl)naphthalene (DPyN) Chemical Structure, 950520-39-5

Product Details

Purity >98%
Melting Point N/A
Appearance Off white powder/crystal

MSDS Documentation

950520-39-5 - 2,6-di(pyridin-4-yl)naphthalene2,6-Di(pyridin-4-yl)naphthalene MSDS Sheet

Literature and Reviews

  1. Liquid-Phase Epitaxially Grown Metal–Organic Framework Thin Films for Efficient Tandem Catalysis Through Site-Isolation of Catalytic Centers, M. Beyzavi et al., ChemPlusChem, 81 (8), 708-713 (2016); DOI: 10.1002/cplu.201600046.
  2. Rational Design and Construction of Hierarchical Superstructures Using Shape-Persistent Organic Cages: Porphyrin Box-Based Metallosupramolecular Assemblies, Y. Kim et al., J. Am. Chem. Soc., 140 (44), 14547–14551 (2018); DOI: 10.1021/jacs.8b08030.
  3. Opening Metal–Organic Frameworks Vol. 2: Inserting Longer Pillars into Pillared-Paddlewheel Structures through Solvent-Assisted Linker Exchange, O. Karagiaridi et al., Chem. Mater., 25 (17), 3499–3503 (2013); DOI: 10.1021/cm401724v.
  4. Molecular tectonics: control of interpenetration in cuboid 3-D coordination networks, M. Lin et al., CrystEngComm, 13, 776-778 (2011); DOI: 10.1039/C0CE00777C.
  5. White-Light Emission from a Single Organic Compound with Unique Self-Folded Conformation and Multistimuli Responsiveness, D. Li et al., Chem. Sci., 9, 5709 (2018); DOI: 10.1039/c8sc01915k.

To the best of our knowledge the information provided here is accurate. The values provided are typical at the time of manufacture and may vary over time and from batch to batch. Products may have minor cosmetic differences (e.g. to the branding) compared to the photos on our website. All products are for laboratory and research and development use only.
