2',5'-Dimethoxy[1,1':4',1''-terphenyl]-4,4''-dicarboxylic acid

CAS Number 1392416-19-1

Chemistry Building Blocks, Materials, MOF Ligands, Porous Organic Frameworks


Product Code B3131-500mg
Price $188 ex. VAT

Quality assured

Expert support

Volume discounts

Worldwide shipping

Fast and secure


Metal Organic Frameworks (MOFs) Terphenyl Ligand

A rigid linear ligand linker with flexible side functional groups for MOFs in applications of carbon dioxide storage and separation of CO2 and CH4.


2′,5′-Dimethoxy-[1,1′:4′,1″-terphenyl]-4,4″-dicarboxylic acid (H2TPDC-OMe), a rigid terphenyl ligand with flexible functional groups, can provide various coordination modes and diverse architectures with inorganic metal cluster centres. With three linearly connected phenyl rings, 2′,5′-dimethoxy-[1,1′:4′,1″-terphenyl]-4,4″-dicarboxylic acid is also capable of showing photoluminescence.

Porous MOF [Cd(L)(OBA)]·DMF·H2O, where L is H2TPDC-OMe, shows high adsorption for CO2 with an uptake of 26.75 cm3/g at 295 K. {[Cd(L)(OBA)]·DMF·H2O}n also demonstrates great potential for selective separation of CO2 and CH4, due to the different interaction mechanism between the gases and the open metal sites.

General Information

CAS Number 1392416-19-1
Chemical Formula C22H18O6
Full Name 2',5'-Dimethoxy[1,1':4',1''-terphenyl]-4,4''-dicarboxylic acid
Molecular Weight 378.37 g/mol
Synonyms H2TPDC-OMe
Classification / Family Terphenyl, MOF ligands,

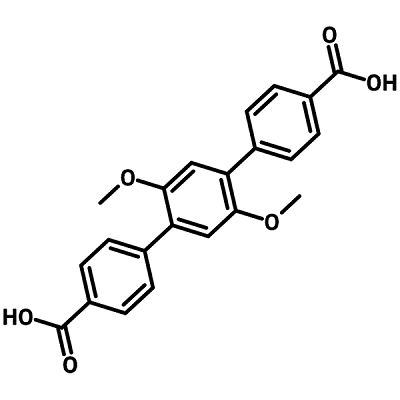

Chemical Structure

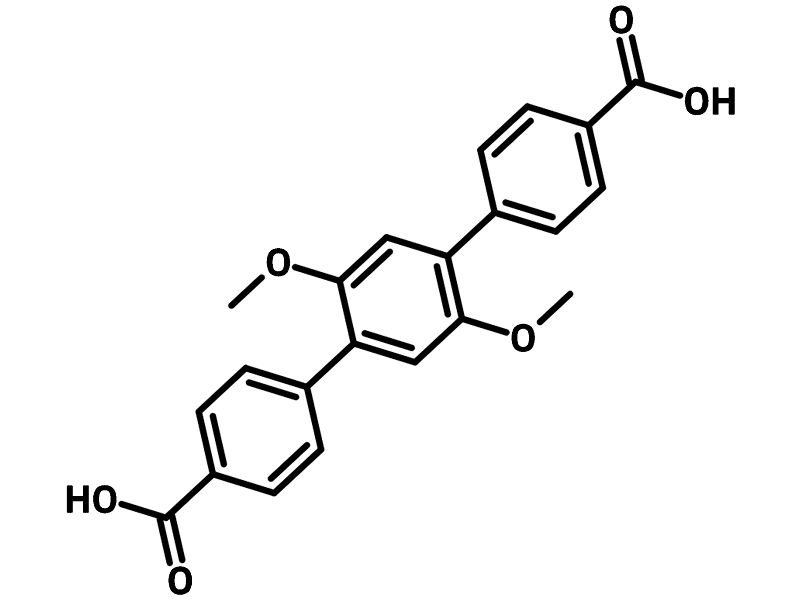

1392416-19-1 - 2',5'-Dimethoxy[1,1':4',1''-terphenyl]-4,4''-dicarboxylic acid chemical structure
2',5'-Dimethoxy[1,1':4',1''-terphenyl]-4,4''-dicarboxylic acid (H2TPDC-OMe) Chemical Structure, 1392416-19-1

Product Details

Purity >98%
Melting Point n.a.
Appearance White powder/crystal

MSDS Documentation

1392416-19-1 - 2',5'-dimethoxy[1,1':4',1''-terphenyl]-4,4''-dicarboxylic acid2',5'-Dimethoxy[1,1':4',1''-terphenyl]-4,4''-dicarboxylic acid MSDS Sheet

Literature and Reviews

  1. Modulated Synthesis of Zr-Based Metal–Organic Frameworks: From Nano to Single Crystals, A. Schaate et al., Chem, Euro. J., 17 (24), 6643-6651 (2011); DOI: 10.1002/chem.201003211.
  2. Dysprosium-carboxylate nanomeshes with tunable cavity size and assembly motif through ionic interactions, B. Cirera et al., Chem. Commun., 52, 11227-11230 (2016); DOI: 10.1039/C6CC04874A.
  3. Enhanced water stability and high CO2 storage capacity of a Lewis basic sites-containing zirconium metal–organic framework, S. Demir et al., Dalton Trans., 50, 16587-16592 (2021); DOI: 10.1039/D1DT02772G.
  4. Lanthanide metal–organic network featuring strong perpendicular magnetic anisotropy, S. Parreiras et al., Nanoscale, 15, 7267-7271 (2023); DOI: 10.1039/D2NR07189D.
  5. Interpenetration Control in Thorium Metal–Organic Frameworks: Structural Complexity toward Iodine Adsorption, Y. Ju et al., Inorg. Chem., 60 (8), 5617–5626 (2021); DOI: 10.1021/acs.inorgchem.0c03586.
  6. A Simple, Transition Metal Catalyst-Free Method for the Design of Complex Organic Building Blocks Used to Construct Porous Metal–Organic Frameworks, I. Kochetygov et al., Angew. Chem. Int. Ed., e202215595 (2023); DOI: 10.1002/anie.202215595.

To the best of our knowledge the information provided here is accurate. The values provided are typical at the time of manufacture and may vary over time and from batch to batch. Products may have minor cosmetic differences (e.g. to the branding) compared to the photos on our website. All products are for laboratory and research and development use only.
