Product Code B3111-1g
Price $175 ex. VAT

Quality assured

Expert support

Volume discounts

Worldwide shipping

Fast and secure


Metal Organic Frameworks (MOFs) Dipyridylbenzene Ligand

A rigid linear ligand linker for MOFs in applications of environmental protection and separation of the isomers


1,4-Di(4-pyridyl)benzene (DPyBz) has two end 4-pyridine units joined by a benzene ring at 1,4-positions.

Highly porous metal–organic framework Zn2(TCPP)(DPyBz) (H4TCPP = 2,3,5,6-tetrakis(4-carboxyphenyl)pyrazine) has permanent porosity with high BET areas 1,324 m2 g−1. The Zn2(COO)4 paddlewheel units of the metal-organic framework are fitted together by the TCPP4− ligands to form two-dimensional layers and then further connected by DPyBz ligands as pillars to construct a two-fold catenated 3D framework. Zn2(TCPP)(DPyBz) shows selective CO2 and light hydrocarbon capture with potential applications for environmental protection.

Metallacycle iridium complex, also bearing 1,4-di(4-pyridyl)benzene, can produce n-hexane with a purity of >99% in a single adsorption–desorption cycle from an equimolar mixture of all five isomers of hexane, taking advantage of these dihydrogen bond interactions (B–Hδ−···Hδ+–C ) for the separation of the isomers.

General Information

CAS Number 113682-56-7
Chemical Formula C16H12N2
Full Name 1,4-Di(4-pyridyl)benzene
Molecular Weight 232.29 g/mol
Synonyms DPyBz, 4,4'-(1,4-Phenylene)bispyridine
1,4-Di(pyridin-4-yl)benzene
Classification / Family Dipyridylbenzene, MOF ligands,

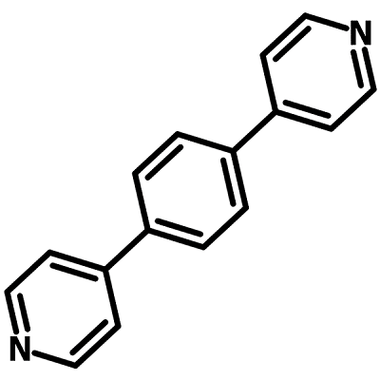

Chemical Structure

113682-56-7 - 1,4-di(4-pyridyl)benzene chemical structure
1,4-Di(4-pyridyl)benzene (DPyBz) Chemical Structure, 113682-56-7

Product Details

Purity >98%
Melting Point 193 °C
Appearance White powder/crystal

MSDS Documentation

113682-56-7 - 1,4-di(4-pyridyl)benzene1,4-Di(4-pyridyl)benzene MSDS Sheet

Literature and Reviews

  1. Synthesis and structural characterization of a flexible metal organic framework {[Ni(dpbz)][Ni(CN)4]}n, dpbz = 1,4-bis(4-pyridyl)benzene) with an unusual Ni–N bond, W. Wong-Ng et al., Solid State Sci., 52, 1-9 (52); DOI: 10.1016/j.solidstatesciences.2015.11.010.
  2. One-Dimensional Chain-Type Dicopper Coordination Polymer Linked by 1,4-Di(4-pyridyl)benzene; Synthesis, Crystal Structure, Magnetic Property, and Gas-Adsorption Property, N. Yano et al., Magnetochem., 4(2), 26 (2018); DOI: 10.3390/magnetochemistry4020026.
  3. Proton-Assisted Self-Assemblies of Linear Di-Pyridyl Polyaromatic Molecules at Solid/Liquid Interface, H. Li et al., J. Phys. Chem. C, 116 (41), 21753–21761 (2012); DOI: 10.1021/jp303352h.
  4. Dihydrogen Bond Interaction Induced Separation of Hexane Isomers by Self-Assembled Carborane Metallacycles, P. Cui et al., J. Am. Chem. Soc., 142 (18), 8532–8538 (2020); DOI: 10.1021/jacs.0c03176.
  5. Two zinc metal–organic framework isomers based on pyrazine tetracarboxylic acid and dipyridinylbenzene for adsorption and separation of CO2 and light hydrocarbons, Y. Ye et al., Dalton Trans., 49, 1135-1142 (2020); DOI: 10.1039/C9DT04305E.

To the best of our knowledge the information provided here is accurate. The values provided are typical at the time of manufacture and may vary over time and from batch to batch. Products may have minor cosmetic differences (e.g. to the branding) compared to the photos on our website. All products are for laboratory and research and development use only.
