PFN-FP-I, active layer material for blue OLEDs

Used to improve extraction efficiencies in organic electronic devices


PFN-FP-I is a conjugated polymer electrolyte diiodide salt of PFN-FP. It is used either as an active layer material for blue OLEDs, or as an electron-interface layer material in organic electronic devices (including OLED, OPV and perovskite solar cells) to improve extraction efficiency.

Due to its strong polar ionic pendant groups, PFN-FP-I is soluble in methanol and water.

Cathode interlayer molecule

Cathode interlayer molecule

For high efficient OPV applications

Improve extraction efficiency

Improve extraction efficiency

as a conjugated polyelectrolyte

Worldwide shipping for 1026670-72-3

Worldwide shipping

Quick and reliable shipping

Good solubility

Good solubility

Soluble in polar solvents with small amout of acetic acid

General Information

Full name Poly[(9,9-bis(3'-(N,N-trimethylamino)propyl)-2,7-fluorene)-alt-1,4-phenylene] diiodide
Synonyms PFN-FP iodide; PFN-B-I
Chemical formula (C31H40N2I2)n
CAS number 1026670-72-3
Classification/Family Conjugated polymers, Polymer electrolyte, Polyfluorenes, Electron interface layer materials, OLED, OPV, Perovskite materials, Water-soluble polymer materials

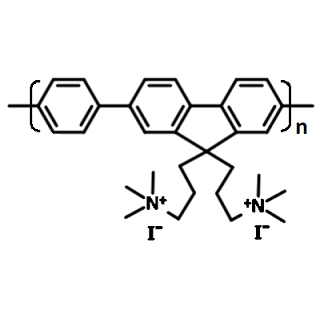

Chemical Structure

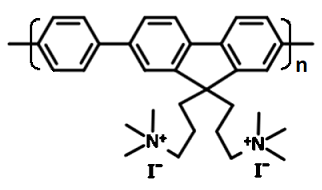

PFN-FP-I chemical structure
Chemical structure of PFN-FP-I

MSDS Documentation

PFN-FP-I MSDSPFN-FP-I MSDS sheet

Pricing

Batch Quantity Price
M2080A1 100 mg £280
M2080A1 250 mg £560
M2080A1 500 mg £900

Batch details

Batch Number Mw Mn PDI Stock Info
M2080A1 21 kDa 9.5 kDa 2.2 In stock

Literature and References

  1. Combination of Titanium Oxide and a Conjugated Polyelectrolyte for High-Performance Inverted-Type Organic Optoelectronic Devices, H. Choi et al., Adv. Mater., 23, 2759–2763 (2011); DOI: 10.1002/adma.201100266.
  2. Influence of polymeric electron injection layers on the electrical properties of solution-processed multilayered polymer light-emitting diodes, E. Itoh et al., Jpn. J. Appl. Phys. 55 02BB16 (2016); http://doi.org/10.7567/JJAP.55.02BB16.
  3. Huge enhancement of optical nonlinearities in coupled Au and Ag nanoparticles induced by conjugated polymers, L. Polavarapu et al., Appl. Phys. Lett. 100, 023106 (2012); https://doi.org/10.1063/1.3675911.
  4. Enhanced Two-Photon Emission in Coupled Metal Nanoparticles Induced by Conjugated Polymers, Z. Guan et al., Langmuir, 26 (23), 18020–18023 (2010);DOI: 10.1021/la103668k

To the best of our knowledge the information provided here is accurate. The values provided are typical at the time of manufacture and may vary over time and from batch to batch. Products may have minor cosmetic differences (e.g. to the branding) compared to the photos on our website. All products are for laboratory and research and development use only.
