mCPCN


Product Code M2272A1
Price £175.00 ex. VAT

mCPCN, 9-(3-(9H-Carbazol-9-yl)phenyl)-9H-carbazole-3-carbonitrile, is an asymmetric bipolar and high-triplet-energy (E= 3.03 eV) phosphorescent host material which could be used for hosting blue, green, red and white light emitting TADF-OLED devices.

The incorporation of the simple and small CN group can greatly improve film morphology and device thermal stabilities. Compared to mCP, CN group attached to the 3-position of the carbazole unit in mCPCN is believed to increases the electron affinity to achieve a rather balanced hole–electron injection and transport properties while not altering electronic transition energies and maintaining a high triplet energy.

General Information

CAS number 1392506-99-8
Chemical formula C31H19N3
Molecular weight 433.5 g/mol
Absorption λmax 326, 339 nm (in DCM)
Fluorescence λem 348, 365 nm (in DCM)
HOMO/LUMO HOMO = 5.80 eV, LUMO = 2.24 eV; E= 3.03 eV [1]
Full name 9-(3-(9H-Carbazol-9-yl)phenyl)-9H-carbazole-3-carbonitrile
Synonyms mCP-CN
Classification / Family Carbazole derivatives, Hole transporting materials, Phosphorescent host materials, OLEDs, TADF materials, Organic electronics

Product Details

Purity Sublimed* >99.0%
Melting point T= 222 °C (lit.), Td = 313 °C (5% weight loss), Tg = 97 °C
Colour White Powder

*Sublimation is a technique used to obtain ultra pure-grade chemicals. For more details about sublimation, please refer to the Sublimed Materials for OLED devices page.

Chemical Structure

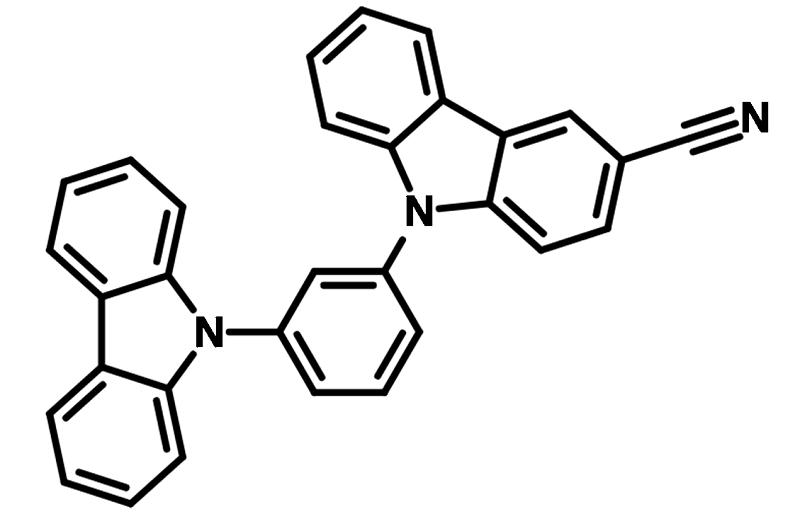

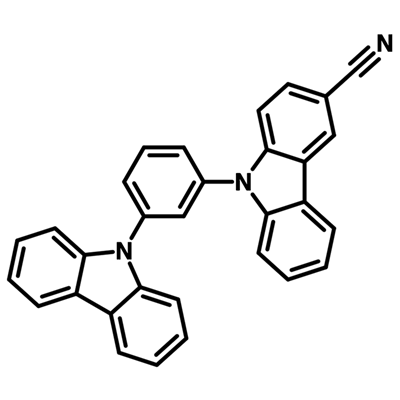

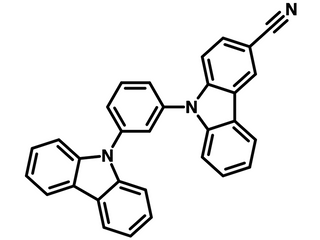

Chemical structure of mCPCN, CAS 1392506-99-8

Chemical structure of 9-(3-(9H-Carbazol-9-yl)phenyl)-9H-carbazole-3-carbonitrile (mCPCN), CAS 1392506-99-8

Device Structure(s)

Device structure ITO/TAPC (40 nm)/mCP (10 nm)/mCPCN doped with 8 wt% of
FIrpic (20 nm)/DPPS (5 nm)/3TPYMB (45 nm)/LiF (0.5 nm)/Al
(150 nm)
[1]
Colour Blue blue
Max. Current Efficiency 58.7 cd/A
Max. EQE 26.4%
Max. Power Efficiency 57.6 lm W1

Device structure ITO/PEDOT:PSS (70 nm)/TAPC (15 nm)/mCP (5 nm)/mCPCN:DMAC­‐TRZ 8 wt.% (20 nm)/DPPS (5 nm)/3TPYMB (45 nm)/LiF (0.5 nm)/Al (150 nm) [2]
Colour Green green
Max. Current Efficiency 66.8 cd/A
Max. EQE 26.5%
Max. Power Efficiency 65.6 lm W1

Device structure ITO/MoO3 (1 nm)/TAPC (40 nm)/mCP (10 nm)/mCPCN doped with 8 wt % of FIrpic (20 nm)/3TPYMB (50 nm)/LiF (1 nm)/Al (150 nm) [3]
Colour Blue blue
Max. Current Efficiency 73.4 cd/A
Max. EQE 30.6%
Max. Power Efficiency 67.8 lm W1

Device structure ITO/MoO3 (1 nm)/TAPC (40 nm)/mCP (10 nm)/mCPCN doped with 8 wt % of MS2 (20 nm)/3TPYMB (50 nm)/LiF (1 nm)/Al (150 nm) [3]
Colour Blue blue
Max. Current Efficiency 79.4 cd/A
Max. EQE 30.1%
Max. Power Efficiency 69.3 lm W1

Device structure ITO/MoO3 (1 nm)/TAPC/mCP (10 nm)/mCPCN doped with Ir(III) dopants 1m (12 wt.%; 20 nm)/3TPYMB/LiF (0.5 nm)/Al (100 nm) [4]
Colour Blue blue
Max. Current Efficiency 69.5 cd/A
Max. EQE 27%
Max. Power Efficiency 68.2 lm W1

Device structure ITO/MoO3 (1 nm)/TAPC/mCP (10 nm)/mCPCN doped with Ir(III) dopants 2m (12 wt.%; 20 nm)/3TPYMB/LiF (0.5 nm)/Al (100 nm) [4]
Colour Bluish green
Max. Current Efficiency 100 cd/A
Max. EQE 30%
Max. Power Efficiency 92 lm W1

Device structure ITO/MoO3 (1 nm)/TAPC/mCP (10 nm)/mCPCN doped with Ir(III) dopants 3m (12 wt.%; 20 nm)/3TPYMB/LiF (0.5 nm)/Al (100 nm) [4]
Colour Green green
Max. Current Efficiency 110.8 cd/A
Max. EQE 31.4%
Max. Power Efficiency 108.7 lm W1


Pricing

 Grade Order Code Quantity Price
Sublimed (>99%) M2272A1 100 mg £175.00
Sublimed (>99%) M2272A1 250 mg  £349.00
Sublimed (>99%) M2272A1 500 mg £599.00
Sublimed (>99%) M2272A1 1 g £1080.00

MSDS Documentation

mCPCN MSDSmCPCN MSDS sheet

Literature and Reviews

  1. Incorporation of a CN group into mCP: a new bipolar host material for highly efficient blue and white electrophosphorescent devices, M-S. Lin et al., J. Mater. Chem., 22, 16114 (2012); DOI: 10.1039/C2JM32717A.
  2. Versatile Thermally Activated Delayed Fluorescence Emitter for Both Highly Efficient Doped and Non-Doped Organic Light Emitting Devices, W-L. Tsai et al., Chem. Commun., 51, 13662-13665 (2015); DOI: 10.1039/C5CC05022G.
  3. Anomalously Long-Lasting Blue PhOLED Featuring Phenyl-Pyrimidine Cyclometalated Iridium Emitter, M. Sarma et al., Chem., 3 (3), 461-476 (2017); DOI: 10.1016/j.chempr.2017.08.001.
  4. Bis-tridentate Ir(III) Complexes with Nearly Unitary RGB Phosphorescence and Organic Light-Emitting Diodes with External Quantum Efficiency Exceeding 31%, C-Y. Kuei et al., Adv. Mater., 28 (14); 2795-2800 (2016); DOI: 10.1002/adma.201505790.
