PTEBS Water Soluble Polythiophenes

CAS Number 744198-90-1

Interface Polymers, OPV Polymers, Semiconducting Polymers


Product Code M2197A2-100mg
Price $350 ex. VAT

Quality assured

Expert support

Volume discounts

Worldwide shipping

Fast and secure


PTEBS, enhances performance of hybrid solar cells

Can be tuned to improve efficiencies for photovoltaic device performance


PTEBS, sodium poly[2-(3-thienyl)-ethoxy-4-butylsulfonate], is a water soluble, environmentally friendly conjugated polythiophene and it has proven to be effective for enhancing the performance of hybrid solar cells.

Absorption spectrum of the PTEBS can be tuned by acid doping. When PTEBS is acidified, self-doping happens, and it leads to optical and infrared absorption changes with increased conductivity. These new absorption bands in return could improve efficiencies for photovoltaic device performance.

PTEBS can also be employed as a cathode interfacial material for perovskite solar cells. Ultrathin coating of PTEBs can lead to effective energy level aligning with improved film morphology. With a better ohmic contact between the perovskite layer and the cathode, device charge extraction and transport can be enhanced.

General Information

CAS number 744198-90-1
Chemical formula (C10H13S2O4Na)n
Absorption* λmax 390 nm (in water)
Fluorescence n.a.
HOMO/LUMO HOMO = 5.2 eV, LUMO = 3.2 eV [1]
Full name
Sodium poly[2-(3-thienyl)-ethoxy-4-butylsulfonate]
Synonyms Poly[2-(3-thienyl)ethoxy-4-butylsulfonate], sodium salt
Solubility Water, DMF
Classification / Family Polymer thiophenes, Water soluble polythiophenes, Organic polymer solar cells, Organic electronics.

* Measurable with an Optical Spectrometer, see our spectrometer application notes.

Product Details

Purity >99%
Thermogravimetric Analysis (TGA) Not available
Appearance Brownish red powder/fiber

Chemical Structure

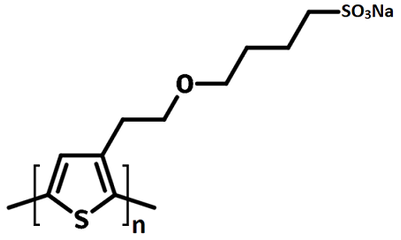

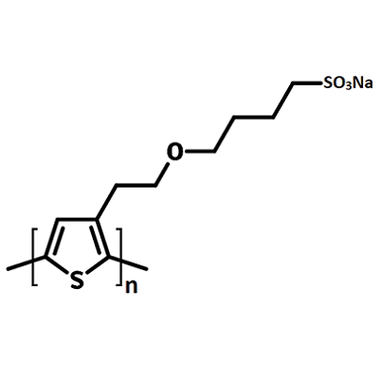

Chemical structure of PTEBS
Chemical structure of PTEBS, Sodium poly[2-(3-thienyl)-ethoxy-4-butylsulfonate]

MSDS Documentation

PTEBS  MSDSPTEBS MSDS sheet

Pricing

 Batch Quantity Price
M2197A 100 mg £280
M2197A 250 mg £560
M2197A 500 mg £950
M2197A 1 g £1650

Batch information

Batch Mw Mn PDI Stock info
M2197A1 35 kDa <3.0 Discontinued
M2197A2 35 kDa
Discontinued

Literature and Reviews

  1. Hybrid TiO2 Solar Cells Produced from Aerosolized Nanoparticles of Water-Soluble Polythiophene Electron Donor Layer, M. Sweet et al., J. Solar Energy, 192812 (2014); doi: 10.1155/2014/192812.
  2. Green-solvent-processable organic solar cells, S. Zhang et al., Mater. Today, 19 (9), 533-543 (2016); doi: 10.1016/j.mattod.2016.02.019 533.
  3. Hybrid Solar Cells fromWater-Soluble Polymers, J. T. McLeskey Jr. et al., Inter. J. Photoenergy, 20951, 1–6 (2006); DOI 10.1155/IJP/2006/20951.
  4. A donor–acceptor–donor-type conjugated polymer-modified TiO2 with enhanced photocatalytic activity under simulated sunlight and natural sunlight, Y. Wang et al., J. Mater. Sci., (2017) 52:4820–4832 (2017); DOI 10.1007/s10853-016-0717-7.
  5. Water Soluble Polymeric Interfacial Material for Planar Perovskite Solar Cells, L. Zheng et al., ACS Appl. Mater. Interfaces, 9 (16), 14129-14135 (2017); doi: 10.1021/acsami.7b00576.

To the best of our knowledge the information provided here is accurate. The values provided are typical at the time of manufacture and may vary over time and from batch to batch. Products may have minor cosmetic differences (e.g. to the branding) compared to the photos on our website. All products are for laboratory and research and development use only.
