DMAC-TRZ
CAS Number 1628752-98-6
Dopant Materials, High Purity Sublimed Materials, Semiconducting Molecules, TADF Materials
DMAC-TRZ, sky blue TADF emitter for highly efficient doped and non-doped OLED devices
High purity (>99.0%) and high PLQY in doped and neat films
DMAC-TRZ, 10-(4-(4,6-Diphenyl-1,3,5-triazin-2-yl)phenyl)-9,9-dimethyl-9,10-dihydroacridine, has a bipolar structure containing both 2,4,6-triphenyl-1,3,5-triazine (TRZ) as the electron-accepting and 9,9-dimethyl-9,10-dihydroacridine (DMAC) as the electron-donating moieties.
DMAC-TRZ is a well-known sky blue TADF emitter for both highly efficient doped and non-doped OLED devices, with high maximum external quantum efficiencies (EQE) over 20%. It shows not only high photoluminescence quantum yield (PLQY, ≥90%) in doped films but also high PLQY (83%) in neat films with low concentration quenching.
General Information
| CAS number | 1628752-98-6 |
|---|---|
| Full name | 10-(4-(4,6-Diphenyl-1,3,5-triazin-2-yl)phenyl)-9,9-dimethyl-9,10-dihydroacridine |
| Chemical formula | C36H28N4 |
| Molecular weight | 516.63 g/mol |
| Absorption | λmax 390 nm in Toluene |
| PL | λem 425 nm in Toluene |
| HOMO/LUMO | HOMO = 5.92 eV, LUMO = 2.92 eV; T1=2.91 eV[1] |
| Synonyms | |
| Classification / Family | Acridine derivatives, Sky-blue TADF emitter, Phosphorescent organic light-emitting devices (PHOLEDs), Sublimed materials |
Product Details
| Purity | Sublimed >99.0% (HPLC) |
|---|---|
| Melting point | mp = 234 °C (DSC), Tg = 91 °C |
| Appearance | Pale yellow powder/crystals |
*Sublimation is a technique used to obtain ultra pure-grade chemicals. For more details about sublimation, please refer to the Sublimed Materials.

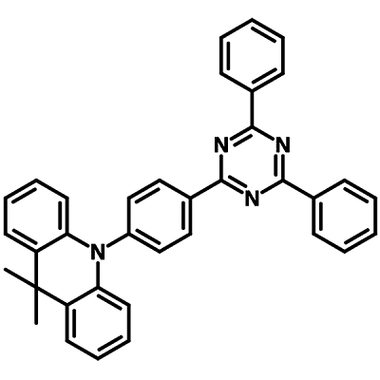

Chemical Structure
Device Structure(s)
| Device structure | ITO anode/PEDOT:PSS (70 nm)/TAPC (15 nm)/mCP (5nm)/mCPCN:DMAC-TRZ 8 wt.% (20 nm)/DPPS (5 nm)/3TPYMB (45 nm)/LiF (0.5 nm)/Al (150 nm) [1] |
|---|---|
| Colour |
 Greenish-Blue |
| Max Current Efficiency | 66.8 cd/A |
| Max. Power Efficiency | 65.6 Im/W |
| Max. EQE | 26.5% |
| Device structure | ITO anode/PEDOT:PSS (70 nm)/TAPC (15 nm)/mCP (5nm)/DMAC-TRZ (20 nm)/DPPS (5 nm)/3TPYMB (45 nm)/LiF (0.5 nm)/Al (150 nm) [1] |
|---|---|
| Colour |
Greenish-Blue |
| Max Current Efficiency | 61.6 cd/A |
| Max. Power Efficiency | 45.7 Im/W |
| Max. EQE | 20.0% |
| Device structure | ITO/PEDOT:PSS/X-OTPD* (20 nm)]/DCzPPy:20 wt% DMAC-TRZ (35 nm)/TmPyPB (55 nm)/CsF (1.5 nm)/Al [2] |
|---|---|
| Colour |
Greenish-Blue |
| Max Current Efficiency | 30.4 cd/A |
| Max. Power Efficiency | 24.5 Im/W |
| Max. EQE | 8.8% |
| Device structure | ITO/PEDOT:PSS/X-QUPD (10 nm)/X-DCDPA* (10 nm)/DCzPPy:20 wt% DMAC-TRZ (35 nm)/TmPyPB (55 nm)/CsF (1.5 nm)/Al [2] |
|---|---|
| Colour |
Greenish-Blue |
| Max Current Efficiency | 79.6 cd/A |
| Max. Power Efficiency | 48.6 Im/W |
| Max. EQE | 25.9% |
*For chemical structure information, please refer to the cited references.
Pricing
| Grade | Order Code | Quantity | Price |
|---|---|---|---|
| Sublimed (>99.0% purity) | M2343A1 | 100 mg | £240 |
| Sublimed (>99.0% purity) | M2343A1 | 250 mg | £480 |
| Sublimed (>99.0% purity) | M2343A1 | 500 mg | £760 |
| Sublimed (>99.0% purity) | M2343A1 | 1 g | £1250 |
MSDS Documentation
DMAC-TRZ MSDS sheetLiterature and Reviews
- Versatile Thermally Activated Delayed Fluorescence Emitter for Both Highly Efficient Doped and Non‐Doped Organic Light Emitting Devices, W. Tsai et al., Chem. Commun., 51, 13662-13665 (2015); DOI: 10.1039/C5CC05022G.
- Solution-Processed Thermally Activated Delayed Fluorescent OLED with High EQE as 31% Using High Triplet Energy Crosslinkable Hole Transport Materials, K. Tsai et al., Adv. Funct. Mater., 29 (15), 1901025 (2019); DOI: 10.1002/adfm.201901025.
- Highly Efficient Organic Light Emitting Diode with 37% External Quantum Efficiency Using Thermally Activated Delayed Fluorescence from Spiroacridine-Triazine Hybrid Emitter Simultaneously Having Unitary Photoluminescence and Strongly Horizontal Emitting Dipoles, T. Lin et al., Adv. Mater., 28 (32), 6976-6983 (2016); DOI: 10.1002/adma.201601675.
