Product Code M2387A1-LT-100mg
Price $500 ex. VAT

Quality assured

Expert support

Volume discounts

Worldwide shipping

Fast and secure


AQ(PhDPA)red dopant material

Available in high purity, sublimed grade for highly efficient TADF-OLED, energy storage and waveguide applications.


AQ(PhDPA)2, 2,6-bis[4-(diphenylamino)phenyl]-9,10-Anthracenedione, has a molecular structure of the D-π-A-π-D-type chromophore with two electron-rich triphenylamine units attached to an electron deficient anthraquinone centre at 2,6-positions. AQ(PhDPA)2 has been used as an efficient red TADF emitter.

Mono-polymer PBDAPA, prepared from AQ(PhDPA)as the monomer, shows unique urchin-like morphology with an improved specific surface area of ∼129.6 m2 g-1. PBDAPA presents double charge-discharge characteristics with specific capacity of 132.7 mAh g-1. Also, by using the vertical top pumping mode of a 450 nm LED, passive SU-8 waveguide with AQ(PhDPA)2 doped PMMA as the upper cladding presented a gain of 2.6 dB cm-1.

General Information

CAS Number 1640978-33-1
Chemical Formula C50H34N2O2
Molecular Weight 694.82 g/mol
Absorption λmax 614 nm in toluene [1]
Fluorescence λmax 304 nm, 335 nm, 367 nm and 455 nm in toluene
HOMO/LUMO HOMO = 5.90 eV, LUMO = 3.60 eV [1]
Full Name 2,6-bis[4-(diphenylamino)phenyl]-9,10-Anthracenedione
Synonyms AQ-b1, BDAPA
Classification / Family Triphenylamine derivatives, Anthracenedione, TADF Red dopant, Sublimed materials

Chemical Structure

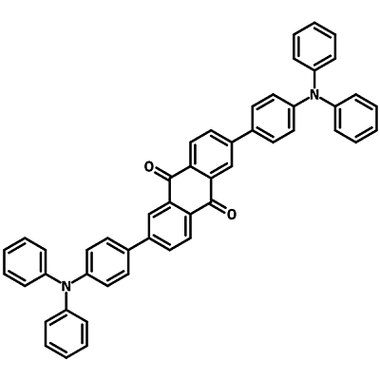

AQ(PhDPA)2 chemical structure, 2,6-bis[4-(diphenylamino)phenyl]-9,10-Anthracenedione, 1640978-33-1

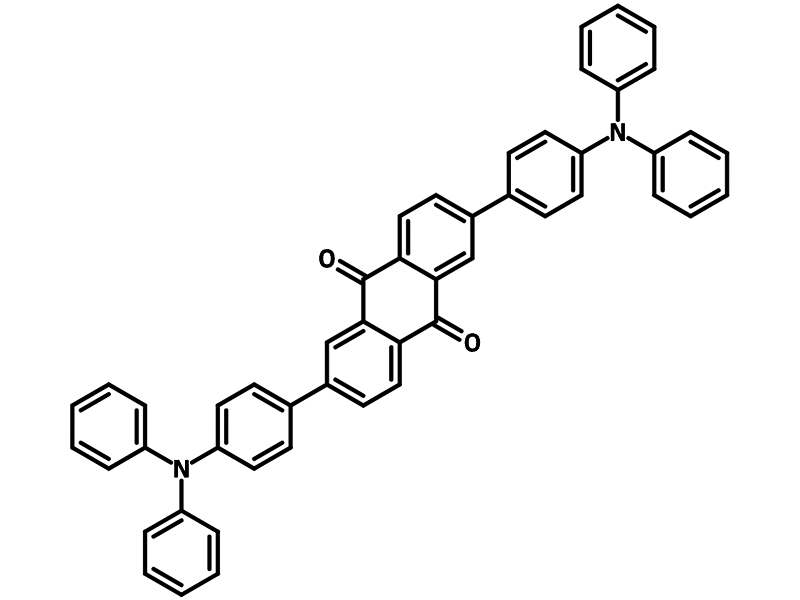

Chemical Structure of 2,6-bis[4-(diphenylamino)phenyl]-9,10-Anthracenedione, AQ(PhDPA)2, CAS 1640978-33-1

Product Details

Purity Sublimed* >99.0% (HPLC)
Melting Point N/A
Appearance Red powder/crystals

*Sublimation is a technique used to obtain ultra pure-grade chemicals. For more details about sublimation, please refer to the Sublimed Materials.

MSDS Documentation

AQ(PhDPA)2 MSDSAQ(PhDPA)2 MSDS sheet

Pricing

Grade Order Code Quantity Price
Sublimed (>99.0% purity) M2387A1 100 mg £400
Sublimed (>99.0% purity) M2387A1 250 mg £800
Sublimed (>99.0% purity) M2387A1 500 mg £1350
Sublimed (>99.0% purity) M2387A1 1 g £2300

Literature and Reviews

  1. Solution-processed multiple exciplexes via spirofluorene and S-triazine moieties for red thermally activated delayed fluorescence emissive layer OLEDs, Org. Electron., 96, 106181 (2021); DOI: 10.1016/j.orgel.2021.106184.
  2. Optical Gain at 637 nm Wavelength in Polymer Waveguide Amplifier Under Commercial LED Pumping for Planar Photonic Integration, C. Wang et al., Adv. Opt. Mater., 10 (13), 2200205 (2022); DOI: 10.1002/adom.202200205.
  3. A Novel Anthraquinone-Containing Poly(Triphenylamine) Derivative: Preparation and Electrochemical Performance as Cathode for Lithium-Ion Batteries, C. Su et al., ChemElectroChem, 7 (19), 4101-4107 (2020); DOI: 10.1002/celc.202001084.
  4. Role of Singlet and Triplet Excitons on the Electrical Stability of Polymer Light-Emitting Diodes, B. Zee et al., Adv. Electron. Mater., 6 (8), 2000367 (2020); DOI: 10.1002/aelm.202000367.
  5. Optical Amplification at 637 and 1067 nm Based on Organic Molecule AQ(PhDPA)2 and Nd III Complex Codoped Polymer Waveguides, Y. Huang et al., Small Methods, 2201366 (2023); DOI: 10.1002/smtd.202201366.
  6. Conformational Relaxation and Thermally Activated Delayed Fluorescence in Anthraquinone-Based Intramolecular Charge-Transfer Compound, Z. Kuang et al.,  J. Phys. Chem. C, 122, 3727−3737 (2018); DOI: 10.1021/acs.jpcc.7b11411.

To the best of our knowledge the information provided here is accurate. The values provided are typical at the time of manufacture and may vary over time and from batch to batch. Products may have minor cosmetic differences (e.g. to the branding) compared to the photos on our website. All products are for laboratory and research and development use only.
