MADN CAS 804560-00-7
Product Code M2092A1-1g
Price £290 ex. VAT
£ GBP

How to Order | Shipping

MADN, highly-efficient blue host material and HTL material for organic electronic devices

High-purity (>99.0%) and available online for priority dispatch

Overview | Specifications | Pricing and Options | MSDS | Literature and Reviews

MADN (CAS number 804560-00-7), 2-methyl-9,10-bis(naphthalen-2-yl)anthracene is commonly known as a blue emitter. It is widely used as a highly-efficient blue host material and hole-transporting material (HTM) for organic electronic devices. Exhibiting an ambipolar transporting ability, MADN offers stable thin-film morphology and a wide energy band-gap.

As a hole-transporting material, MADN can reduce the amount of hole carriers injected into the device - leading to a well-balanced carrier recombination [2].

General Information

CAS number 804560-00-7
Chemical formula C35H24
Molecular weight 444.57 g/mol
Absorption λmax 379 nm, 399 nm in DCM
Fluorescence λem 439 nm in DCM
HOMO/LUMO HOMO = -5.5 eV, LUMO = -2.5 eV [1]
Synonyms 2-Methyl-9,10-bis(naphthalen-2-yl)anthracene, 2-Methyl-9,10-di(2-naphthyl)anthracene
Classification / Family Hole-transport layer (HTL) materials, Solution-processed OLED maetrials, Blue emitter, PHOLEDs, OPV, Sublimed materials

Product Details

Purity >99.0% (sublimed)
Melting Point 253 - 258 °C (lit.); TGA: Td ≥ 310 oC (5% weight loss)
Colour White powder/crystals

*Sublimation is a technique used to obtain ultra pure-grade chemicals. For more details about sublimation, please refer to the Sublimed Materials.

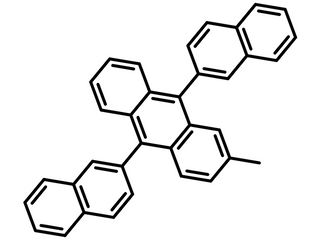

Chemical Structure

madn chemical structure, 804560-00-7
Chemical structure of 2-Methyl-9,10-bis(naphthalen-2-yl)anthracene (MADN)

Device Structure(s)

Device structure ITO/CFx/MADN (60 nm)/Alq3:1%C545T (37.5 nm)/Alq3 (37.5 nm)/LiF (1 nm)/Al (150 nm) [2]
Colour Green green light emitting device
Luminance@6.6V 4366 cd/m2
Current Efficiency@20mA/cm2 21.8 cd/A
Power Efficiency@20mA/cm2 10.4 lm W−1
EQE@20mA/cm2 5.8%
Device structure ITO/CFx/c-HTL (40nm)/NPB (10nm)/MADN:5%BD1 (40nm)/Alq3 (10nm)/Al-LiF [3]
Colour Deep Blue deep blue light emitting device
Luminance@6.8V 1080 cd/m2
Current Efficiency@20mA/cm2 5.4 cd/A
Power Efficiency@20mA/cm2 2.5 lm W−1
EQE@20mA/cm2 5.1%
Device structure ITO/NPD (40 nm)/MADN:1wt% C545T (20 nm)/B3PyPB (40 nm)/LiF/Al [4]
Colour Green green light emitting device
Max. EQE 6.0%
Device structure ITO/TAPC (35 nm)/MADN + 6 wt%DPAVBi (20 nm)/B3PyPB (40 nm)/LiF (1 nm)/Al (80 nm) [4]
Colour Blue blue light emitting device
EQE@100 cd/m2 8.2%

*For chemical structure information, please refer to the cited references

Pricing

Grade Order Code Quantity Price
Sublimed (>99.0%) M2092A1 1 g £290
Sublimed (>99.0%) M2092A1 5 g £1200

MSDS Documentation

MADN MSDSMADN MSDS sheet

Literature and Reviews

  1. Highly efficient and stable sky blue organic light-emitting devices, M-F. Lin et al., Appl. Phys. Lett. 89, 121913 (2006); doi: 10.1063/1.2356903.
  2. Study of efficient and stable organic light-emitting diodes with 2-methyl-9,10-di(2-naphthyl)anthracene as hole-transport material by admittance spectroscopy, M-H. Ho et al., Appl. Phys. Lett. 94, 023306 (2009); doi: 10.1063/1.3072616.
  3. Highly Efficient, Deep-Blue Doped Organic Light-Emitting Devices, M-T. Lee et al., Adv. Mater.,17, 2493–2497 (2005); DOI: 10.1002/adma.200501169.
