PBDD4T-2F
CAS Number 1890205-85-2
Luminosyn™ Polymers, OPV Polymers, Semiconducting Polymers, Materials
For Highly Efficient OPV Devices
High purity and available online for priority dispatch
Overview | Specifications | MSDS | Literature and Reviews | Technical Support
PBDD4T-2F (CAS 1890205-85-2) is a polymer semiconductor developed for OPV applications, including both fullerene and non-fullerene polymer solar cells, with an efficiency of over 9% [1]. It has been built into tandem solar cells, and a PCE reaching 13% was reported with the following structure: PBDD4T-2F:PC71BM (front cell) & PBDTTT-E-T:IEICO (rear cell) [2].
When compared to PBDD4T, it has a stronger tendency to aggregate in solution, a stronger π–π stacking compact in solid thin-films, and shows a deeper HOMO energy level of -5.39 eV. PBDD4T-2F finds applications in polymer solar cells with both fullerene and non-fullerene acceptors (such as ITIC and P(NDI2OD-T2) respectively) with highly efficient device performances.
Contact us for large orders of 5-10 grams, available with a lead time of 4-6 weeks.
The Luminosyn™ Range
High Purity Materials: Purified by Soxhlet extraction with methanol, hexane, and chlorobenzene under argon atmosphere.Batch-Specific Data: Confidence in your materials with batch-specific GPC data for your thesis or publications.Large Quantity Orders: Plan your experiments with confidence using polymers from the same batch.General Information
| Full Name | Poly[[5,7-bis(2-ethylhexyl)-4,8-dioxo-4H,8H-benzo[1,2-c:4,5-c']dithiophene-1,3-diyl][3,3'''-bis(2-ethylhexyl)-3'',4'-difluoro[2,2':5',2'':5'',2'''-quaterthiophene]-5,5'''-diyl]] |
|---|---|
| Synonyms | BDD4T-2F, PBDD-ff4T |
| Chemical Formula | (C58H72F2O2S6)n |
| CAS Number | 1890205-85-2 |
| HOMO / LUMO | HOMO = -5.39 eV, Eg = 1.76 eV [1] |
| Classification or Family | Polythiophenes, Organic n-type semiconducting materials, Organic Photovoltaics, Polymer solar cells, Tandem Solar Cells, Electron-acceptor polymers, OFETs, Perovskite solar cells, All-polymer solar cells. |
| Soluble In | Chloroform, chlorobenzene, dichlorobenzene |
| Recommended Processing Solvents at 10mg/ml |
Dichlorobenzene or Chlorobenzene+dichlorobenzene (1:1 v/v) at elevated temperature ca. 80 °C |
Batch details
| Batch | Mw | Mn | PDI | Stock Info |
|---|---|---|---|---|
| M2050A1 | 138,330 | 53,285 | 2.60 | In Stock |

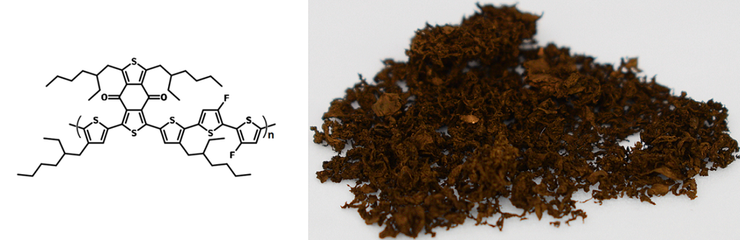

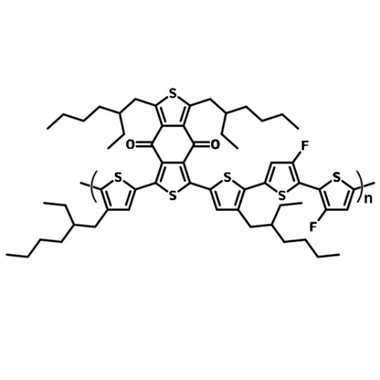

Chemical Structure
MSDS Documentation
PBDD4T-2F MSDS SheetLiterature and Reviews
- A Fluorinated Polythiophene Derivative with Stabilized Backbone Conformation for Highly Efficient Fullerene and Non-Fullerene Polymer Solar Cells, S. Zhang et al., Macromolecules, 49 (8), 2993–3000 (2016); DOI: 10.1021/acs.macromol.6b00248.
- Achieving 12.8% Efficiency by Simultaneously Improving Open-Circuit Voltage and Short-Circuit Current Density in Tandem Organic Solar Cells, Y. Qin et al., Adv. Mater., 29, 1606340 (2017); DOI: 10.1002/adma.201606340.
- Over 11% Efficiency in Tandem Polymer Solar Cells Featured by a Low-Band-Gap Polymer with Fine-Tuned Properties, Z. Zheng, Adv. Mater., 28, 5133–5138 (2016); DOI: 10.1002/adma.201600373.
