Graphene Dispersion
CAS Number 1034343-98-0
2D Materials, Graphene Materials, Low Dimensional Materials, Materials
Please choose the appropriate MSDS from the list below. Links will open in a new window. If your browser does not support PDFs, you will be prompted to download the file instead.
Graphene NMP dispersionGraphene Dispersion for Easy Solution Processing
10 mg/ml, graphene dispersion in NMP, single layer > 99.5% purity
Overview | Product Information | Related Products
Graphene dispersion at Ossila is a homogeneous colloidal solution of graphene in organic solvent. They are predominantly single layer graphene in dispersion.
Graphene dispersion is one of the most convenient ways to handle graphene materials since graphene powers are lightweight and problematic to handle. Chemical vapor deposition (CVD) method has been employed to achieve a smooth continuous graphene single or few-layer film however CVD is an expensive and energy demanding process. Graphene dispersion is ready to be deposited on different substrates via solution processing techniques such as spin, spray, dip, and slot-die coatings. Graphene dispersion can also be easily diluted, with the help of sonication if necessary to break the aggregates and maintain a high ratio of graphene monolayers.
With excellent physical and chemical properties and being described as the strongest materials ever measured, graphene is a truly wonderful material offering great high electron mobilities of over 200,000 cm2 V− 1s− 1 at electron densities of ~ 2 × 1011 cm− 2, high thermal conductivity of ~ 5 × 103 W m− 1 K− 1.
Graphene dispersion in water or N-methyl-2-pyrrolidone (NMP) offers the opportunity to process the graphene materials at ease in a certain concentration at atomic structure level. They can also be solution processed with other materials, i.e. PEDOT:PSS, metal oxides or cement to form composite materials to change or reinforce the physical and chemical properties of other materials. Graphene dispersion can also be freshly diluted to the desired concentrations.
Applications
Graphene dispersions could be used in the following field.
- Solar energy (Al2O3-graphene oxide hybrid nanofluids )
- Supercapacitors (High surface area supercapacitor electrode by graphene dispersion)
- Catalysts
- Biomedicals (Graphene integrated hydrogels as photothermal biomedicine)
- Transparent conductive coatings (Graphene inks for touch screen sensors)
- Composite materials (Graphene reinforced cement composites)
Single Layer Graphene
> 99.5% purity
Worldwide Shipping
Quick and reliable shipping
Low Price
Affordable graphene oxide solutions
Easy Handling
For graphene solution processing
General Information
| CAS number | 1034343-98-0 |
|---|---|
| Chemical formula | CxHy |
| Synonyms | Graphene dispersion, Single layer graphene |
| Classification or Family | 2D semiconducting materials, Carbon nanomaterials, Graphene, Organic electronics |

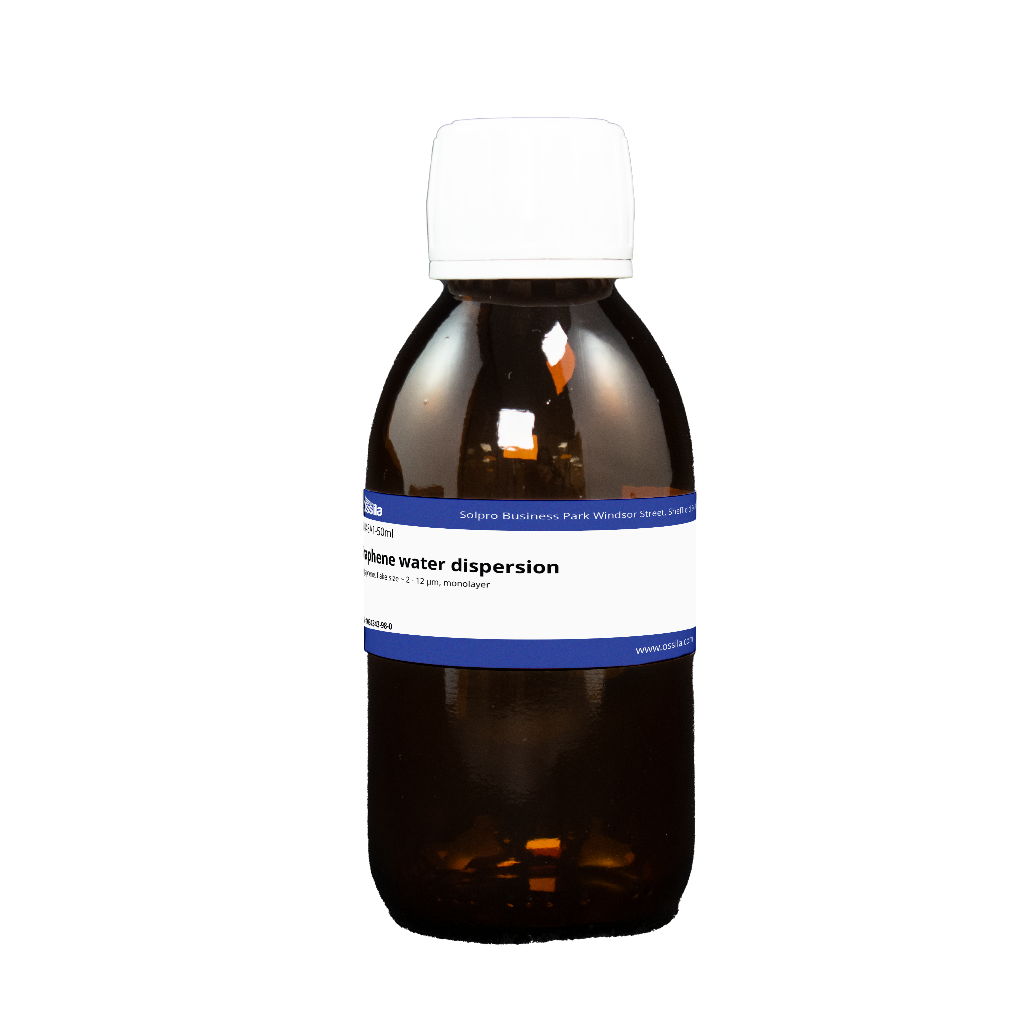

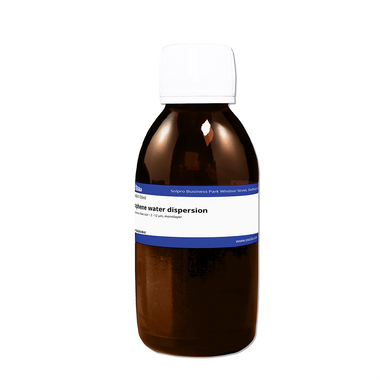

Graphene Dispersion
| Product Code | M2448A1 | M2449A1 |
|---|---|---|
| Concentration | 10 mg/mL | 10 mg/mL |
| Solvent | Water | N-methyl-2-pyrrolidone (NMP) |
| Flake Size | 2 – 12 μm | 2 – 12 μm |
| Flake Thickness | 0.6 – 1.2 nm (monolayer) | 0.6 – 1.2 nm (monolayer) |
| SSA | 600 – 1200 m2/g | 600 – 1200 m2/g |
| Appearance | Black liquid | Black liquid |
| Carbon Content | > 99.5% | > 99.5% |
MSDS Documents
Graphene NMP dispersions MSDS Sheet
Graphene Water Dispersions MSDS Sheet
Literature and Reviews
-
The stability and thermophysical properties of Al2O3-graphene oxide hybrid nanofluids for solar energy applications: Application of robust autoregressive modern machine learning technique, P. Kanti et al., Sol. Energy Mater. Sol. Cells, 253, 112207 (2023); DOI: 10.1016/j.solmat.2023.112207.
-
Aqueous Activated Graphene Dispersions for Deposition of High-Surface Area Supercapacitor Electrodes, V. Skrypnychuk et al., J. Phys. Chem. Lett., 11 (8), 3032–3038 (2020); DOI: 10.1021/acs.jpclett.0c00272.
-
Graphene Integrated Hydrogels Based Biomaterials in Photothermal Biomedicine, L. Phan et al., Nanomaterials, 11, 906 (2021); DOI: 10.3390/nano11040906.
-
Environmentally Friendly Graphene Inks for Touch Screen Sensors, S. Tkachev et al., Adv. Funct. Mater., 31 (33), 2103287 (2021); DOI: 10.1002/adfm.202103287.
- Graphene reinforced cement composites: A review, Y. Lim et al., Constr. Build. Mater., 265, 120312 (2020); DOI: 10.1016/j.conbuildmat.2020.120312.
