FTO Coated Glass (Unpatterned)

Order Code: S301

Price

(excluding Taxes)

£126.00


FTO (Fluorine doped Tin Oxide Glass) is a transparent conductive metal oxide that can be used in the fabrication of transparent electrodes for thin film photovoltaics such as organic photovoltaic, amorphous silicon, cadmium telluride, dye sensitised solar cells, and hybrid perovskites. FTO glass also has a varied range of other applications including touch screen displays, electromagnetic interference/radio frequency interference shielding, heated glass, anti-static coatings, and light emitting diodes. There are several properties of FTO glass that make it suitable for the fabrication of a wide range of optoelectronic devices these include low surface resistivity, high optical transmittance, scratch and abrasion resistant, thermally stable up to high temperatures, and inert to a wide range of chemicals.

Ossila supply three types of FTO coated glass for sale, these are TEC 8 (2.2mm thick glass), TEC 10 (1.1mm/3.2mm thick glass), and TEC 15 (2.2mm thick glass); each offer different conductivities and surface roughness, that suit a variety of applications. For patterning of the FTO we recommend the use of Ossila’s simple chemical resistant stickers to allow for the fabrication of 8 pixel devices. Specifications and data files for Ossila’s range of FTO coated glass can be seen below along with processing guides for the etching and cleaning of the FTO coating.

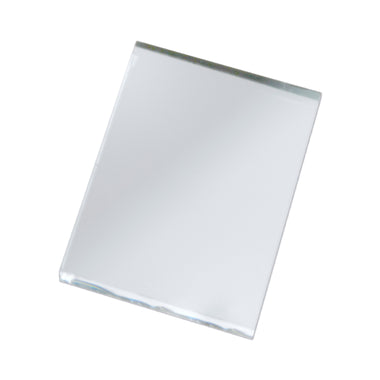

TEC 8

Ossila’s TEC 8 FTO offers the highest conductivity for applications where low series resistances are crucial.

TEC 8 Specification and Data Files

Size

20mm x 15mm

Thickness

2.2mm

Glass Type

Soda Lime Glass

FTO Type

Pilkington NSG Tec A7

FTO Thickness

600nm

FTO Resistance

6-9Ω.□-1

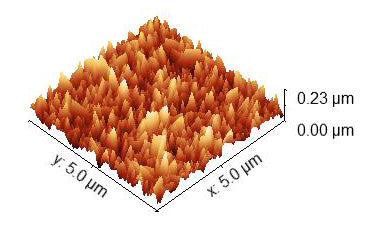

FTO Roughness

34.8nm

FTO Work Function

4.4eV-4.7eV

FTO Transmission 76.4%

Packaging

5x stacks of 20 separated by cleanroom paper

 Transmission of TEC 8

TEC 8 FTO Glass Transmission

TEC 10

Ossila’s TEC 10 FTO offers both high conductivity and high surface uniformity where both properties are crucial for the fabrication of high performance electronic devices.

TEC 10 Specification and Data Files

Size

20mm x 15mm

Thickness

1.1mm/3.2mm

Glass Type

Soda Lime Glass

FTO Type

NSG Tec 10

FTO Thickness

750nm

FTO Resistance

11-13Ω.□-1

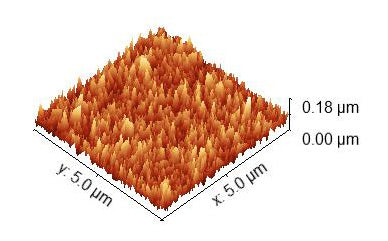

FTO Roughness

 45nm

FTO Work Function 4.4eV - 4.7eV
FTO Transmission 83.4%

Packaging

Stacks of 20 separated by cleanroom paper

 Transmission of TEC 10

TEC 10 FTO Glass Transmission

TEC 15

Ossila’s TEC 15 FTO offers the highest surface uniformity for applications where thin films are to be used.

TEC 15 Specification and Data Files

Size

20mm x 15mm

Thickness

2.2mm

Glass Type

Soda Lime Glass

FTO Type

Pilkington NSG Tec 15

FTO Thickness

200nm

FTO Resistance

12-14Ω.□-1

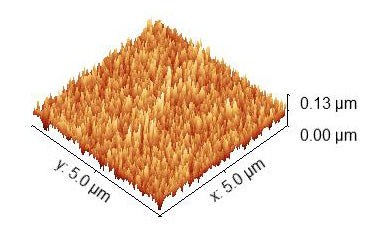

FTO Roughness

12.5nm

FTO Work Function

4.4eV-4.7eV

FTO Transmission 83.5%

Packaging

5x stacks of 20 separated by cleanroom paper

 Transmission of TEC 15

TEC 15 FTO Glass Transmission

FTO Processing Guide

FTO Coated Glass Etching

For etching of the FTO coated glass you will need the following products: Tec 7/Tec 10/ Tec 15 FTO glass, 8 Pixel Etch Resistant Stickers, Zinc Powder, Hydrochloric Acid, Cotton Buds, and Multimeter. The following is a step-by-step guide for the etching of FTO coatings, this can be downloaded as a PDF; in addition an instructional video is provided.

  • Prepare a 2M HCl solution

  • Place the 8 Pixel Etch Resistant Stickers onto the FTO glass substrate.

  • Coat the FTO glass substrate in a layer of Zinc Powder.

  • Cover the remaining Zinc Powder with the 2M HCl solution and wait for the reaction to finish.

  • Using a cotton bud firmly wipe away the etched area of the substrate and rinse with DI water.

  • Using a multimeter check the resistance across the etched area, this should be in excess of MOhms. If not repeat the etching steps again.





FTO Coated Glass Cleaning

For cleaning of the FTO coated glass after etching you will need the following products: FTO glass, 1.1mm Substrate Rack/2.2mm Substrate Rack (product coming soon), Hellmanex iii, isopropyl alcohol, and UV Ozone Cleaner. The following is a step-by-step guide for cleaning FTO coated glass, this can be downloaded as a PDF; in addition an instructional video is provided.

  • Sonicate etched FTO Glass for 5 minutes in hot (70°C) DI water with the addition of 1% Hellmanex.

  • Dump-rinse twice in boiling DI water.

  • Sonicate etched FTO Glass for 5 minutes in Isopropyl alcohol.

  • Dump-rinse twice in boiling DI water.

  • Dry etched FTO Glass using filtered compressed gas.

  • Place the etched FTO Glass into the UV Ozone cleaner and leave for 10 minutes.





To the best of our knowledge the technical information provided here is accurate. However, Ossila assume no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
