Product Code E521
Price $100 ex. VAT

Quality assured

Expert support

Volume discounts

Worldwide shipping

Fast and secure


A measurement aperture mask with electrochemically-etched holes to define the active area of a pixel during measurement and to stop indirect/scattered light when using our push-fit connection boards. Useful for OPV measurements under solar simulators or OLEDs with luminance meters. For use with our 8 Pixel OPV/OLED substrates (S211). Comes in either8-pixel or single-pixel form.

Looking for generation I (E141/2) or II (E361/2/3) aperture masks for S101 or S171 substrates?

We have discontinued our generation I and generation II substrates and masks. The replacement 8-pixel design allows you to create either eight small individual pixels or a single large pixel. Contact us for more information, technical support and advice, or for help migrating to the new system.

Mask Specifications

8-Pixel

Apertures 8 x 2.56 mm2
Aperture tolerance ±5%
Outer dimensions 15 mm x 20 mm x 0.2 mm

measurement aperture mask measurement aperture mask

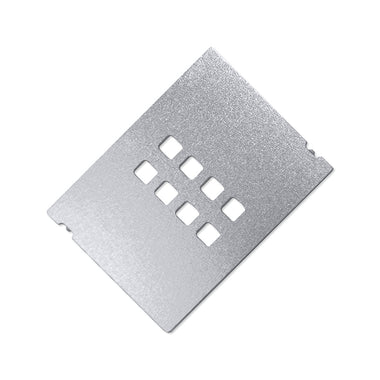

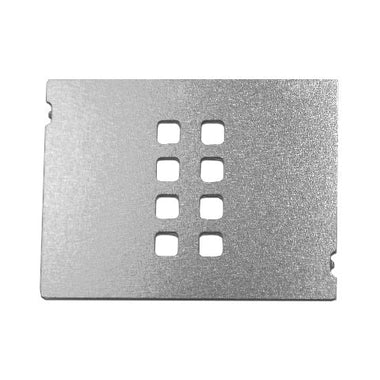

Measurement aperture mask (left). Technical drawing (right)







Single-Pixel

Aperture 40.05 mm 2
Aperture tolerance ±5%
Outer dimensions

15 mm x 20 mm x 0.2 mm



Measurement aperture (left). Technical drawing (right)


To the best of our knowledge the information provided here is accurate. The values provided are typical at the time of manufacture and may vary over time and from batch to batch. Products may have minor cosmetic differences (e.g. to the branding) compared to the photos on our website. All products are for laboratory and research and development use only.
