Push-Fit Test Board, 25mm Square
Fast and secure electrical connections.
Make PV and OLED device testing easy.
The Push-Fit Test Board for 25mm Square Substrates is part of Ossila's award winning prototyping platform for photovoltaic devices.
The connection pins on the circuit board align with the contacts on our glass ITO substrates. This makes connecting to devices quick and easy.
Quickly switch between the pixels of a completed device, and electrically test via the BNC connection.
The following video shows the fabrication and testing of devices using the PV and OLED device prototyping substrate system.
|Outer Dimensions||100mm x 100mm|
|Compatible Substrates||PV and OLED ITO Glass Substrates (25mm Square - S2006C1)
Unpatterned ITO Glass Substrates (25mm Square - S2006B1)
25mm Square Substrate Test Board

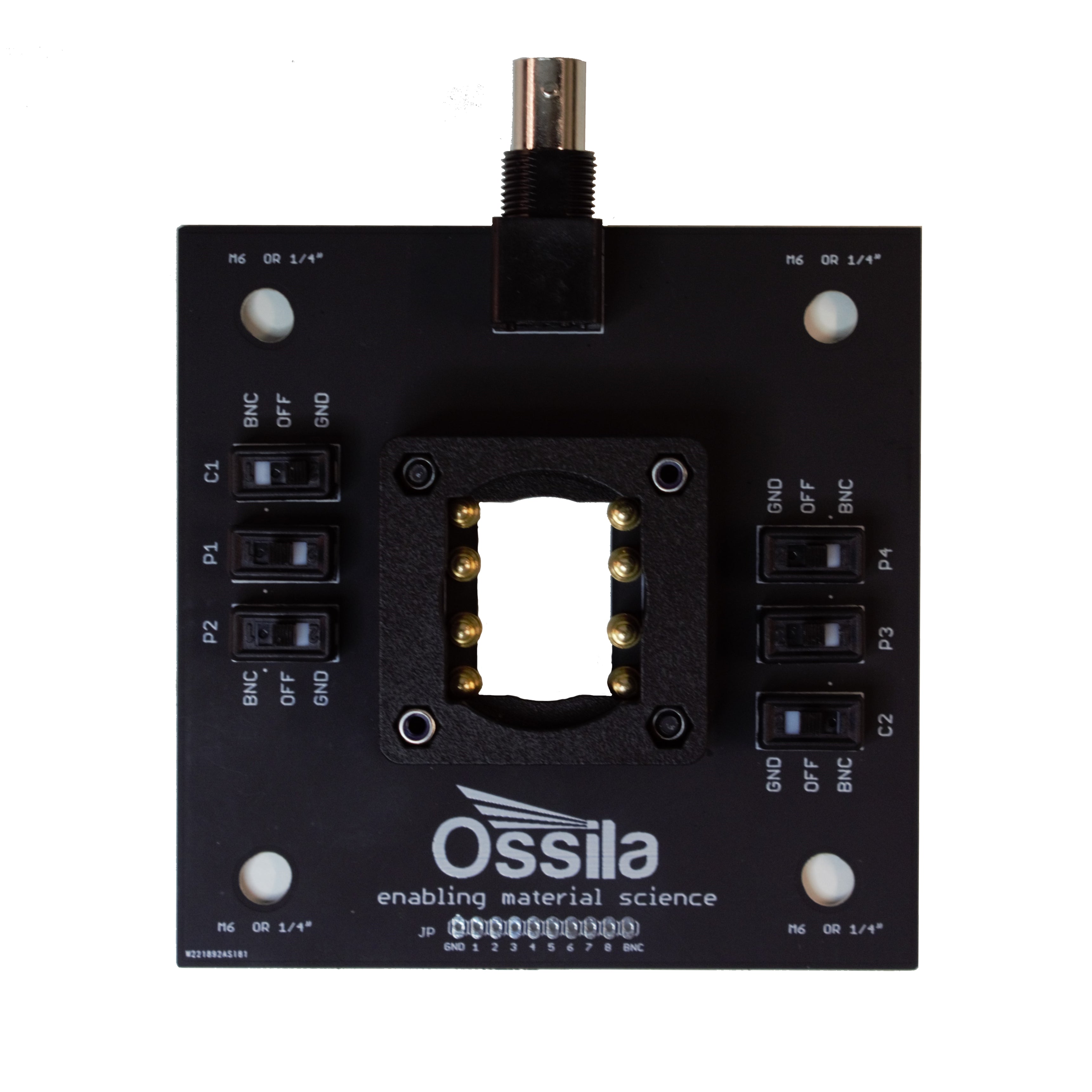

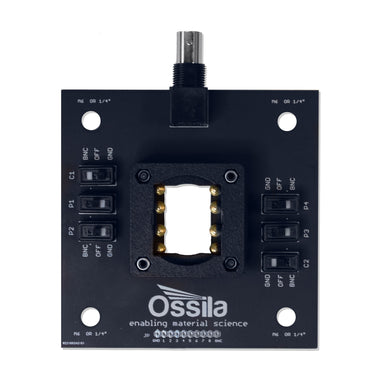

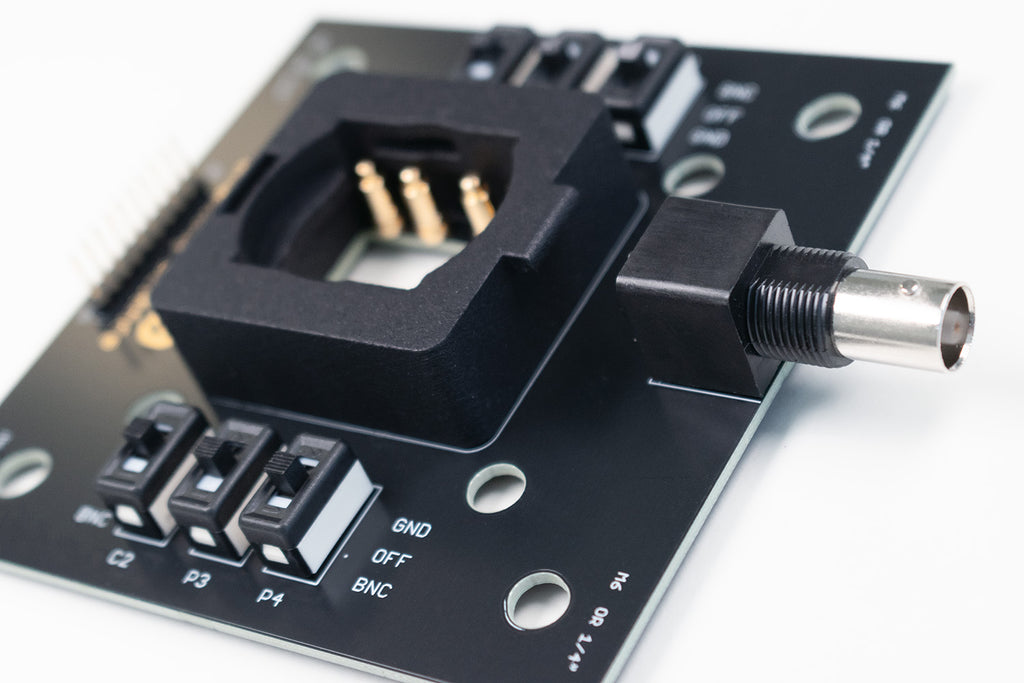

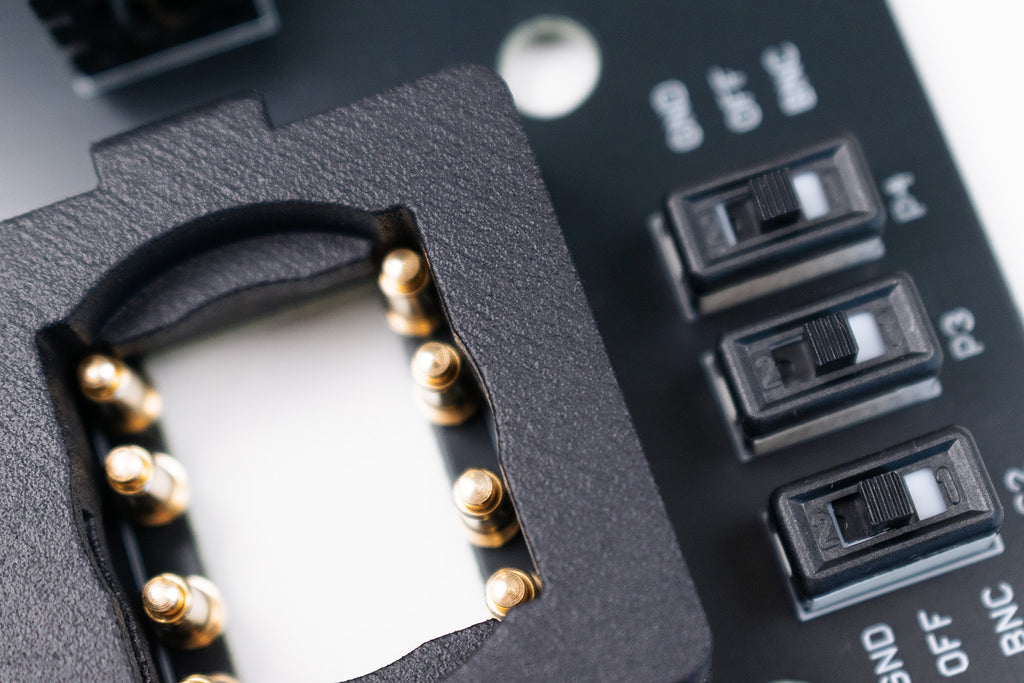

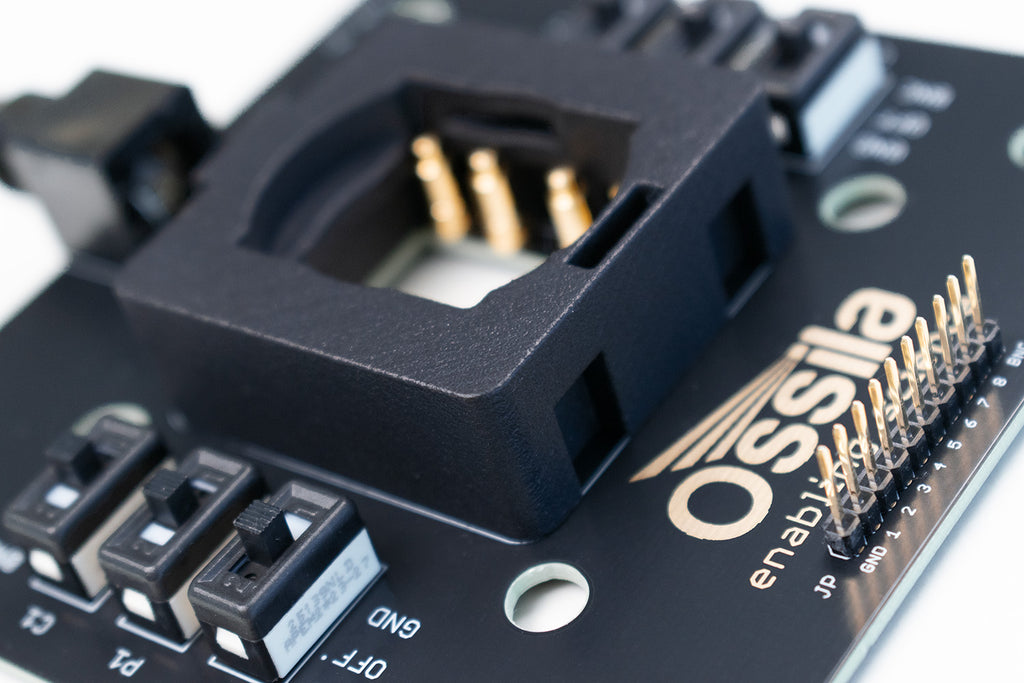

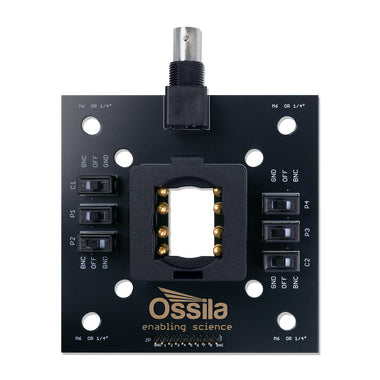

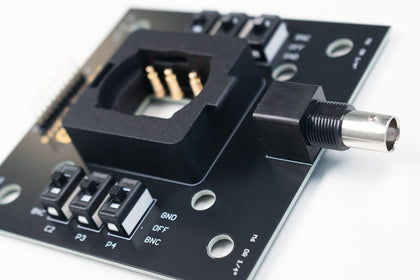

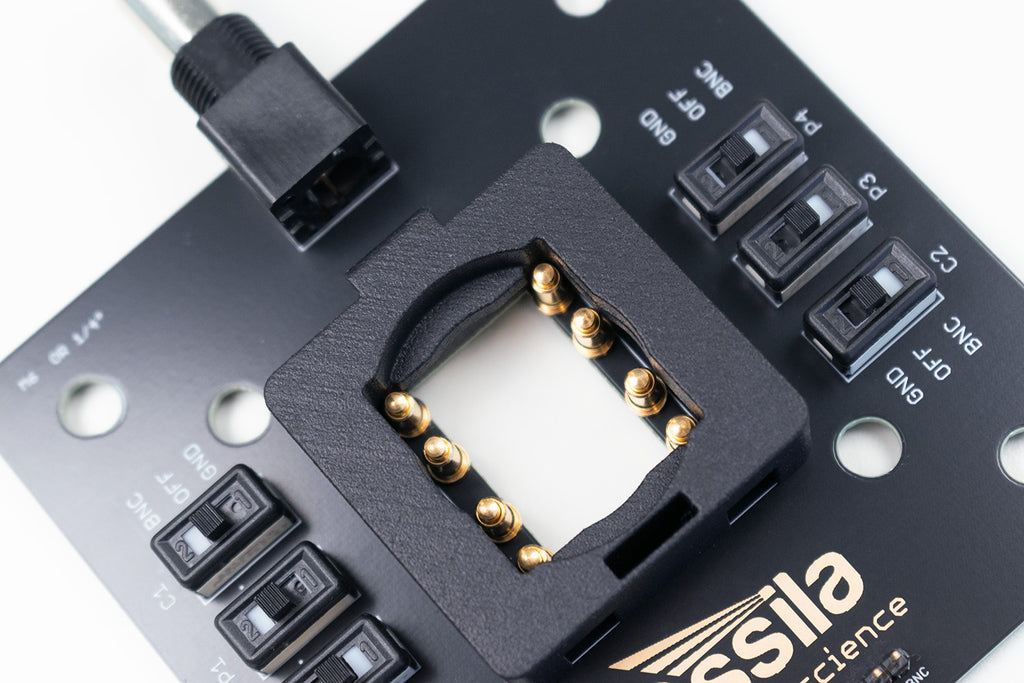

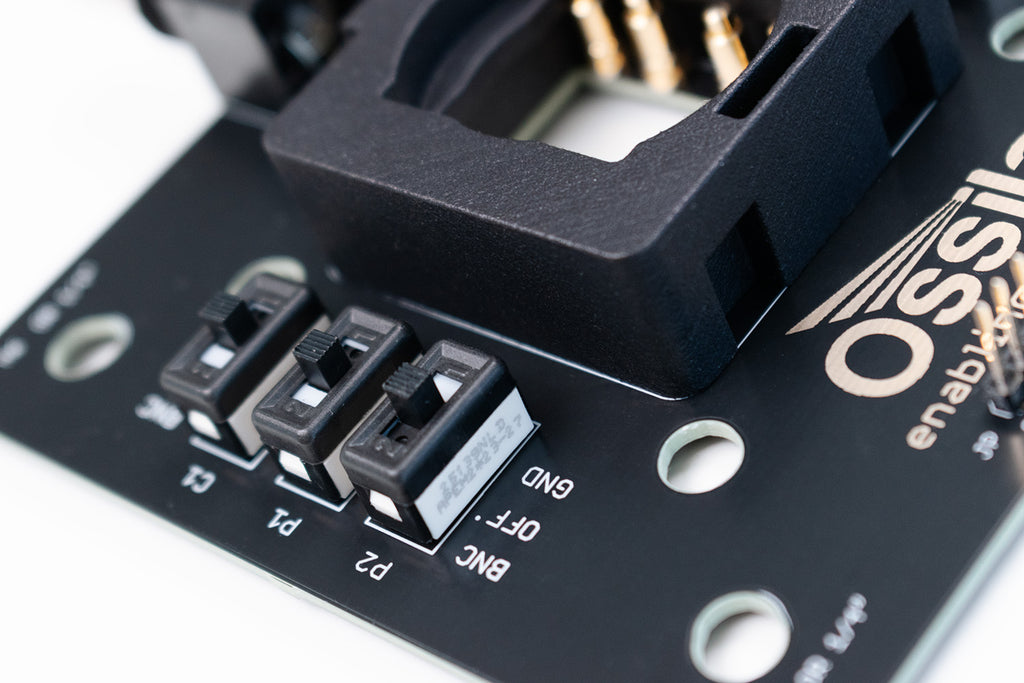

The S2006 deposition masks are part of Ossila's award winning prototyping platform for photovoltaic devices and light emitting diodes (LEDs). The Contact Pins on the test board are aligned with the electrodes on the substrate. Each electrode has an associated switch, which connects it to either the postive (BNC) or ground (GND) of the BNC connection. There are four switches for pixel electrodes and two switches for the common ITO electrode.
