Spiro-OMeTAD (Spiro-MeOTAD)
CAS Number 207739-72-8
DSSC Dyes & Electrolytes, Hole Transport Layer Materials, Perovskite Interface Materials, Charge Transport Layer Materials,
High Performance Hole Transport Layer Material
With excellent electronic properties and processability for solar cells and OLEDs
Specifications | MSDS | Pricing | Literature | Related Products | Technical Support
Spiro-OMeTAD (or Spiro-MeOTAD) is one of the most studied and suitable hole transport layer materials due to its facile implementation and high performance in organic-inorganic electronic devices. The spiro-linked molecule provides high glass transition temperature (Tg), morphological stabilit, and easy processability, while maintaining good electronic properties. Widely used in solid-state dye-sensitized solar cells, organic light-emitting diodes, perovskite solar cells, and polymer-based organic solar cells, it is an ideal choice across many areas of research.
High-purity Spiro-OMeTAD in useful quanities is in stock for immediate dispatch with worldwide delivery. Please contact us for bulk orders over 100 g.
Spiro-OMeTAD from Ossila was used in the high-impact papers (IF 29.37), Interfacing Pristine C60 onto TiO2 for Viable Flexibility in Perovskite Solar Cells by a Low-Temperature All-Solution Process, Y. Zhou et al., Adv. Energy Mater., 1800399 (2018); and (IF 39.714), In situ simultaneous photovoltaic and structural evolution of perovskite solar cells during film formation, M. Alsari et al., Energy Environ. Sci., 11, 383-393 (2018).
Spirobifluorene HTL Material
Facile implementation & high performance in electronic devices
Simple Worldwide Shipping
Reliable delivery via tracked
courier as standard
Ideal for Facile Coupling Reactions
High glass transition temperature
and morphological stability
High Purities Available
Guaranteed 99.5% (sublimed)
and 99% (unsublimed)
General Information
| CAS Number | 207739-72-8 |
|---|---|
| Molecular Formula | C81H68N4O8 |
| Full Name | 2,2',7,7'-Tetrakis[N,N-di(4-methoxyphenyl)amino]-9,9'-spirobifluorene |
| Synonyms |
Spiro-MeOTAD |
| Mw | 1225.43 g/mol |
| UV Absorption Max | 306 nm, 385 nm (in CH2Cl2) |
| PL Max | 429 nm (in CH2Cl2) |
| HOMO / LUMO | HOMO = -5.0 eV, LUMO = -2.05 eV (HOMO - Eg) |
| Eg (optical) | 2.95 eV |

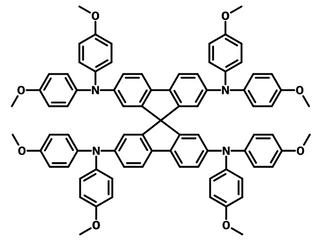

Chemical Structure
Product Details
| Purity |
Sublimed: >99.5% (HPLC) Unsublimed: >99.0% (HPLC) |
|---|---|
| Melting Point | 240 °C (approx.) |
| TGA | >360 °C (0.5% weight loss) |
| Appearance | White to pale yellow powder |
*Sublimation is a technique used to obtain ultra pure-grade chemicals. For more details about sublimation, please see our collection of sublimed materials .
Characterization
MSDS Document
Spiro-OMeTAD MSDS SheetPricing
Unsublimed
| Product Code | Purity | Quantity | Price |
|---|---|---|---|
| M291 | >99.0% purity | 500 mg | £210 |
| 1 g | £350 | ||
| 5 g | £1560 | ||
| 10 g | £2500 |
Sublimed
| Product Code | Purity | Quantity | Price |
|---|---|---|---|
| M292 | Sublimed (>99.5% purity) | 500 mg | £300 |
| 1 g | £480 | ||
| 5 g | £2100 | ||
| 10 g | £4000 |
References
- Interface engineering of highly efficient perovskite solar cells, Huanping Zhou et al., Science, V 34, p.546 (2014).
- Sequential deposition as a route to high-performance perovskite-sensitized solar cells, Julian Burschka et al., Nature, V499 p.316 (2013).
- Nanostructured TiO2 /CH3NH3PbI3 heterojunction solar cells employing spiro-OMeTAD/Co-complex as hole-transporting material, Jun Hong Noh et al., J. Mater. Chem. A, 1, 11842-11847, DOI: 10.1039/C3TA12681A (2013).
