Precision Slot Die Coating for All Laboratories
Scale up your thin film processing with our compact and affordable slot die coater
Overview | Specifications | Features | Gallery | In the Box | Accessories | Resources and Support
Smaller than other models on the market, but just as precise. The Ossila Slot Die Coater is a complete slot die system, including an integrated syringe pump for synchronised start and end times.
With a wide range of stage speeds, improved levelling, and a large coating area, our newest slot die coater model was designed with advanced specifications to enhance the uniformity of your films and consistently produce and reproduce high quality films with ease.
Designed for beginners and experts, you can easily program multi-step processes to independently control the temperature, substrate speed, alignment, solution flow rate, channel thickness, head height, and more. Save 20 of these programmes, each with up to 50 steps, for easy and repeatable experiments.
Precision Alignment
3-point levelling system
Space-Saving Design
Fits in any lab set up
Quick Set Up
Plug in and start immediately
High Uniformity
Achieve highly even coatings
Easy to Use
User friendly design
Low Operating Costs
Low energy consumption
Lab Proof
Durable design to last
Two-Year Warranty
Buy with confidence
Specifications
| Slot Die Coater Version 2 | Slot Die Coater Version 1 | |
|---|---|---|
| Maximum Hotplate Temperature | 140°C (284 °F) | 120 °C (248 °F) |
| Stage Surface Roughness (RMS) | <3 μm* | <3 μm* |
| Stage Surface Flatness | <20 μm* | <20 μm* |
| Linear Motion Levelness | 0.05% variation (50μm/100mm travel)* | 0.05% variation (50μm/100mm travel)* |
| Stage Travel Length | 150 mm (maximum) | 100 mm (maximum) |
| Maximum Head Width | 100 mm | 50 mm |
| Minimum Stage Speed | 50 μm.s-1 | 100 μm.s-1 |
| Maximum Stage Speed | 75 mm.s-1 | 50 mm.s-1 |
| Maximum Head to Substrate Travel Distance | 13 mm | 13 mm |
| Power Supply | DC 24 V, 6.2 A, via 100 – 240 V 50/60 Hz power adapter | DC 24 V, 6.2 A, via 100 – 240 V 50/60 Hz power adapter |
| Dimensions (D x W x H) | 360 mm x 280 mm x 190 mm (14.2" x 11" x 7.5") | 360 mm x 280 mm x 190 mm (14.2" x 11" x 7.5") |
| Weight | 10.35 kg | 9.2 kg |
* Values determined at a stage temperature of 21 °C (69.8 °F).
Integrated Syringe Pump
| Slot Die Coater Version 2 | Slot Die Coater Version 1 | |
|---|---|---|
| Minimum Syringe Speed | 6 μm.s-1 | 12 μm.s-1 |
| Maximum Syringe Speed | 7.5 mm.s-1 | 5 mm.s-1 |
Slot Die Head Specification
| 50 mm Head | 100 mm Head | |
|---|---|---|
| Slot Die Head Material | Stainless Steel | Stainless Steel |
| Maximum Coating Width | 50 mm | 100 mm |
| Sets of Shims |
25mm wide, 100 μm Thick (x5) 25mm wide, 50 μm Thick (x5) 50mm wide, 100 μm Thick (x5) 50mm wide, 50 μm Thick (x5) |
75mm wide, 100 μm Thick (x5) 75mm wide, 50 μm Thick (x5) 100mm wide, 100 μm Thick (x5) 100mm wide, 50 μm Thick (x5) |
| Sets of Meniscus Guides |
25mm wide, 0.5mm 1mm and 1.5mm protrusions 50mm wide, 0.5mm 1mm and 1.5mm protrusions |
75mm wide, 0.5mm 1mm and 1.5mm protrusions 100mm wide, 0.5mm 1mm and 1.5mm protrusions |
| Luer Lock Adapter | Stainless Steel M5 to Luer Lock Adapter | Stainless Steel M5 to Luer Lock Adapter |
| Tubing and Connector Material | PTFE Tubing, high density PP Luer lock connectors, stainless steel Luer lock to thread connector | PTFE Tubing, high density PP Luer lock connectors, stainless steel Luer lock to thread connector |
User Manual
Slot Die Coater user manualSlot Die Coater Features
Variable Channel Thickness
Increase the range of different solutions that can be processed with a single slot die head. Interchangeable stainless steel shims give you control to change the thickness of the slot die channel in intervals of 50μm and 100μm.

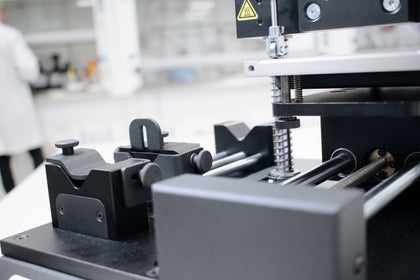

Uniform Flow Rates and Thicknesses
The Ossila Slot Die Coater has an integrated syringe pump for accurate and repeatable film thicknesses. You can precisely control the amount of solution entering the system. Plus, the in-built software makes programming synchronised starting times easy.
Temperature Control
The hotplate integrate into the stage enables you to control the temperature of the substrate. With this, you can improve wetting by reducing the surface tension or customize your drying rates. For environments with high air flow, you can set a temperature offset to correct for differences between the substrate and hotplate.
Wide Range of Substrate Speeds
Our motorised stage provides smooth, continuous movement across a range of speeds. The motor can achieve speeds as low as 50 μm.s-1 and as high as 75 mm.s-1, creating a wide processing window for you to control the meniscus.

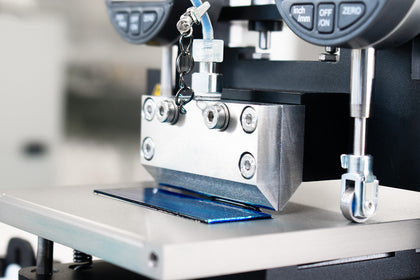

Head Height Control
Adjust the slot die head relative to the stage with the two micrometers on top of the head carriage. By varying the gap height, you can improve the stability of the meniscus and alter the minimum wet film thickness.

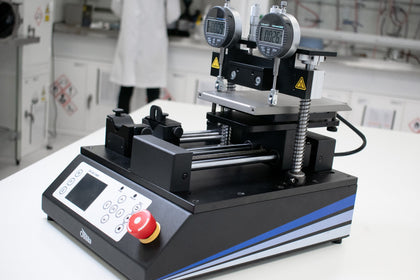

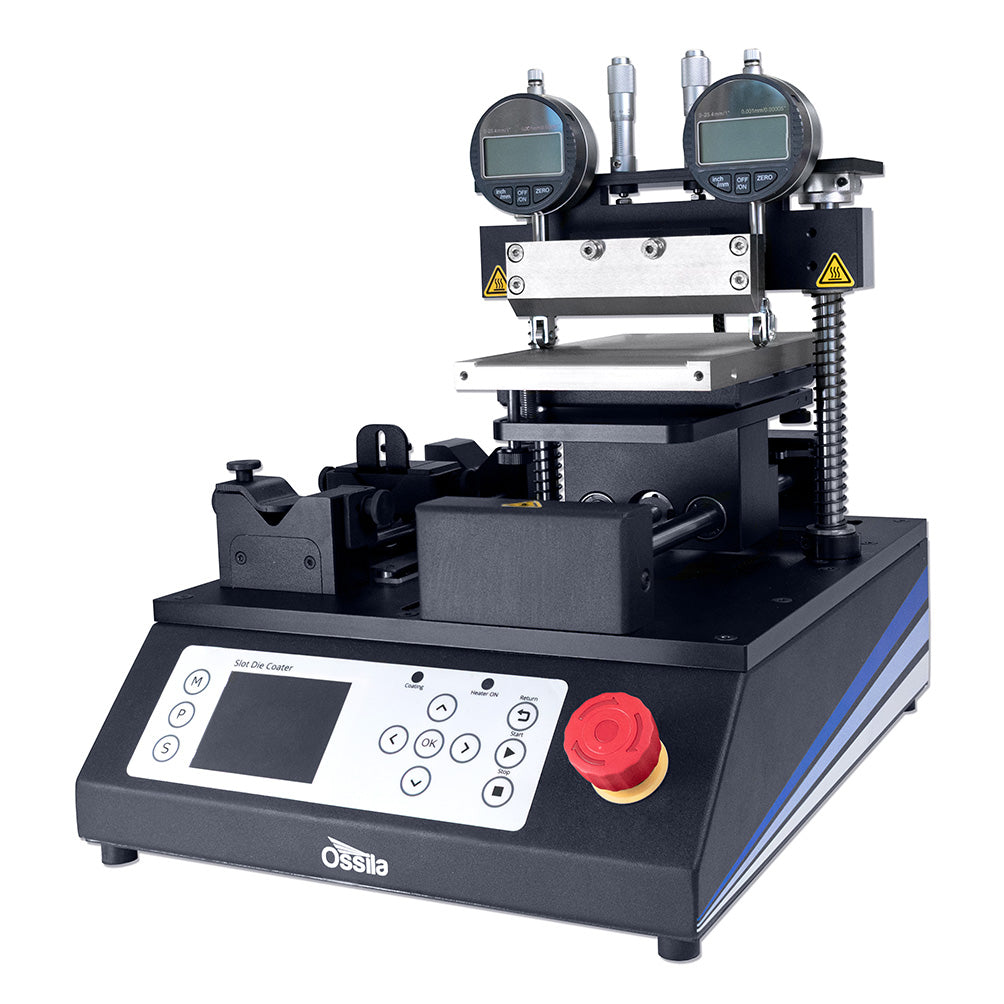

Slot Die Coater Gallery*
* Product photos of the Ossila Slot Die Coater Version 2
In the Box
- Slot-Die Coating System
- Slot die head (including screw fittings and luer lock adapter)*
- Meniscus guide set*
- Shim set*
- Slot die coater PTFE tubing (pack of 5)*
- 5 ml (6 ml) Norm-Ject Disposable Luer Lock Syringe (pack of 10)*
- Power supply
* Also available to be purchased separately
Accessories and Related Products
Resources and Support
Upgrading the Ossila Slot Die Coater
The Ossila Slot Die Coater is a complete slot die system, with an integrated syringe pump for synchronised start and end times.
