PNF222


Product Code M2052A2
Price £231.00 ex. VAT

PNF222, poly[[1,​2,​3,​6,​7,​8-​hexahydro-​2,​7-​bis(2-​octyldodecyl)​-​1,​3,​6,​8-​tetraoxobenzophenanthroline-​4,​9-​diyl]​(3,​3'-​difluoro[2,​2'-​bithiophene]​-​5,​5'-​diyl)​], is commonly used as polymer acceptor in all polymer solar cells or OFETs material.

Compared to PNDI(2OD)2T, with the introduction of the fluorine atoms on the electronic structure of the polymer, PNF222 has lower electronic energy levels due to the strong electronegativity of its fluorine atoms. In turn, this results in higher Voc, Jsc and FF for OPV devices.

It has also been reported that PCE of Si-PEDOT:PSS solar cells was promoted from 12.6% to 14.5% while a PNF222 polymer interlayer was incorporated, with the polymer orientation playing a critical role on the polymer–Si contact quality [3].

Luminosyn™ PNF222

Luminosyn™ PNF222 is now available.

High molecular weight and high purity
PNF222 is purified by soxhlet extraction with methanol, hexane and chlorobenzene under argon atmosphere

Batch-specific GPC data
Have confidence in what you are ordering; batch-specific GPC data for your thesis or publications

Large quantity orders
Plan your experiments with confidence with polymers from the same batch

General Information

Full name Poly [[1,​2,​3,​6,​7,​8-​hexahydro-​2,​7-​bis(2-​octyldodecyl)​-​1,​3,​6,​8-​tetraoxobenzo[lmn]​[3,​8]​phenanthroline-​4,​9-​diyl]​(3,​3'-​difluoro[2,​2'-​bithiophene]​-​5,​5'-​diyl)​]
Synonyms PNDI-2F, P(NDI2OD-T2F), PNDI(2OD)2T-2F, P(NDI2OD-FT2)
CAS number 1773524-46-1
Chemical formula (C62H86F2N2O4S2)n
Molecular weight See Batch Details table above
HOMO / LUMO HOMO = - 5.99 eV, LUMO = - 3.90 eV [1]
Suggesting solvents Chlorobenzene, dichlorobenzene
Classification / Family PNDI polymers, Bithiophene, Heterocyclic five-membered ring, Organic semiconducting materials, Low band gap polymers, Non-fullerene acceptors (NFAs), Organic photovoltaics, All-polymer solar cells, OFETs

Chemical Structure

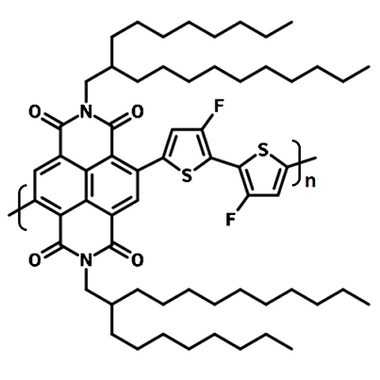

PNF222 chemical structure

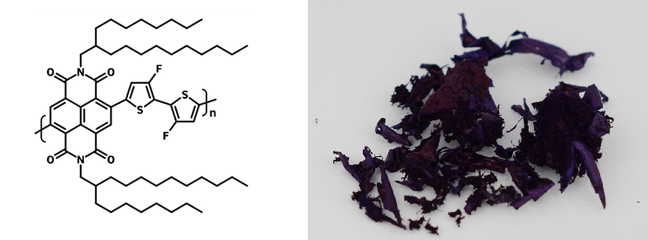

Chemical structure and product image of PNF222

MSDS Documentation

PNF222 MSDSPNF222 MSDS Sheet

Pricing

Batch Quantity Price
M2052A2 50 mg ]] £231.00
M2052A2 100 mg £370.00
M2052A2 250 mg £739.00
M2052A2 500 mg £1330.00
M2052A2 1 g £2390.00
M2052A2 5 g / 10 g* Please enquire

*for 5 - 10 grams order quantity, the lead time is 4-6 weeks.

Batch Details

Batch Mw Mn PDI Stock Info
M2052A1 98,436 55,594 1.77 Discontinued
M2052A2 163,267 81,850 1.99 In Stock

Literature and Reviews

  1. Controlling Energy Levels and Blend Morphology for All-Polymer Solar Cells via Fluorination of a Naphthalene Diimide-Based Copolymer Acceptor,  M. A. Uddin et al., Macromolecules, 49 (17), 6374–6383 (2016); DOI: 10.1021/acs.macromol.6b01414.
  2. Fluoro-Substituted n-Type Conjugated Polymers for Additive-Free All-Polymer Bulk Heterojunction Solar Cells with High Power Conversion Efficiency of 6.71%, J. Jung et al., Adv. Mater., 27, 3310–3317 (2015); DOI: 10.1002/adma.20150121.
  3. Naphthalene Diimide-Based n-Type Polymers: Efficient Rear Interlayers for High-Performance Silicon–Organic Heterojunction Solar Cells, Y. Han et al., ACS Nano, 11 (7), 7215–7222 (2017); DOI: 10.1021/acsnano.7b03090.
  4. Bulk Electron Transport and Charge Injection in a High Mobility n-Type Semiconducting Polymer, R. Steyrleuthner et al., Adv. Mater., 22, 2799–2803 (2010); DOI: 10.1002/adma.201000232.n2200.

To the best of our knowledge the information provided here is accurate. However, Ossila assume no liability for the accuracy of this page. The values provided are typical at the time of manufacture and may vary over time and from batch to batch. All products are for laboratory and research and development use only, and may not be used for any other purpose including health care, pharmaceuticals, cosmetics, food or commercial applications.
