Superior Electron Blocking Property
A HTL material for OLEDs, especially for quantum dot light-emitting diodes
Specifications | MSDS | Literature and Reviews | Technical Support

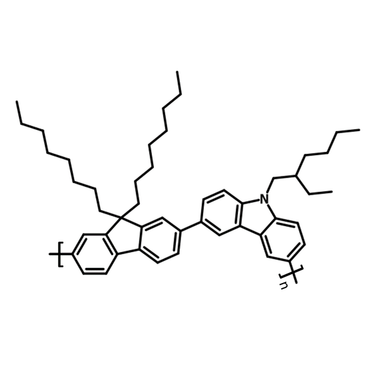

PF8Cz is a copolymer consisting of dioctyl-fluorene and ethylhexyl-carbazole. It can be synthesized from 3,6-dibromo-9-(2-ethylhexyl)-9H-carbazole and 2,2'-(9,9-dioctyl-9H-fluorene-2,7-diyl)bis(4,4,5,5-tetramethyl-1,3,2-dioxaborolane) through a palladium-catalyzed Suzuki coupling reaction.
Due to the rigidity of fluorene and carbazole, PF8Cz has a lower energetic disorder than TFB. It also has a HOMO onset energy level at −5.4 eV and LUMO energy level of
−2.3 eV, showing an optical bandgap of 3.06 eV. A band-bending characteristics study of PF8Cz has been conducted using on low-work-function samarium (Sm) substrates. The surface work function of the PF8Cz film on Sm are almost constant, suggesting that PF8Cz has a superior electron-blocking property.
Electron-Blocking HTL Material
For organic and polymer solar cells
Simple Worldwide shipping
Reliable delivery via tracked courier
Rigid Polymeric Structure
Resulting in low energetic disorder
Optical Bandgap of 3.06 eV
HOMO = −5.4 eV, LUMO = −2.3 eV
The Luminosyn™ Range
High Purity Materials: Purified by Soxhlet extraction with methanol, hexane, and chlorobenzene under argon atmosphere.Batch-Specific Data: Confidence in your materials with batch-specific GPC data for your thesis or publications.Large Quantity Orders: Plan your experiments with confidence using polymers from the same batch.General Information
| CAS Number | N/A |
|---|---|
| Full Name | poly[(9,9-dioctylfluorenyl-2,7-diyl)-alt-(9-(2-ethylhexyl)-carbazole-3,6-diyl)] |
| Chemical Formula | (C49H65N)n |
| HOMO/LUMO |
HOMO = −5.4 eV LUMO = −2.3 eV [1] |
| Soluble in | THF, Toluene, o-xylene, and Chloroform |
| Recommended Processing Solvents at 10mg/ml | o-xylene (8mg/ml), chloroform |
| Synonyms | N/A |
| Classification / Family | Hole transport material (HTL), Hole injection material (HIL), Electron blocking material (EBL), OLEDs, Perovskite solar cells, Organic and printed electronics |
Batch Details
| Batch Number | Mw | Mn | PDI | Stock Info |
|---|---|---|---|---|
| M2421A1 | 16,899 | 10,058 | 1.68 | Low stock |
| M2421A2 | 119,559 | 34,653 | 3.45 | In stock |
Device Structure(s)
| Device Structure | ITO/PEDOT:PSS/PF8Cz/blue QDs (CdZnSe/ZnS)/Zn0.85Mg0.15O/Al[1] |
|---|---|
| Color |
 Blue |
| External Quantum Efficiency | 21.9% |
| Current Efficiency | 20 cd/A |
| Turn on Voltage | 2.45 V |
| Device Structure | ITO/PEDOT:PSS/PF8Cz/green QDs(CdSe/CdZnSe/ZnS)/Zn0.85Mg0.15O/Al[1] |
|---|---|
| Color |
 Green |
| External Quantum Efficiency | 28.7% |
| Current Efficiency | 127 cd/A |
| Turn on Voltage | 2.45 V |
MSDS Documentation
PF8Cz MSDS SheetLiterature and Reviews
- Solution-processed green and blue quantum-dot light-emitting diodes with eliminated charge leakage, Y. Deng et al., Nat. Photonics, 16, 505–511(2022); DOI: 10.1038/s41566-022-00999-9.
- Highly efficient light-emitting diodes based on self-assembled colloidal quantum wells, Y. Zhu et al., Adv. Mater., 2305382(2023); DOI: 10.1002/adma.202305382.
- QD-LEDs: High efficiency and long-term stability toward practical applications, W. Su et al., Matter, 3, 2397–2561(2022); DOI: 10.1016/j.matt.2022.06.017.
