High Purity Polymer Donor for Organic Solar Cells
Improved solubility and polymer crystallinity with appropriate miscibility
Specifications | MSDS | Literature and Reviews | Technical Support
P5TCN-F25 is a derivative of polythiophenes (PTs) with cyano, fluoro and alkyl groups on the main backbone of the polymer. The branched 2-hexyldecyl alkyl chains are there to promote the solubility of the polymer and backbone fluorination is believed to lead to stronger interchain interaction, improved polymer crystallinity, and appropriate miscibility with fullerene or non-fullerene acceptors. Meanwhile, the cyano-group on the thiophene ring can not only down-shift the energy levels but also improve the crystallinity of the resulting polymers.
For large volume orders of 5-10 grams, please enquire. The lead time is 4-6 weeks.
Efficient Polymer Donor
With useful properties for OSCs
Large Batch Luminosyn™
High purity with batch-specific GPC data
Simple Worldwide Shipping
Reliable delivery via tracked courier
Highly Efficient OSCs
Record device performance >17%
The Luminosyn™ Range
High Purity Materials: Purified by Soxhlet extraction with methanol, hexane, and chlorobenzene under argon atmosphere.Batch-Specific Data: Confidence in your materials with batch-specific GPC data for your thesis or publications.Large Quantity Orders: Plan your experiments with confidence using polymers from the same batch.General Information
Full name
| Poly{[3,3''-bis(2-hexyldecyl)-3'(4')-cyano[2,2':5',2'':5'',2''':5''',2''''-quinquethiophene]-5,5''''-diyl]-alt-[3,3''-bis(2-hexyldecyl)-3'(4')-cyano-3''',4''''-difluoro[2,2':5',2'':5'',2''':5''',2''''-quinquethiophene]-5,5''''-diyl]} |
|
| Synonyms | P5TCN-Fx |
|---|---|
| Chemical Formula | [(C53H73NS5)0.75(C53H71F2NS5)0.25]n |
| CAS Number | N/A |
| HOMO / LUMO | HOMO = -5.44 eV, LUMO = -3.65 eV [1] |
| Soluble In | Chloroform, chlorobenzene and dichlorobenzene |
| Recommended Processing Solvents at 10mg/ml | Chlorobenzene |
| Classification or Family | Organic semiconducting materials, Low band-gap polymers, Organic Photovoltaics, Polymer solar cells, NF-PSCs. |
Batch Details
| Batch | Mw | Mn | PDI | Stock Info |
|---|---|---|---|---|
| M2349A1 | 88,281 | 39,894 | 2.21 | In stock |

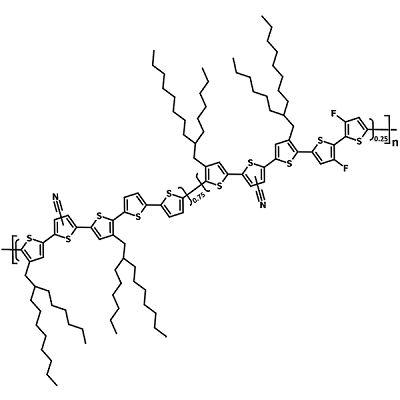

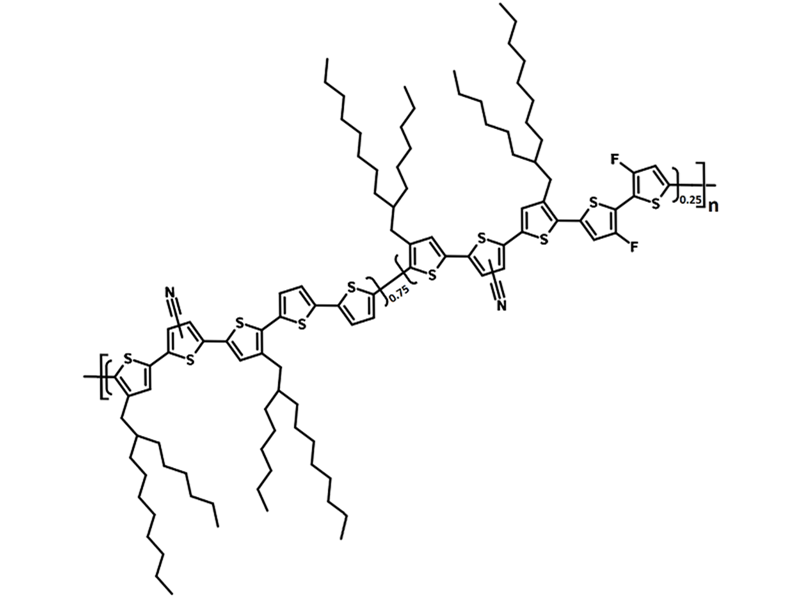

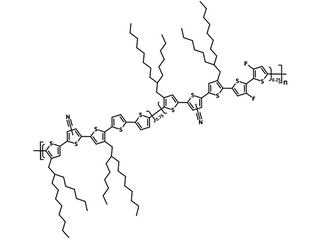

Chemical Structure
Device Structure
Outstanding device performance with PCE of 17.2% was achieved by using a ternary blend of active layer materials with P5TCN-F25 as the polymer donor and mixed non-fullerene Y6 and fullerene PC71BM as the acceptors by the following device structure.
Device structure: ITO/PEDOT:PSS/P5TCN-F25:Y6:P71CBM/PNDIT-F3N/Ag [1].
| Thickness (nm) | VOC (V) | JSC (mA cm-2) | FF (%) | >PCE (%) |
|---|---|---|---|---|
| 100 | 0.8 | 27.55 | 77.7 | 17.2 |
MSDS Documentation
P5TCN-F25 MSDS sheetLiterature and Reviews
- Polythiophenes for organic solar cells with efficiency surpassing 17%,X. Yuan et al., Joule, 6 (3), 647-661 (2022); DOI: 10.1016/j.joule.2022.02.006.
- Achieving 16% Efficiency for Polythiophene Organic Solar Cells with a Cyano-Substituted Polythiophene,X. Yuan et al., Adv. Funct. Mater., 2201142 (2022); DOI: 10.1002/adfm.202201142.
