Product Code M2353A1-100mg
Price £210 ex. VAT

Fluorescent host for blue, green and red light emitting active layer materials

High purity (>99% sublimed) mCPBC in quantities from 100 mg to 1 g


mCPCB, 9-(3-(9H-carbazol-9-yl)phenyl)-9H-3,9'-bicarbazole, has a structure of carbazole and 3-9'-bicarbazole attached to a phenyl ring at meta-positions.

Having three conjugated carbazolyl units and a wide band gap, mCPCB is electron rich and it is normally used as fluorescent host for blue, green and red light emitting active layer materials. Like mCP and SimCP, mCPCB is a hole transport dominating host with low polarity. mCPCB has been proven a great match as the host material to DABNA dopant derivatives for highly efficient blue emitting TADF devices.

General Information


CAS number 1799525-58-8
Chemical formula C42H27N3
Molecular weight 573.68 g/mol
Absorption λmax 338 nm (in toluene)
Fluorescence λem 446 nm (in toluene)
HOMO/LUMO HOMO = 5.70 eV, LUMO = 1.70 eV
Full name 9-(3-(9H-carbazol-9-yl)phenyl)-9H-3,9'-bicarbazole
Synonyms mCPCz
Classification / Family Carbazole derivatives, Host materials, Hole transporting materials, OLEDs, Organic electronics

Product Details


Purity Sublimed* >99.0%
Melting point n.a.
Colour White Powder

Sublimation is a technique used to obtain ultra pure-grade chemicals. For more details about sublimation, please refer to the sublimed materials for OLED devices collection page.

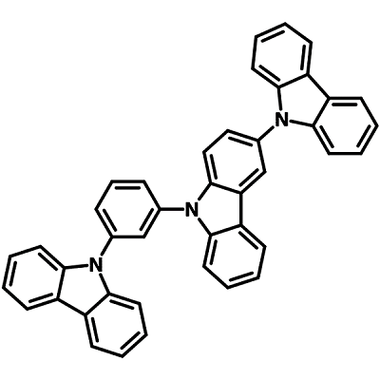

Chemical Structure

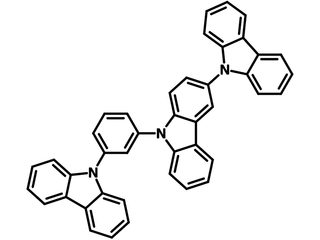

mCPBC chemical structure
Chemical structure of 9-(3-(9H-carbazol-9-yl)phenyl)-9H-3,9'-bicarbazole (mCPCB), CAS 1799525-58-8

Device Structure(s)


Device structure ITO/HATCN (5 nm)/NPB (30 nm)/TCTA (10 nm)/mCPBC:30 wt% 33PCX:1 wt% v-DABNA (30 nm)/CzPhPy (10 nm)/DPyPA:Liq (1:1, 30 nm)/LiF (0.5 nm)/Al (150 nm) [1]
Colour blue light emitting device Blue
Max. EQE 27.5%
Max. Power Efficiency 39.7 lm W1
Device structure ITO/HATCN (5 nm)/NPB (30 nm)/TCTA (10 nm)/mCPBC:30 wt% 23PCX:1 wt% v-DABNA (30 nm)/CzPhPy (10 nm)/DPyPA:Liq (1:1, 30 nm)/LiF (0.5 nm)/Al (150 nm) [1]
Colour blue light emitting device Blue
Max. EQE 25.2%
Max. Power Efficiency 53.5 lm W1
Device structure ITO/ HATCN(5 nm)/NPB(30 nm)/BCzPh(10 nm)/mCPBC: 20 wt% d-5CzBN (24 nm)/CzPhPy (10 nm)/DPPyA (30 nm)/LiF (0.5 nm)/Al (150 nm) [2]
Colour blue light emitting device Blue
Max. EQE 27.8%
Max. Power Efficiency 57.3 lm W1
Device structure ITO/ HATCN (5 nm)/NPB (30 nm)/ BCzPh (10 nm)/mCPBC: 20 wt% d-5CzBN: 1 wt% CzDABNA-NP-TB (24 nm)/CzPhPy (10 nm)/DPPyA (30 nm)/LiF (0.5 nm)/ Al (150 nm) [2]
Colour blue light emitting device Blue
Max. EQE 30.3%
Max. Power Efficiency 50.9 lm W1
Device structure TO/HAT-CN (10 nm)/NPB (30 nm)/BCzPh (10 nm)/mCPCB:35 wt% 5T:12 wt % 2F-BN (20 nm)/9Cz46Pm (10 nm)/DPPyA:Liq(1:1, 30 nm)/LiF (0.5 nm)/Al (150 nm) [3]
Colour green light emitting device Green
Max. EQE 21.58%
Max. Power Efficiency 72.05 lm W1

Pricing


Grade Order Code Quantity Price
Sublimed (>99%) M2353A1 100 mg £210
Sublimed (>99%) M2353A1 250 mg £420
Sublimed (>99%) M2353A1 500 mg £680
Sublimed (>99%) M2353A1 1 g £1050

MSDS Documentation


mCPBC MSDSmCPBC MSDS sheet

Literature and Reviews


  1. Highly Efficient and Stable Blue Organic Light-Emitting Diodes based on Thermally Activated Delayed Fluorophor with Donor-Void-Acceptor Motif, D. Zhang et al., Adv. Sci., 9, 2106018 (2022); DOI: 10.1002/advs.202106018.
  2. Boosting the Efficiency and Stability of Blue TADF Emitters by Deuteration, ChemRxiv. 2021; DOI: 10.26434/chemrxiv-2021-hrlf1.
  3. Multi-Resonance Induced Thermally Activated Delayed Fluorophores for Narrowband Green OLEDs, Y. Zhang et al., Angew. Chem., Intl. ed., 58 (47), 16912-16917 (2019); DOI: 10.1002/anie.201911266.
