ITIC-DCl (IT-4Cl, n-type acceptor)


Order Code: M2149A1
Not in stock

Pricing

Batch Quantity Price
M2149A1 50 mg £235.00
M2149A1 100 mg £399.00
M2149A1 250 mg £832.00
M2149A1 500 mg £1500.00
M2149A1 1 g £2690.00

General Information

Purity >99% (1H NMR)
Full name 3,9-bis(2-methylene-((3-(1,1-dicyanomethylene)-6,7-dichloro)-indanone))-5,5,11,11-tetrakis(4-hexylphenyl)-dithieno[2,3-d:2’,3’-d’]-s-indaceno[1,2-b:5,6-b’]dithiophene
Synonyms IT-4Cl, ITIC-4Cl
Chemical formula C94H78Cl4N4O2S4
CAS number 2253663-81-7
Molecular weight 1565.72 g/mol
HOMO / LUMO HOMO = -5.75 eV, LUMO = -4.09 eV [1]
Classification / Family NFAs, Organic semiconducting materials, Low band-gap small molecule, Small molecular acceptor, Organic photovoltaics, Polymer solar cells, NF-PSCs.
it-4cl, itic-dcl

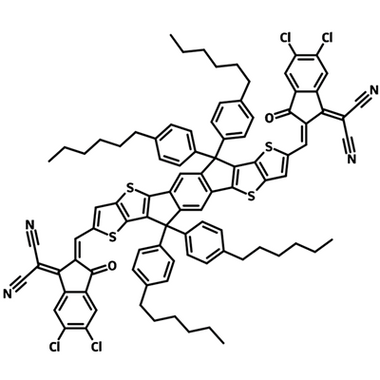

Chemical structure of ITIC-DCl, CAS# 2253663-81-7.

Applications

ITIC-DCl, one of the out-performing ITIC family members, is always used as an acceptor material to replace fullerene in non-fullerene organic solar cells (NFA-OSCs) or non-fullerene polymer solar cells (NFA-PSCs). When compared with IT-4F (ITIC-2F), ITIC-DM exhibits lower HOMO/LUMO energy levels due to the partial larger dipole moment of the chloro-containing molecules.

Together with IT-2Cl as an acceptor material, ITIC-DCl achieved a power conversion efficiency (PCE) over 14% when PBDB-T-F was used as a donor polymer material.

Devices architecture: ITO/PEDOT:PSS (35 nm)/PBDB-T-2F:IT-2Cl(20%):IT-4Cl(80%) (95-100 nm)/PFN-Br/Al (100 nm).

Characterisation (1NMR)

1H NMR of itic-dcl, it-4cl
1H-NMR spectrum of ITIC-DCl in CDCl(see the full version).

Literature and Reviews

  1. Over 14% Efficiency in Organic Solar Cells Enabled by Chlorinated Nonfullerene Small-Molecule Acceptors, H. Zhang et al., Adv. Mater., 30, 1800613 (2018); DOI: 10.1002/adma.201800613.
  2. Fluorination vs. chlorination: a case study on high performance organic photovoltaic materials, Y. Zhang et al., Sci. China. Chem., 61 (10), 1328-1337 (2018); doi:10.1007/s11426-018-9260-2.
  3. Morphology Control Enables Efficient Ternary Organic Solar Cells, Y. Xie et al., Adv. Mater., 30, 1803045 (2018); DOI: 10.1002/adma.201803045.
  4. Nonfullerene small-molecule acceptors with perpendicular side-chains for fullerene-free solar cells, F. Shen et al., Mater. Chem. A, 6, 15433 (2018); DOI: 10.1039/c8ta04718a.

To the best of our knowledge the technical information provided here is accurate. However, Ossila assume no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
