Module Electrode Mask for Scale-Up OPV/OLED Module Substrates

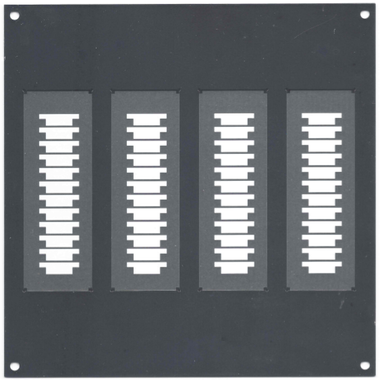

A top contact evaporation mask compatible with the Ossila Scale-up and Mini-module substrate system.

This design is for use with the Module OPV/OLED Scale-up Substrates.

The mask can be used in either direct contact with the substrate or slightly removed from the surface thanks to an optional spacer. The mask comes with a lid to secure the substrates to the mask with wing nuts.

Mask with direct contact (no spacer): For sputtering and other non-directional deposition systems, as well as for thermal deposition systems with oblique angles or a very short throw, we recommend the use of the direct contact mask to get well-defined edges.

Mask with 100 μm spacer: For normal thermal evaporation systems we recommend the use of masks with the 100 μm spacer to help avoid scratches and allow better out-gassing.

Design and Dimensions
