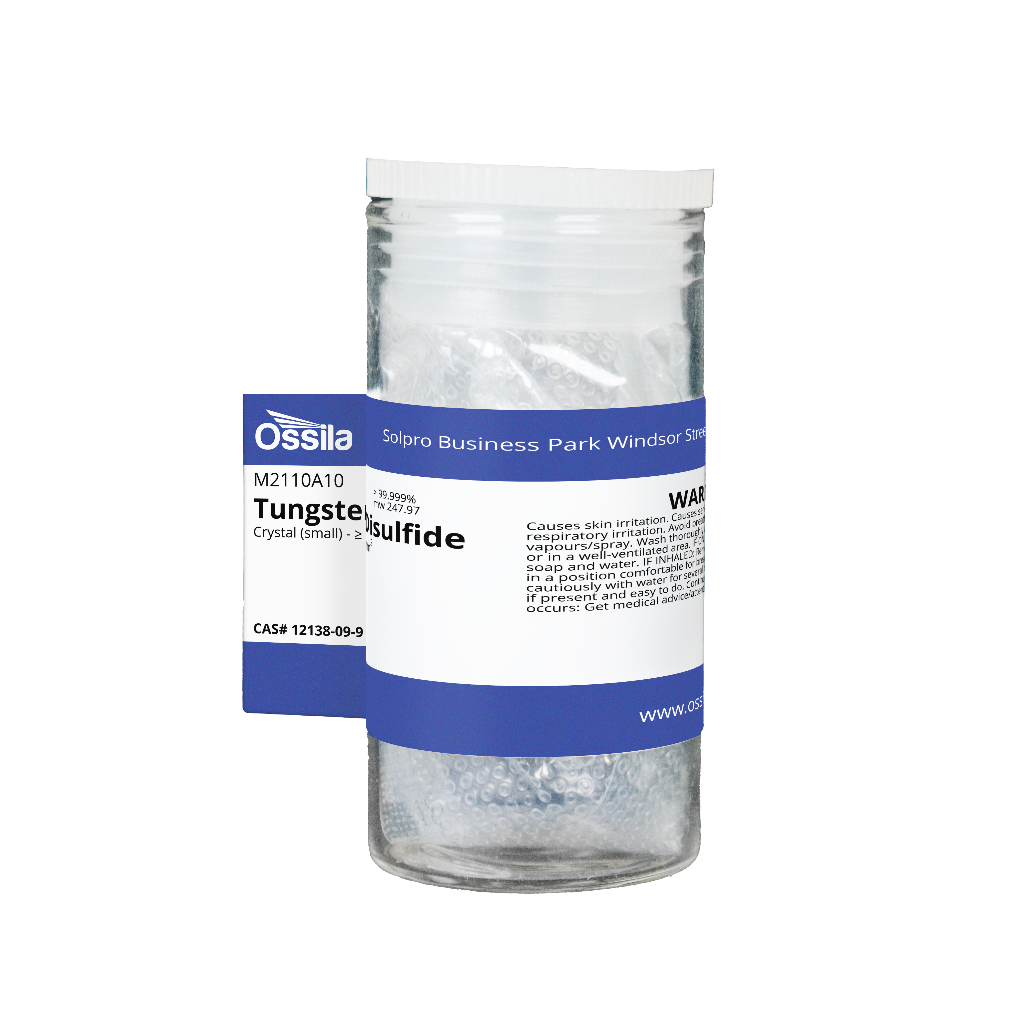

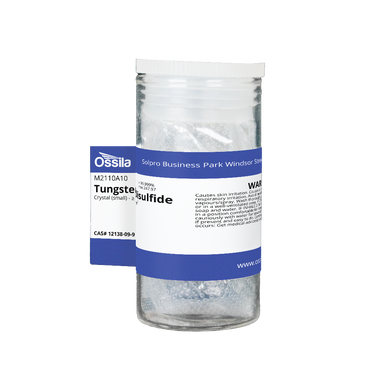

Tungsten Disulfide (WS2) Crystal

CAS Number 12138-09-9

2D Semiconductor Materials, Low Dimensional Materials, Tungsten Disulfide


Product Code M2110A10
Price $650 ex. VAT

Quality assured

Expert support

Volume discounts

Worldwide shipping

Fast and secure


Tungsten Disulfide Crystal, high purity 2D semiconducting TMDCs material

For applications in light-emitting devices, solar cells, and photodetectors


Like other TMDC family members, tungsten disulfide (WS2) has a two-dimensional structure. It consists of a layer of hexagonally-arranged tungsten atoms positioned between two layers of hexagonally-arranged sulphur atoms.

Individual layers are held together by Van der Waals forces. This makes it possible for single to few-layer ultra-thin films to be prepared from bulk crystals using mechanical exfoliation techniques. The primitive unit cell of WS2 consists of one tungsten atom and two sulphur atoms, arranged in a trigonal prismatic configuration.

High Purity Tungsten Disulfide

High Purity

≥99.999% Crystal Purity

2D semiconducting TMDCs material

2D Semiconductor

2D semiconducting TMDCs material

Low Cost 12138-09-9

Low Cost

Low Cost Tungsten Disulfide

Applications of Tungsten Disulfide

Applications

Used to prepare monolayer and few-layer

With a photoluminescence (PL) quantum yield that is almost two orders of magnitude higher at room temperature than MoS2, WS2 is one of the most popular 2D semiconducting TMDCs materials, and is widely explored for applications in light-emitting devices, solar cells, and photodetectors.

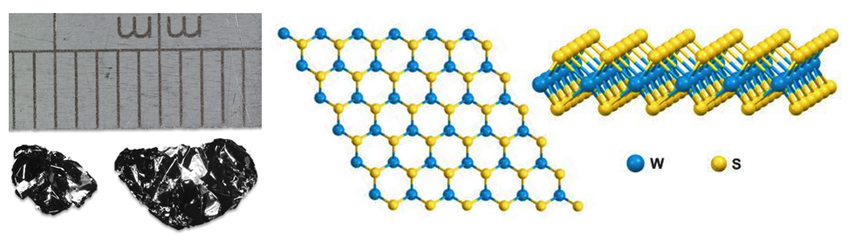

Structure of Tungsten Disulfide Crystal

WS2-Tungsten Disulfide Crystal
The hexagonal structure of Tungsten Disulfide (WS2)

Platinum FET Test Chips for 2D Materials

Test chips optimized for 2D materials
  • Affordable
  • World-Wide Shipping
  • Dual Channel Electrodes

Buy Online £200

Applications of Tungsten Disulfide Crystal

In the form of single or few-layer thin films, exfoliated WS2 nanosheets find applications ranging from light emitters, field effect transistors (FETs) and photovoltaics. Like many other TMDCs, they are actively used in condensed matter physics and photonics research.

Synthesis

Tungsten disulfide WS2 is manufactured using chemical vapour transport (CVT) crystallisation, with crystals having a purity in excess of 99.999%.

Usage

Tungsten disulfide WS2 can be used to prepare monolayer and few-layer WS2 by mechanical or liquid exfoliation.

Viscoelastic transfer of 2D material using PDMS

Literature and Reviews

  • Controlled Synthesis and Transfer of Large-Area WS2 Sheets: From Single Layer to Few Layers, A. Elı´as et al., ACS Nano, 7 (6), 5235–5242 (2013); DOI: 10.1021/nn400971k.
  • Extraordinary Room-Temperature Photoluminescence in Triangular WS2 Monolayers, H. R. Gutiérrez et al., Nano Lett., 13 (8), 3447–3454 (2013); DOI: 10.1021/nl3026357.
  • Controlled Growth of High-Quality Monolayer WS2 Layers on Sapphire and Imaging Its Grain Boundary, Y. Zhang et al., ACS Nano, 7 (10), 8963–8971 (2013); DOI: 10.1021/nn403454e.
  • Photosensor Device Based on Few-Layered WS2 Films, N. Perea-López et al., Adv. Funct. Mater., 23, 5511–5517 (2013); DOI: 10.1002/adfm.201300760.
  • Direct Chemical Vapor Deposition Growth of WS2 Atomic Layers on Hexagonal Boron Nitride, M. Okada et al., ACS Nano, 8 (8), 8273–8277 (2014); DOI: 10.1021/nn503093k.

Technical Data

CAS Number 12138-09-9
Chemical Formula WS2
Molecular Weight 247.97 g/mol
Bandgap 1.4 - 2.01 eV [1]
Preparation Synthetic - Chemical Vapour Transport (CVT)
Structure Hexagonal
Electronic Properties 2D semiconductor
Melting {oint 1250 °C (lit.)
Colour Black
Synonyms Tungsten sulphide, Tungsten sulfide, Tungsten(IV) sulfide
Classification / Family Transition metal dichalcogenides (TMDCs), 2D semiconductor materials, Nano-electronics, Nano-photonics, Materials science

Product Details

Form Purity
Crystal ≥99.999%

MSDS Document

Tungsten disulfide MSDSTungsten disulfide crystal

Pricing Table

Product Code Form Size* Quantity (EA) Price
M2110A10 Crystal Small (≥10 mm2) 1 £520
M2110A25 Crystal Medium (≥25 mm2) 1 £850
M2110A00 Crystal Large** (≥100 mm2) 1 £1750

*typical representative size, areas/dimensions may vary

**item with a lead time of 2 - 3 weeks, please contact for more information


To the best of our knowledge the information provided here is accurate. The values provided are typical at the time of manufacture and may vary over time and from batch to batch. Products may have minor cosmetic differences (e.g. to the branding) compared to the photos on our website. All products are for laboratory and research and development use only.
