Product Code M2336A1-100mg
Price £220 ex. VAT

TmCzTRZ, bipolar TADF green emitter

Calculated PLQY of 100% in DPEPO host


TmCzTRZ, namely 9,9',9''-(5-(4,6-Diphenyl-1,3,5-triazin-2-yl)benzene-1,2,3-triyl) tris(3,6-dimethyl-9H-carbazole), is methyl substituted TCzTRZ at 3,6-positions of carbazole units. Due to the electron-donating nature of the methyl groups, TmCzTRZ has relatively higher HOMO energy level than TCzTRZ.

TmCzTRZ is a bipolar TADF green emitter with three electron rich 3,6-dimethylcarbazole and one electron deficient 1,3,5-triazine units. Like TCzTRZ, TmCzTrz has a calculated photoluminescence quantum yield (PLQY) of 100% in DPEPO host. An external quantum efficiency (EQE) of over 25% external quantum efficiency has been achieved in a green light emitting device with 30 wt% DPEPO used as host [1].

General Information


CAS number 1808158-41-9
Full name 9,9',9''-(5-(4,6-Diphenyl-1,3,5-triazin-2-yl)benzene-1,2,3-triyl) tris(3,6-dimethyl-9H-carbazole)
Chemical formula C63H48N6
Molecular weight 889.10 g/mol
Absorption λmax 447 nm (in toluene)
Phosphorescene λmax 500 nm (in film)
HOMO/LUMO HOMO = 5.19 eV, LUMO = 2.11 eV [1]
Synonyms TmCz-TRZ
Classification / Family Triazine derivatives, Light-emitting diodes, Organic electronics, TADF green emitter, PHOLEDs host materials, Sublimed materials.

Product Details


Purity Sublimed >99.0% (HPLC)
Melting point Tg = 205.0 ℃, Tm = 427.9 ℃, Td (Temperature at 5% weight loss) = 436.1 ℃.
Appearance Deep yellow powder/crystals

*Sublimation is a technique used to obtain ultra pure-grade chemicals. For more details about sublimation, please refer to the Sublimed Materials.

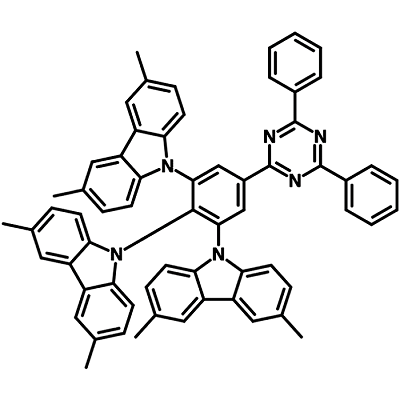

Chemical Structure

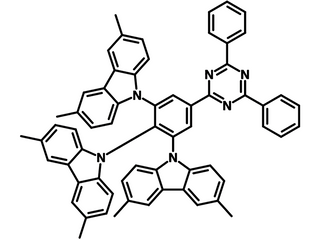

TmCZTRZ Chemical structure, Green dopant
Chemical structure of 9,9',9''-(5-(4,6-Diphenyl-1,3,5-triazin-2-yl)benzene-1,2,3-triyl) tris(3,6-dimethyl-9H-carbazole) (TmCzTRZ), CAS# 1808158-41-9.

Device Structure(s)


Device structure ITO/PEDOT:PSS (60 nm)/TAPC (20 nm)/mCP (10 nm)/30 wt% DPEPO:TmCzTRZ (25 nm)/TSPO1 (5 nm)/TPBI (20 nm)/LiF (1 nm)/Al (200 nm) [1]
Colour green light emitting device Green
Max. Power Efficiency 52.1 lm W-1
Max. Current Efficiency 18.6 cd/A
Max. EQE 25.5%

*For chemical structure information, please refer to the cited references.

Pricing


Grade Order Code Quantity Price
Sublimed (>99.0% purity) M2336A1 100 mg £220
Sublimed (>99.0% purity) M2336A1 250 mg £440
Sublimed (>99.0% purity) M2336A1 500 mg £740
Sublimed (>99.0% purity) M2336A1 1 g £1250

MSDS Documentation


TmCzTRZ MSDSTmCzTRZ MSDS Sheet

Literature and Reviews


  1. Design Strategy for 25% External Quantum Efficiency in Green and Blue Thermally Activated Delayed Fluorescent Devices, D. Lee et al., Adv. Mater., 27 (39); 5861-5867 (2015); DOI: 10.1002/adma.201502053.
  2. Triazine-Acceptor-Based Green Thermally Activated Delayed Fluorescence Materials for Organic Light-Emitting Diodes, R. Braveenth et al., Materials, 12, 2646 (2019); DOI: 10.3390/ma12162646.
  3. Recent advancements of high efficient donor–acceptor type blue small molecule applied for OLEDs, Y. Li et al., Mater. Today, 20 (5), 258-266 (2017); DOI: 10.1016/j.mattod.2016.12.003..
