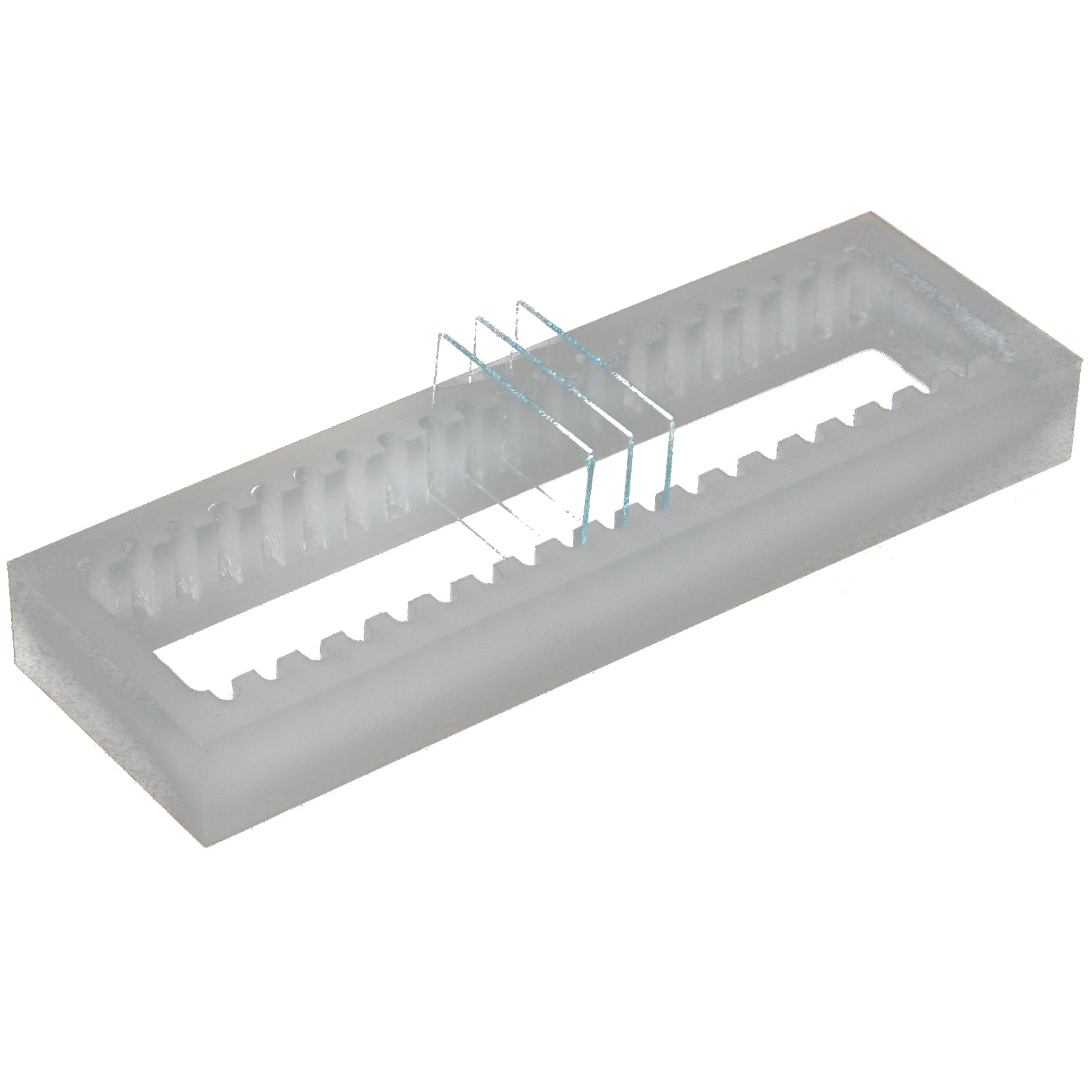

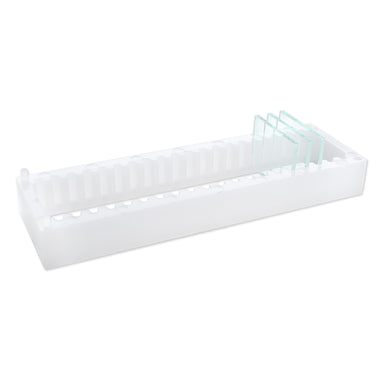

Substrate Rack for Cleaning and Storage

Order Code: E101

Price

(excluding Taxes)

£12.30


Rack to hold 20 substrates for a variety of processing techniques. Injection moulded from polypropylene to resist most solvents and acids used in organic electronics processes including THF, toluene, xylene, chloroform, chlorobenzene, dichlorobenzene and trichlorobenzene.

Further Information

Most commonly used for cleaning substrates, the racks are also useful for many other batch processes including solvent annealing, deposition of self-assembled monolayers, low-temperature baking and of course storage. They are designed to fit perfectly inside our polypropylene beaker which allows annealing and cleaning of substrates with minimum solvent waste.

Specifications
Size 86 mm x 27 mm x 9 mm
Holds 20 substrates of 15 x 20 mm
Material Polypropylene

Substrate rack schematic - side view
Substrate rack side view



Substrate rack schematic - top view
Substrate rack top view



Substrate Cleaning Routine

The video below demonstrates the way in which our substrate rack can be used during the process of cleaning substrates in preparation for fabricating PV/LED devices.



To the best of our knowledge the technical information provided here is accurate. However, Ossila assume no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
