PPF


Product Code M2295A1
Price £173.00

PPF, dibenzo[b,d]furan-2,8-diylbis(diphenylphosphine Oxide), contains an electron donating dibenzo[b,d]furan core and two electron deficient diphenylphosphine oxide units. Due to its electron deficient nature, PPF and PPT can be used as electron transport layer materials, and in some cases, to form exciplex as emitting layer materials in TADF-OLED devices.

PPF shows a high triplet energy (ET = 3.1 eV) and it also can be used as host material for effective triplet excitons confinement in the emissive layer. PPF could also be used as exciton blocking layer material.

General Information

CAS number 911397-27-8
Full name 2,8-Bis(diphenyl-phosphoryl)-dibenzo[b,d]furan
Chemical formula C36H26O3P2
Molecular weight 568.54 g/mol
Absorption λmax 300 nm in DCM
Fluorescence λem 440 nm in DCM
HOMO/LUMO HOMO = 6.7 eV, LUMO = 2.7 eV (ET = 3.1 eV) [1]
Synonyms DFPO, DBFPO, Dibenzo[b,d]furan-2,8-diylbis(diphenylphosphine Oxide)
Classification / Family Dibenzofuran derivatives, Organic electronics, Electron-transport layer materials (ETL), Phosphorescent host materials, Fluorescent host materials, TADF-OLEDs, Organic long persistent luminescence, Sublimed materials.

Product Details

Purity Sublimed: >99.0% (HPLC)
Melting point 253 °C (dec.)
Appearance White powder/crystals

*Sublimation is a technique used to obtain ultra pure-grade chemicals. For more details about sublimation, please refer to the Sublimed Materials for OLED devices page.

Chemical Structure

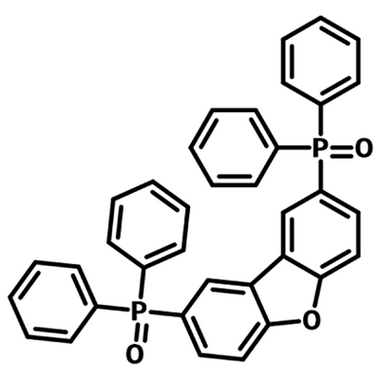

PPF chemical structure
Chemical structure of 2,8-bis(diphenylphosphoryl)dibenzo[b,d]furan (PPF)

Device Structure(s)

Device structure ITO (50 nm)/HAT-CN (10 nm)/TAPC (50 nm)/CCP (10 nm)/PPF:TMCz-BO (20 nm)/PPF (10 nm)/B3PyPB (30 nm)/Liq (1 nm)/Al (100 nm) [1]
Colour Blue Blue device structure
Max. EQE 20.7%
Device structure ITO (50 nm)/TAPC (70 nm)/CDBP (10 nm)/6 wt% CCX-II:PPF (20 nm)/PPF (10 nm)/BmPyPhB (30 nm)/Liq (1 nm)/Al (80 nm) [2]
Colour Blue Blue device structure
Max. EQE 25.9%
Max. Current Efficiency 41.1 cd/A
Max. Power Efficiency 35.9 lm/W
Device structure ITO (50 nm)/HAT-CN (10 nm)/α-NPD (50 nm)/CCP (5 nm)/ 6 wt % DPAc-INN-1:PPF (20 nm)/PPF (10 nm)/TPBi (50 nm)/Liq (1 nm)/Al (100 nm) [3]
Colour Blue Blue device structure
Max. EQE 12.8%
Max. Current Efficiency 24.2 cd/A
Max. Power Efficiency 18.1 lm/W
Device structure ITO/HAT-CN (10 nm)/a-NPD (40 nm)/CCP (5 nm)/18 wt% MFAc-PPM:PPF (20 nm)/PPF (10 nm)/TPBi (30 nm)/Liq (1 nm)/Al (100 nm) [4]
Colour Blue Blue device structure
Max. EQE 20.4%
Max. Current Efficiency 41.7 cd/A
Max. Power Efficiency 37.2 lm/W

*For chemical structure information, please refer to the cited references.

Pricing

Grade Order Code Quantity Price
Sublimed (>99.0% purity) M2295A1 100 mg £173.00
Sublimed (>99.0% purity) M2295A1 250 mg £346.00
Sublimed (>99.0% purity) M2295A1 500 mg £588.00
Sublimed (>99.0% purity) M2295A1 1 g £976.00

MSDS Documentation

PPF MSDSPPF MSDS sheet

Literature and Reviews

  1. Nanosecond-time-scale delayed fluorescence molecule for deep-blue OLEDs with small efficiency rolloff, J. Kim et al., Nature Commun., 11, 1765 (2020); DOI: 10.1038/s41467-020-15558-5.
  2. Blue organic light-emitting diodes realizing external quantum efficiency over 25% using thermally activated delayed fluorescence emitters, T. Miwa et al., SCi. Report, 7, 284 (2017); DOI:10.1038/s41598-017-00368-5.
  3. An Isonicotinonitrile-based Blue Thermally Activated Delayed Fluorescence Emitter, I. Park et al., Chem. Lett., 49, 210–213 (2020); DOI:10.1246/cl.190808.
  4. Pyrimidine-based twisted donor–acceptor delayed fluorescence molecules: a new universal platform for highly efficient blue electroluminescence, I. Park et al., Chem. Sci., 8, 953 (2017); DOI: 10.1039/c6sc03793c.
  5. Bluish green emission from pyrene-pyrazoline containing heterocyclic materials and their electronic properties, A. Karuppusamy et al., J. Luminescence, 194, 718-728 (2017); DOI: 10.1016/j.jlumin.2017.09.042.

To the best of our knowledge the information provided here is accurate. However, Ossila assume no liability for the accuracy of this page. The values provided are typical at the time of manufacture and may vary over time and from batch to batch. All products are for laboratory and research and development use only, and may not be used for any other purpose including health care, pharmaceuticals, cosmetics, food or commercial applications.
