PBDTTTPD CAS 1426534-44-2
Product Code M2054A1-100mg
Price $378 ex. VAT
$ USD

How to Order | Shipping

PBDTTTPD, donor material used in the application of polymer solar cells

High purity polymer available for fast, secure dispatch

Specifications | Pricing and Options | MSDS | Literature and Reviews

PBDTTTPD, poly[(5,6-dihydro-5-octyl-4,6-dioxo-4H-thieno[3,4-c]pyrrole-1,3-diyl)[4,8-bis[5-(2-ethylhexyl)-2-thienyl]benzo[1,2-b:4,5-b']dithiophene-2,6-diyl], CAS number 1426534-44-2, has been used in the application of all polymer solar cells with PBDTTTPD as polymer donor and PNDI(2HD)T polymer acceptor providing high power-conversion efficiency of 6.64% [1].

PBDTTTPD shows complementary absorption with poly-naphthalene-diimides as acceptor polymers and the low-lying HOMO energy level of PBDTTTPD produces a high VOC value in all-PSCs. Polymer-polymer solar cell with PBDTT-TPD as donor and PNF222 (PNDI(2OD)2T-2F) as acceptor has a VOC = 1.00 V, JSC = 11.68 mA cm−2 and FF = 0.52 to give a PCE 0f 6.09% [2].

Luminosyn™ PBDTTTPD

Luminosyn™ PBDTTTPD is now available.

High purity
PBDTTTPD is purified by soxhlet extraction with methanol, hexane and chloroform under argon atmosphere

Batch-specific GPC data
Have confidence in what you are ordering; batch-specific GPC data for your thesis or publications

Large quantity orders
Plan your experiments with confidence with polymers from the same batch

General Information

Full name Poly[(5,6-dihydro-5-octyl-4,6-dioxo-4H-thieno[3,4-c]pyrrole-1,3-diyl)[4,8-bis[5-(2-ethylhexyl)-2-thienyl]benzo[1,2-b:4,5-b']dithiophene-2,6-diyl ]]
Synonyms PBDTT(EH)-TPD(Oct), PBDTT-TPD
CAS number 1426534-44-2
Chemical formula (C48H57NO2S5)n
Molecular weight See Batch Details table above
HOMO / LUMO HOMO = - 5.49 eV, LUMO = - 3.47 eV [1]
Solubility Chloroform, chlorobenzene, dichlorobenzene
Classification / Family Benzodithiophene, BDT, Thienopyrrole, Heterocyclic five-membered ring, Organic semiconducting materials, Low band gap polymers, Organic photovoltaics, All-polymer solar cells, OFETs, Photodetectors

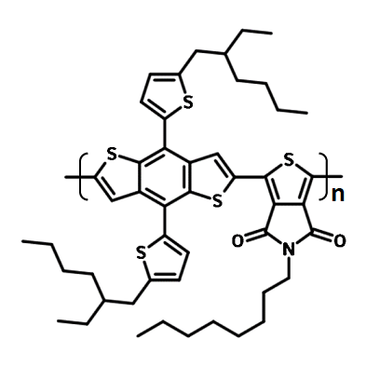

Chemical Structure

PBDTTTPD chemical structure
Chemical structure and product image of PBDTTTPD.

Pricing

Batch Quantity Price
M2054A 100 mg £280
M2054A 250 mg £580
M2054A 500 mg £1050
M2054A 1 g £1750
M2054A 5 g / 10 g* Please enquire

*for 5 - 10 grams order quantity, the lead time is 4-6 weeks

Batch Details

Batch Mw Mn PDI Stock Info
M2054A1 37,952 13,848 2.74 Low Stock
M2054A2 27,925 9,673 2.89 In Stock

MSDS Documentation

PBDTTTPD MSDSPBDTTTPD MSDS Sheet

Literature and Reviews

  1. Flexible, highly efficient all-polymer solar cells, T. Kim et al., Nat. Commun. 6, 8547 (2015); doi:10.1038/ncomms9547.
  2. Controlling Energy Levels and Blend Morphology for All-Polymer Solar Cells via Fluorination of a Naphthalene Diimide-Based Copolymer Acceptor, M. A. Uddin et al., Macromolecules 2016, 49, 6374−6383 (2016); DOI: 10.1021/acs.macromol.6b01414.
  3. Toward Highly Sensitive Polymer Photodetectors by Molecular Engineering, L. Zhang et al., Adv. Mater., 27, 6496–6503 (2015); DOI: 10.1002/adma.201502267.n2200.
