Product Code M2259A1-100mg
Price £400 ex. VAT

PBDB-TF-T1, high purity semiconducting polymer

High quality and available for fast, secure dispatch


PBDB-TF-T1 is a randomly copolymerised conjugated semiconducting polymer with benzodithiophene (BDT), Benzodithiophene dione (BDD) and thiophene carboxylate ester as the main backbone units. PBDB-TF-T1 is a close relative in structure to PBDBT-2F (PM6) and PTO2, relatively blue shifted in absorption to PM6 and red shifted to PTO2.

PBDB-TF-T1 is also relatively more soluble in non-halogenated solvents, i.e. o-xylene, 1,2,4‐trimethylbenzene or THF than PM6. Non-fullerene polymer solar cells withnon-halogenated solvent additive DIO from BTP-4F-12 as acceptor and PBDB-TF-T1 as polymer donor achieved high device performance efficiencies of PCE = 16.1%.

Please refer to our collection of green energy materials for non-halogenated solvents processing choice of non-fullerene acceptors (NFAs).

Conjugated semiconducting polymer

Conjugated semiconducting polymer

For high efficient OPV applications

Luminosyn™

Luminosyn™

High purity, batch-specific GPC data, available larger batch orders and higher molecular weight

Worldwide shipping for PBDB-TF-T1

Worldwide shipping

Quick and reliable shipping

Green energy material

Green energy materials

Processable in non-halogenated solvents

Device structure ITO/PEDOT:PSS/T1:BTP-4F-12/PFN-Br/Al. [1]

Thickness (nm) VOC(V) JSC(mA cm-2) FF(%) PCE(%)
N/A 0.853 25.2 76 16.1

Luminosyn™ PBDB-TF-T1

Luminosyn™ PBDB-TF-T1 is now available.

High purity

PBDB-TF-T1 is purified by Soxhlet extraction with methanol, hexane and chlorobenzene under an argon atmosphere

Batch-specific GPC data

Batch specific GPC data is always available for your thesis or publication

Large-quantity orders

Plan your experiments with confidence with polymers from the same batch

General Information

CAS Number N/A
Chemical Formula [(C68H76F2O2S8)0.8(C41H44F2O2S5)0.2]n
Full Name Poly[(2,6-(4,8-bis(5-(2-ethylhexyl-3-fluoro)thiophen-2-yl)-benzo[1,2-b:4,5-b’]dithiophene))-alt-(5,5-(1’,3’-di-2-thienyl)-5’,7’-bis(2-ethylhexyl)benzo[1’,2’-c:4’,5’-c’]dithiophene-4,8-dione)]-ran-poly[(2,6-(4,8-bis(5-(2-ethylhexyl)thiophen-2-yl)-benzo[1,2-b:4,5-b’]dithiophene))-alt-(2,2-ethyl-3(or4)-carboxylate-thiophene)]
HOMO / LUMO HOMO = -5.48 eV, LUMO = -3.63 eV [1]
Solubility o-Xylene, chloroform, chlorobenzene and dichlorobenzene
Processing Solvent o-Xylene, chloroform, chlorobenzene and dichlorobenzene
Synonyms T1
Classification / Family Organic semiconducting materials, Medium band-gap polymers, Organic Photovoltaics, Polymer solar cells, NF-PSCs, All-polymer solar cells (all-pscs).

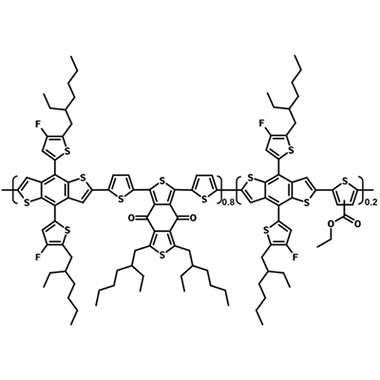

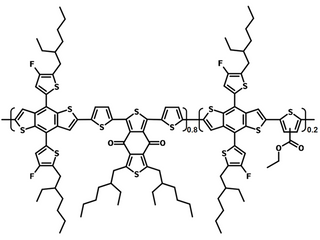

Chemical Structure

pbdb-tf-t1 chemical structure and solubility in o-xylene
Chemical structure of PBDB-TF-T1 (T1) and its solubility in o-xylene

Characterisations

UV-Vis Absorption

pbdb-tf-t1 uv-vis absorption in film, solubility in o-xylene
UV-Vis absorption of of PBDB-TF-T1 in chloroform (CF) and in film (as-cast film on glass) and its solubility in THF at 8 mg/ml.

Cyclic Voltammetry

pbdb-tf-t1 cyclic voltammetry in film
Cyclic voltammograms of the PBDB-TF-T1 film on platinum electrode in 0.1M Bu4NClO4in acetonitrile at a scan rate of 100 mV s−1.

The cyclic voltammograms (CV) measurements were recorded on Ossila Potentiostat by using a three-electrode system with platinum disc as the working electrode, platinum wire as the counter electrode, Ag/Agelectrode as the reference electrode with a scanning rate of 100 mV/s in a 0.1 M tetrabutylammonium perchlorate (Bu4NClO4) solution. The potential of Ag/Ag+ reference electrode was internally calibrated by using ferrocene/ferroncenium (Fc/Fc+) as the redox couple.

MSDS Documentation

PBDB-TF-T1 MSDSPBDB-TF-T1 MSDS Sheet

Pricing

Batch Quantity Price
M2259A1 100 mg £400
M2259A1 250 mg £800
M2259A1 500 mg £1450
M2259A1 1 g £2600
M2259A1 5 g / 10 g* Please enquire

*for 5 – 10 grams order quantity, the lead time is 4 – 6 weeks.

Batch details

Batch Mw Mn PDI Stock Info
M2259A1 99,351 42,777 2.32 In Stock

Literature and Reviews

  1. Achieving Over 15% Efficiency in Organic Photovoltaic Cells via Copolymer Design, Y. Cui et al., Adv. Mater., 31 (14), 1808356 (2019); DOI: 10.1002/adma.201808356.
  2. Eco-Compatible Solvent-Processed Organic Photovoltaic Cells with Over 16% Efficiency, L Hong et al., Adv. Mater., 31 (39), 1903441 (2019); DOI: 10.1002/adma.201903441..
