OFET, TFT and Sensor Scale-Up Substrates

Order Code: S271

Price

(excluding Taxes)

£525.00


A 25 X 75 mm version of our popular Interdigitated ITO Substrates for OFET and Sensing.

The Scale-Up and Mini-Module Substrate System is designed to enable affordable scale up. Alongside the  Scale Up Substrate Evaporation Masks, the substrates allow for larger devices and investigation of large scale manufacture techniques.

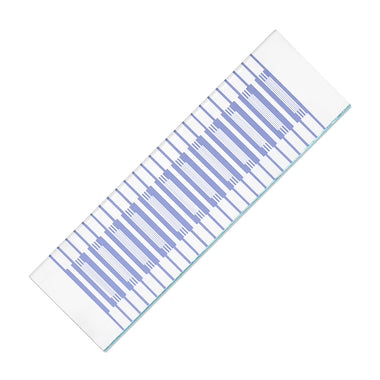

The Scale Up Patterned ITO Substrate for OFET, TFT and Sensing.

Datasheet

Size 25 mm x 75 mm
Thickness 1.1 mm
Glass type Polished soda lime, float glass
Substrate coating Fully oxidized ITO
ITO thickness 100 nm
ITO resistance 20 Ω/square
Glass roughness Less than 1 nm RMS (by AFM)
ITO roughness 1.8 nm RMS (by AFM)

Dimensions

Dimensionised Drawing of the OFET, TFT and Sensing Scale-Up Substrate
