Insulator Deposition Mask, Low Density

Substrates and Fabrication


Product Code E309-SPC
Price $325 ex. VAT

Quality assured

Expert support

Volume discounts

Worldwide shipping

Fast and secure


An evaporation mask for deposition of the insulator layer for use with Ossila's low-density OFET system.

Outer dimensions: 75 mm x 75 mm

Number of OFETs: 5 OFETs per substrate.

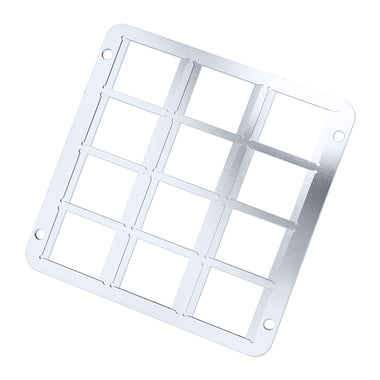

Mask with direct contact (no spacer): For sputtering and other non-directional deposition systems, as well as for thermal deposition systems with oblique angles or a very short throw, we recommend the use of the direct contact mask to get well-defined edges.

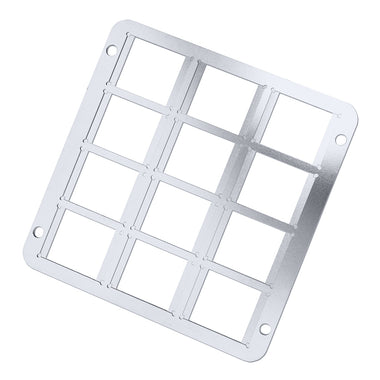

Mask with 100 μm spacer: For normal thermal evaporation systems we recommend the use of masks with the 100 μm spacer to help avoid scratches and allow better out-gassing.

Datasheet

E309 OFET low density insulator mask top view
Photo of the E309 OFET Low Density Insulator Mask.
schematic of the E309 OFET low density insulator mask
Schematic of a substrate using the E309 OFET Low Density Insulator Mask relative to the gate and source-drain contacts.

To the best of our knowledge the information provided here is accurate. The values provided are typical at the time of manufacture and may vary over time and from batch to batch. Products may have minor cosmetic differences (e.g. to the branding) compared to the photos on our website. All products are for laboratory and research and development use only.
