NTCDA - 1,4,5,8-Naphthalenetetracarboxylic dianhydride

CAS Number 81-30-1

Chemistry Building Blocks, Diamines and Dianhydrides, Heterocyclic Building Blocks, Monomers


Product Code B1191-100g
Price $250 ex. VAT

Quality assured

Expert support

Volume discounts

Worldwide shipping

Fast and secure


NTCDA, Most commonly used as a precursor to naphthalenediimides

Interacts strongly with metal and to create a charge transfer complex with ITO.


NTCDA has a naphthalene core with four carboxylic acids at 1,4,5,8-positions, each adjacent carboxylic acids forms an anhydride.

NTCDA (1,4,5,8-naphtalenetetracarboxylic dianhydride) is aromatic, stable, planar and highly symmetric with unusual electrical properties. Due to the electron deficient nature of the carboxylic groups, NTCDA is well known as a strong electron-accepting molecule with a high electron affinity of 4.0 eV. Studies shows that NTCDA dramatically improve electric conductivity in a co-deposited film of NTCDA and several metals, including indium, magnesium and aluminium. The high electron conductivity of co-deposited NTCDA/In film strongly suggests that a co-deposited NTCDA/In film is an excellent electron transporting layer for OLED and photovoltaic devices.

Electron traps can be created by the introduction of trace amounts of n-type small molecule semiconductor NTCDA into polyethylenimine (PEI), which effectively reduces the leakage current and improves the breakdown strength and energy storage properties of the composite at high temperature. Especially, excellent energy storage performance is achieved in 0.5 vol.% NTCDA/PEI at the high temperatures of 150 and 200 °C.

General Information

CAS Number 81-30-1
Chemical Formula C14H4O6
Full Name 1,4,5,8-Naphthalenetetracarboxylic dianhydride
Molecular Weight 268.18 g/mol
Synonyms 1,4,5,8-Naphthalenetetracarboxylic dianhydride, Naphthalene-1,4,5,8-tetracarboxylic Dianhydride
Classification / Family Naphthalene, semiconductor synthesis intermediates, Electron donor unit, OLED, OFETs, organic photovoltaics

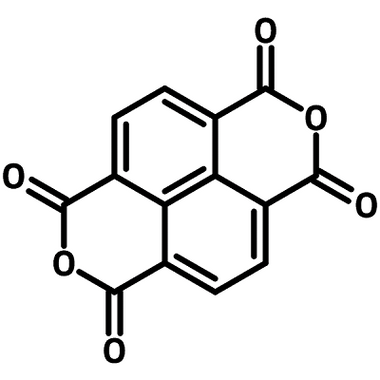

Chemical Structure

NTCDA, 1,4,5,8-Naphthalenetetracarboxylic dianhydride chemical structure
NTCDA, 1,4,5,8-Naphthalenetetracarboxylic dianhydride chemical structure, CAS 81-30-1

Product Details

Purity >98% (1H NMR)
Melting Point >300 °C (lit.)
Appearance White to brownish powder/crystals

MSDS Documentation

NTCDANTCDA MSDS Sheet

Literature and Reviews

  1. Optical transitions in new trends organic materials, S. Pérez-Merchancano et al., Microelectronics J. 39 (3-4), 576-578 (2008); DOI: 10.1016/j.mejo.2007.07.033.
  2. Superior High-Temperature Energy Density in Molecular Semiconductor/Polymer All-Organic Composites, B. Zhang et al., Adv. Funct. Mater., 2210050 (2022); DOI: 10.1002/adfm.202210050.
  3. 1,4,5,8-Naphthalenetetracarboxylic dianhydride grafted phthalocyanine macromolecules as an anode material for lithium ion batteries, L. Tao et al., Nanoscale Adv., 3, 3199 (2021); DOI: 10.1039/d1na00115a.
  4. Efficient p-i-n type organic solar cells incorporating 1,4,5,8-naphthalenetetracarboxylic dianhydride as transparent electron transport material, C. Falkenberg et al., J. Appl. Phys. 104, 034506 (2008); DOI: 10.1063/1.2963992.
  5. Strong Exciton-Photon Coupling and Exciton Hybridization in a Thermally Evaporated Polycrystalline Film of an Organic Small Molecule, R. Holmes et al., Phys. Rev. Lett., 93 (18); 186404 (2004); DOI:10.1103/PhysRevLett.93.186404.
  6. Interface state and dipole assisted hole injection improvement with 1,4,5,8,-naphthalene-tetracarboxylic-dianhydride in organic light-emitting devices, P. Jeon et al., Appl. Phys. Lett., 99, 073305 (2011); DOI: 10.1063/1.3628293.
  7. Organic photovoltaics incorporating electron conducting exciton blocking layers, B. Lassiter et al., Appl. Phys. Lett., 98, 243307 (2011); DOI: 10.1063/1.3598426.
  8. Spontaneous charge transfer from indium tin oxide to organic molecules for effective hole injection, Y. Koo et al., Appl. Phys. Lett., 94, 153302 (2009); DOI: 10.1063/1.3119860.

To the best of our knowledge the information provided here is accurate. The values provided are typical at the time of manufacture and may vary over time and from batch to batch. Products may have minor cosmetic differences (e.g. to the branding) compared to the photos on our website. All products are for laboratory and research and development use only.
