Product Code M2165F11-1EA
Price £420 ex. VAT

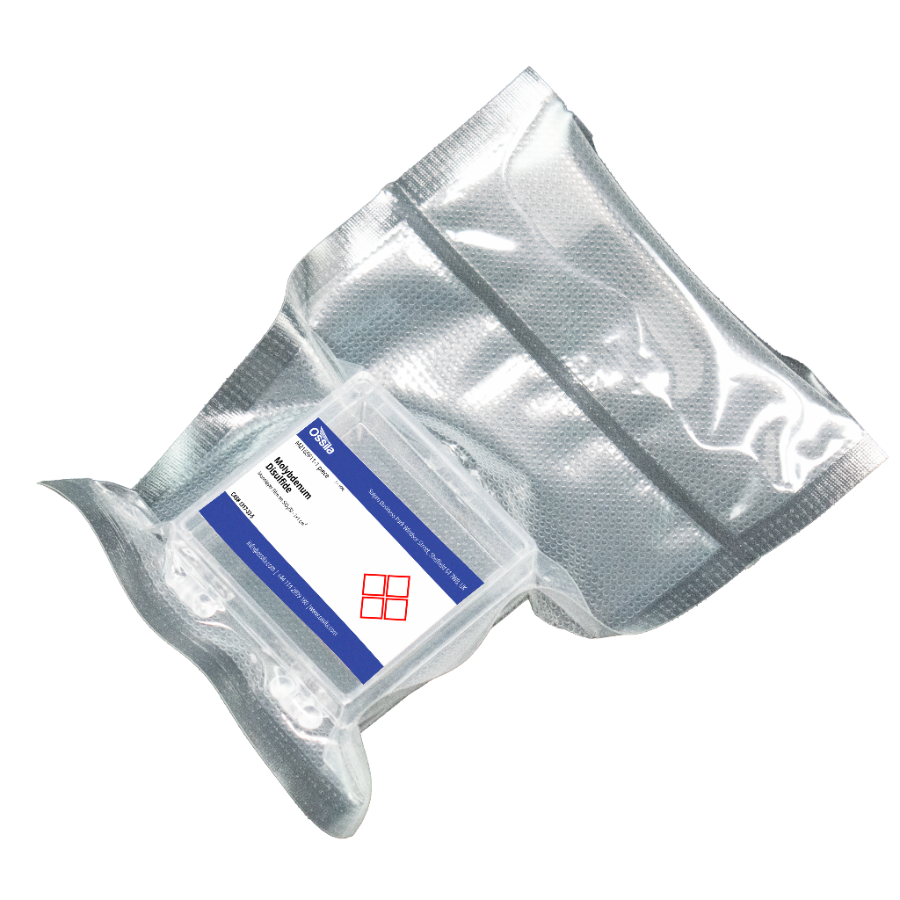

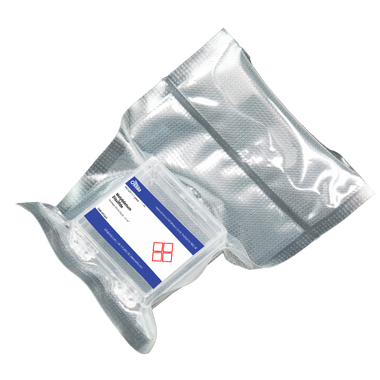

MoS2 Monolayer Film, for applications in electronic and optoelectronic devices

High quality and available online for fast, secure dispatch

Technical Data | MSDS | Applications | Literature and Reviews | Related Products | Resources and Support

Molybdenum disulfide (MoS2) monolayer film, CAS number 1317-33-5, is a direct bandgap semiconductor. When in bulk form however, this material has an indirect bandgap. The photoluminescence of MoSfilms increases with decreasing layer thickness. This means that luminescence is strongest in monolayer films, while it is absent in bulk material.

High Purity Molybdenum Disulfide Monolayer Film

High Purity

>99% Purity Molybdenum Monolayer Film Film

Worldwide shipping for 1317-33-5

Worldwide shipping

Quick and reliable shipping

Low Cost 1317-33-5

Low Cost

Low Cost Molybdenum Disulfide

Applications of Molybdenum Disulfide Monolayer Film


Applications in electronic and optoelectronic devices

Technical Data

CAS Number 1317-33-5
Chemical Formula MoS2
Molecular Weight 160.07 g/mol
Bandgap ~1.8 eV
Synonyms Molybdenum sulfide, Molybdenum disulphide, Molybdenum(IV) sulfide
Classification / Family Transition metal dichalcogenides (TMDCs), 2D semiconductor materials, Nano-electronics, Nano-photonics, Materials science

Product Details

Substrate SiO2/Si Sapphire Sapphire
Product code M2165F11 M2166F11 M2166T11
Size 1 cm × 1 cm* 1 cm × 1 cm* 1 cm × 1 cm*
Growth Method CVD synthesis CVD synthesis CVD synthesis
Appearance Transparent Transparent Transparent
Purity >99% >99% >99%
Transparency >97% >97% >97%
Coverage >95% >95% n.a.
Number of Layers 1 1 n.a.
Sheet Resistance n.a. n.a. n.a.
Transfer method Directly grown Directly grown Directly grown
Substrate Thickness 300 nm (oxide layer) 300 µm 300 µm

*Other sizes available: up to 2 cm × 2 cm or 2 inches in diameter (sapphire substrate only).

High-quality molybdenum disulfide (MoS2) monolayer films are available on two different substrates as standard: SiO2/Si and Sapphire. Different substrates of monolayer MoSfilms, including Glass, Silicon and Quartz are also available via custom order.

Discontinuous isolated triangular crystals (crystal islands) films are also available via custom request. Please contact us for more information regarding custom products.


Substrate Product Code Size Quantity (EA) Price
SiO2/Si M2165F11 1 cm × 1 cm 1 £420
Sapphire M2166F11 1 cm × 1 cm 1 £420
Sapphire M2166T11 1 cm × 1 cm 1 £420

MSDS Documents

 Molybdenum disulfide monolayer film on siliconMolybdenum disulfide monolayer film on silicon MSDS Sheet

Molybdenum disulfide monolayer film on sapphireMolybdenum disulfide monolayer film on sapphire MSDS Sheet

 Molybdenum disulfide isolated flakes on sapphireMolybdenum disulfide isolated flakes on sapphire MSDS Sheet


Molybdenum disulfide monolayer films can be built into electronic and optoelectronic devices such as photovoltaic solar cells, FETs, sensors, and photodetectors.


High-quality molybdenum disulfide monolayer films were grown directly on the substrates (SiO2/Si and Sapphire) by the chemical vapour deposition (CVD) method. The films were later transferred to the desired substrates using wet chemical transfer process.


MoS2 monolayer film can be used in research purposes such as microscopic analysis, photoluminescence, and Raman spectroscopy studies. MoS2 few-layer film can also be transferred to other substrates.

Literature and Reviews

  • Catalytic growth of large area monolayer molybdenum disulfide film by chemical vapor deposition, H. Li et al., Thin Solid Films 669, 371–376 (2019); doi: 10.1016/j.tsf.2018.10.055.
  • Large-Area Epitaxial Monolayer MoS2, D. Dumcenco et al., ACS Nano, 9 (4), 4611-4620 (2019); DIO: 10.1021/acsnano.5b01281.
  • Molecular Beam Epitaxy of Highly Crystalline Monolayer Molybdenum Disulfide on Hexagonal Boron Nitride, D. Fu et al., J. Am. Chem. Soc., 139, 9392−9400 (2017); DOI: 10.1021/jacs.7b05131.

We stock a wide range of 2D materials available to purchase online. Please contact us if you cannot find what you are looking for.

Resources and Support

Viscoelastic Transfer of 2D Material Using PDMS

Viscoelastic transfer using polydimethylsiloxane (PDMS) stamps is one of the methods used for the deterministic placement of 2D materials and the fabrication of van der Waals heterostructures. It relies on the viscoelasticity of PDMS, which behaves as an elastic solid on short time scales, but as a viscous fluid on long time scales.
