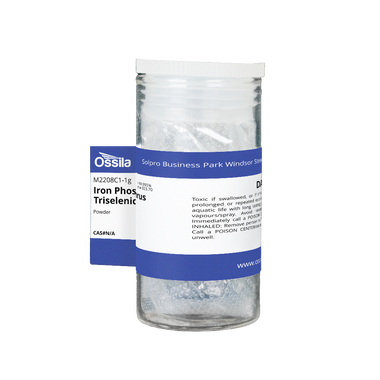

Iron Phosphorus Triselenide (FePSe3) Powder and Crystal


Product Code M2208C1
Price loading

Low price, high purity 2D iron phosphorus triselenide powder and crystal

For the development of next-generation electronics, optoelectronics, and nanotechnology


Iron phosphorus triselenide (FePSe3) belongs to a layered MPX3 (M = Mn, Fe, Ni, Zn and X = S, Se) family. FePSe3, with a layered structure like graphite, is a low bandgap ternary magnetic semiconductor with p-type characteristics as grown single crystals. Like FePS3, FePSe3 has also been predicted to have Ising-type antiferromagnetic ordering from its bulk form to the ultrathin nanosheets.

Antiferromagnetic semiconductor FePSe3 shows superconductivity along with the structural transition and vanishing of magnetic moment with a starting Tc ~ 2.5 K at 9.0 GPa and the maximum Tc ~ 5.5 K around 30 GPa.

Having a rhombohedral crystal system with space group R3̅ , FePSe3 undergoes isostructural or quasi-isostructural phase transitions under applied pressure at ~8 GPa

We supply low price iron phosphorus triselenide in several different forms for a range of applications.

Iron Phosphorus Triselenide powder

iron phosphorus triselenide

Can be used for preparation of iron phosphorus triselenide nanoplates nano-platelets and ultrathinthin films

Available in quantities of 1g

≥ 99.995% purity

From £268.00

Iron phosphorus triselenide crystal

iron phosphorus triselenide crystal

Can be used to produce single or few-layer iron phosphorus triselenide sheets via mechanical or liquid exfoliation

Small (≥10mm2) or medium (≥25mm2) crystals available*

≥ 99.999% purity

From £395.00

*Typical representative size, areas/dimensions may vary



Bulk single iron phosphorus triselenide crystal is most commonly used as sources from which single or few-layer sheets can be obtained via either mechanical or liquid exfoliation. Single iron phosphorus triselenide crystal or films produced from such crystals are suitable for study using atomic force microscopy or transmission electron microscopy.

Few-layer FePSe3 nanosheets and nanoparticles can also obtained from iron phosphorus triselenide powder by liquid-exfoliation.

Key Product Data

  • High purity iron phosphorus triselenide suitable for a range of applications
  • Available in powdered form or in crystal form by weight or size
  • Low price with free worldwide shipping on qualifying orders

Structure and Properties of Iron Phosphorus Triselenide

After exfoliation of iron phosphorus triselenide crystal or powder, FePSe3 typically has the following properties:

  • ‎Rhombohedral (space group: R3̅ )
  • Transition metal phosphorus trichalcogenides (MPX3)
  • FePSe3 is predicted to have Ising-type antiferromagnetic ordering
  • Antiferromagnetic semiconductor FePSe3 shows superconductivity along with the structural transition and vanishing of magnetic moment

Applications of Iron Phosphorus Triselenide

Iron phosphorus triselenide (FePSe3) single crystals can be used to prepare monolayer and few-layer FePSe3 by mechanical or liquid exfoliation.

Platinum FET test chips optimized for 2D materials

Perform electrical and optical measurements without expensive lithography equipment

  • Platinum FET test chips optimized for 2D materials, just £149.00
  • Developed with researchers in the field to speed up research
  • Simplifies electrical measurements on small 2D crystals
  • Transfer your crystal across the channel and start measuring

Iron phosphorus triselenide is suitable for liquid chemical exfoliation to prepare FePSe3 nanosheets and nanoparticles down to few-layer films.

Iron phosphorus triselenide (FePSe3) quantum sheets are excellent and highly stable trifunctional electrocatalyst for hydrogen evolution, oxygen evolution, and oxygen reduction reactions. Apart from being one of the most effective electrocatalysts for hydrogen evolution reactions (HER), FePSe3 can also be intercalated with llthium or sodium ions for batteries, transistors and other energy storage devices.

Technical Data

CAS number ‎‎Not available
Chemical formula FePSe3
Molecular weight 323.70 g/mol
Bandgap ~1.3 eV (bulk)
Preparation Synthetic - Chemical Vapour Transport (CVT)
Structure ‎‎Rhombohedral
Electronic properties 2D Magnetic semiconductor
Melting point ‎Not available
Colour Dark brown
Synonyms Iron selenophosphate
Classification / Family 2D layered transition metal phosphorus trichalcogenides (MPX3), Magnetic semiconductor, Antiferromagnet, Nano-electronics, Nano-photonics, Photovoltaic, Materials science

Product Details

Form Purity

Iron Phosphorus Triselenide Powder

≥ 99.995%
Iron Phosphorus Triselenide Crystal ≥ 99.999%

MSDS Documents

Iron phosphorus triselenide powder MSDSIron phosphorus triselenide powder

Iron phosphorus triselenide crystal MSDSIron phosphorus triselenide crystal

Structure of Iron Phosphorus Triselenide

Iron phosphorus triselenide (FePSe3) belongs to a layered MPX3 (M = Mn, Fe, Ni, Zn and X = S, Se) family, having a rhombohedral crystal iron phosphorus triselenide system and contains three layers of FePSe3 per unit cell.

In the FePSecrystal, the P atom is coordinated to three S atoms and one P atom to form a [P2Se6]4- unit. The [P2Se6]4- unit is connected with six Fe atoms, which are arranged in a honeycomb plane structure. However, unlike FePS3 where the atomic layers of the sulfides stack in the C2/m space group, selenides stack in R3̅.

Raman spectrum of bulk FePSe3 shows intense peaks at 215 and 168 cm-1 that are assigned to the stretching vibration of P−Se bond in a [P2Se6]4- cluster.

Iron phosphorus triselenide crystal structure
The crystal structure of single-layer Iron phosphorus triselenide (FePSe3)

Applications of Iron Phosphorus Triselenide

Iron phosphorus triselenide (FePSe3) single crystals can be used to prepare monolayer and few-layer FePSe3 by mechanical or liquid exfoliation.

Iron phosphorus triselenide is suitable for liquid chemical exfoliation to prepare FePSe3 nanosheets and nanoparticles down to few-layer films.

Iron phosphorus triselenide (FePSe3) quantum sheets are excellent and highly stable trifunctional electrocatalyst for hydrogen evolution, oxygen evolution, and oxygen reduction reactions. Apart from being one of the most effective electrocatalysts for hydrogen evolution reactions (HER), FePSe3 can also be intercalated with llthium or sodium ions for batteries, transistors and other energy storage devices.

Pricing Table (All)

Form Size/Weight* Product Code Price
Powder 1 g M2208C1 £268.00
Crystal Small (≥ 10 mm2) M2208A10 £395.00 ea.
Crystal Medium (≥ 25 mm2) M2208A25 £638.00 ea.

*typical representative size, areas/dimensions may vary.

Shipping is free for qualifying orders placed via our secure online checkout.

Literature and Reviews

  1. Electronic and magnetic properties of single-layer MPX3 metal phosphorous trichalcogenides, B. Chittari et al., Phys. Rev. B, 94, 184428 (2016); doi: 10.1103/PhysRevB.94.184428.
  2. Metallic FePSe3 nanoparticles anchored on N-doped carbon framework for All-pH hydrogen evolution reaction, J. Yu et al., Nano Energy, 57, 222-229 (2019); doi: 10.1016/j.nanoen.2018.12.055.
  3. The Role of the Metal Element in Layered Metal Phosphorus Triselenides upon Their Electrochemical Sensing and Energy Applications, R. Gusmão et al., ACS Catal., 7 (12), 8159-8170 (2017); doi: 10.1021/acscatal.7b02134.
  4. Intrinsic Van Der Waals Magnetic Materials from Bulk to the 2D Limit: New Frontiers of Spintronics, H. Li et al., Adv. Mater., 31 (27), 1900065 (2019); doi: 10.1002/adma.201900065.
  5. Few-Layer Iron Selenophosphate, FePSe3: Efficient Electrocatalyst Towards Water Splitting and Oxygen Reduction Reactions, D. Mukherjee et al., ACS Appl. Energy Mater., 1 (1), 220-231 (2018); doi: 10.1021/acsaem.7b00101.
  6. Ion Gated Synaptic Transistors Based on 2D van der Waals Crystals with Tunable Diffusive Dynamics, J. Zhu et al., Adv. Mater., 1800195 (2018); DOI: 10.1002/adma.201800195.
  7. Emergent superconductivity in an iron-based honeycomb lattice initiated by pressure-driven spin-crossover, Y. Wang et al., Nat. Commun., 9, 1914 (2018); DOI: 10.1038/s41467-018-04326-1.
  8. Weak Van der Waal Stacking, Wide-Range Band Gap and Raman Study on Ultrathin Layers of Metal Phosphorus Trichalcogenides, K. Du et al., ACS Nano.,10(2):1738-43 2016); doi: 10.1021/acsnano.5b05927

To the best of our knowledge the technical information provided here is accurate. However, Ossila assume no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
