Carbon Nanodots


Product Code M2254B1
Price £120.00 ex. VAT

High purity, high PLQY Carbon Nanodots (C-dots)

Deep blue, blue green and infrared fluorescent carbon nanodots now available


Discovered by accident while researches were purifying carbon nanotubes in 2004, carbon nanodots (CNDs, or simply C-dots) are nanoparticles with sizes below 10 nm. Like fullerene, carbon nanotubes, and graphene, carbon nanodots are surface‐passivated carbonaceous quantum dots. They are typically composed of carbon, oxygen, nitrogen and hydrogen.

The relative amount present of each of these elements depends on the synthesis process used to create the carbon nanodots. Carbon dots can be synthesised from different approaches featuring bright fluorescent emission tuneable across the visible range, high water solubility with rich hydrophilic surface groups, biocompatibility, high sensitivity to the external environment, and marked electron donating and accepting capabilities.

Compared with other semiconductor nanodots with heavy metal cores, carbon nanodots have a number of distinct benefits including chemical inertness, low toxicity, ease of functionalization and resistance to photobleaching. Carbon nanodots are versatile and can be used in a wide range of technologies, such as bioimaging, photocatalysis, sensing, lasers, LED, and energy conversion/storage devices.

Ossila supplies high quality, low price carbon nanodots.

M2254A1 - Deep UV fluorescent carbon nanodots (260 - 300 nm)

M2254C1 - Intense blue fluorescent carbon nanodots (450 nm)

M2254B1 - Green fluorescent carbon nanodots (537 nm)

M2254D1 - NIR fluorescent carbon nanodots (705 nm)

Please refer to technical data for more details.

Applications of Carbon Nanodots

For their excellent optical properties, high biocompatibility and environmentally low toxicity, carbon dots find applications in biosensing, drug delivery, bioimaging, light emitting diode (LED), logic gates and energy storage devices.

  • Biosensing/bioimaging
  • Drug delivery
  • Light-emitting diodes (LED)
  • Logic gates
  • Photocatlysis
  • Energy and charge transfer devides

Technical Data

Deep UV Fluorescent Carbon Nanodots (M2254A1)

CAS number 7440-44-0
Chemical formula C
Molecular weight 12.011 g/mol
Full name Carbon Nanodots
Synonyms C-dots
Purity 98.5%
Concentration > 250 mg / ml
Appearance Clear Liquid
UV-Vis 270 nm and 302 nm
Emission Peak 260 - 300 nm by λexc of 375 nm
Photoluminescence Quantum Yield 11.3%
PH Value 6.7 – 7
Particle Size 1.6-1.8 nm
Stability Highly stable at room temperature
Classification / Family Carbon, Carbon nanodots, Quantum dots, Biosensing and bioimaging, Material science

Intense Blue Fluorescent Carbon Nanodots (M2254C1)

CAS number 7440-44-0
Chemical formula C
Molecular weight 12.011 g/mol
Full name Carbon Nanodots
Synonyms C-dots
Purity 98.5%
Concentration > 1 mg / ml
Appearance Yellowish liquid
UV-Vis 270 nm and 370 nm
Emission Peak 450 nm by λexc of 360 nm
Photoluminescence Quantum Yield 41.00%
PH Value 7.5
Particle Size 1.6 – 1.65 nm
Stability Highly stable at room temperature; high
and stable fluorescent intensity
Classification / Family Carbon, Carbon nanodots, Quantum dots, Biosensing and bioimaging, Material science

Green Fluorescent Carbon Nanodots (M2254B1)

CAS number 7440-44-0
Chemical formula C
Molecular weight 12.011 g/mol
Full name Carbon Nanodots
Synonyms C-dots
Purity ≥ 98%
Concentration ~ 500 mg / ml
Appearance Dark brown liquid
UV-Vis 274 nm and 410 nm
Emission Peak em. = 537 nm) under 420 nm excitation
Photoluminescence Quantum Yield 46%
PH Value 6.7 – 7
Particle Size 4.7 – 7 nm
Stability Sable at room temperature and over the pH range from 2 to 9.5
Classification / Family Carbon, Carbon nanomaterials, Quantum dots, Biosensing and bioimaging, Material science

NIR Carbon Nanodots (M2254D1)

CAS number 7440-44-0
Chemical formula C
Molecular weight 12.011 g/mol
Full name Carbon Nanodots
Synonyms C-dots
Purity ≥ 98%
Concentration > 40 mg / ml
Appearance Slight brown/yellow clear liquid
UV-Vis 237 nm and 279 nm
Emission Peak em. = 705 nm) under 480 nm excitation
Photoluminescence Quantum Yield 31%
PH Value 7.5
Particle Size 5.5 – 5.7 nm
Stability Highly stable at room temperature; high and stable fluorescent intensity
Classification / Family Carbon, Carbon nanomaterials, Quantum dots, Biosensing and bioimaging, Material science

Spectral Data

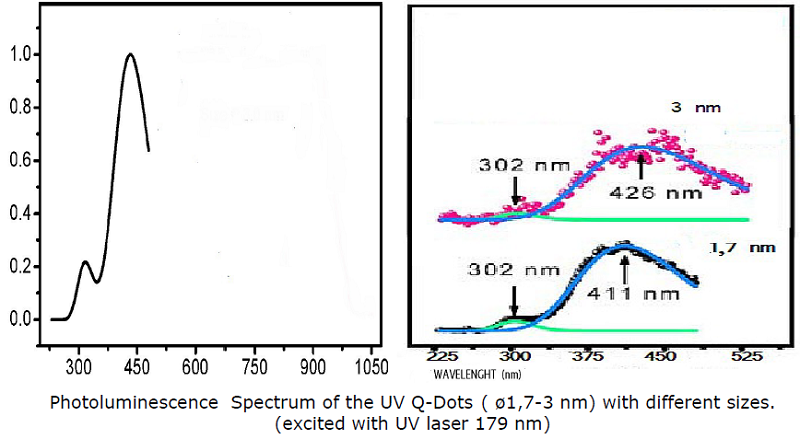

Absorption/Emission Spectra of Deep UV Fluorescent Carbon NanodotsAbsorption/Emission Spectra of Deep UV Fluorescent Carbon Nanodots

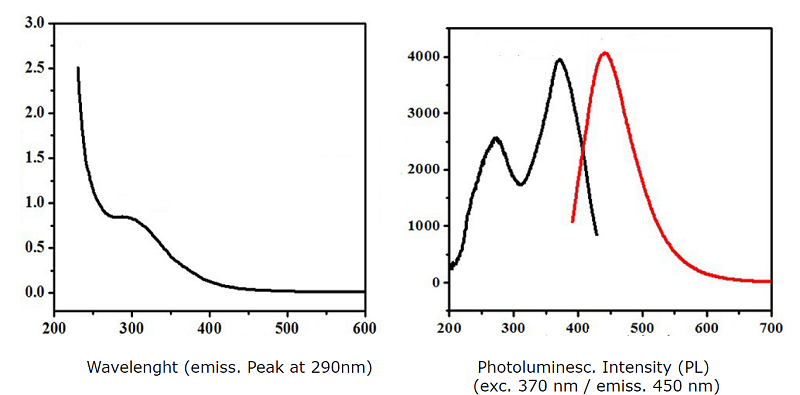

Absorption/Emission Spectra of Intense Blue Fluorescent Carbon NanodotsAbsorption/Emission Spectra of Intense Blue Fluorescent Carbon Nanodots

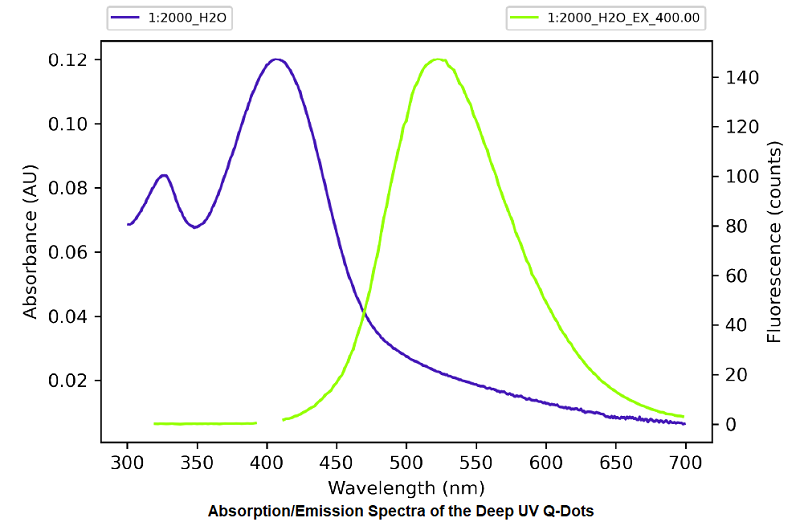

Absorption/Emission Spectra of Green Fluorescent Carbon NanodotsAbsorption/Emission Spectra of Green Fluorescent Carbon Nanodots

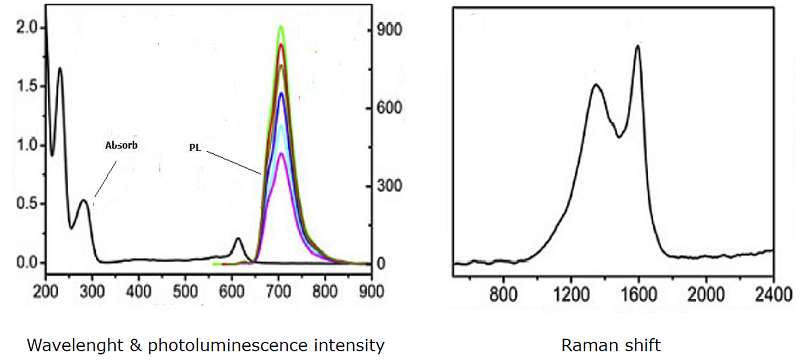

Absorption/Emission Spectra of NIR Fluorescent Carbon NanodotsAbsorption/Emission Spectra of NIR Fluorescent Carbon Nanodots

MSDS Documents

Carbon Nanodots Deep UV Fluorescent MSDSDeep UV Fluorescent Carbon Nanodots

Carbon Nanodots Intense Blue Fluorescent MSDSIntense Blue Fluorescent Carbon Nanodots

Carbon Nanodots Green Fluorescent MSDSGreen Fluorescent Carbon Nanodots

Carbon Nanodots NIR Fluorescent MSDSNIR Fluorescent Carbon Nanodots

Pricing Table

Product Code Volume Price
M2254 10 ml £120.00
M2254 25 ml £250.00

Shipping is free for qualifying orders placed via our secure online checkout.

Literature and Reviews

  1. A Biocompatible Fluorescent Ink Based on Water-Soluble Luminescent Carbon Nanodots, S. Qu et al., Angew. Chem. Int. Ed. 2012, 51, 12215 –12218 (2012); DOI: 10.1002/anie.201206791.
  2. Carbon Nanodots: Toward a Comprehensive Understanding of Their Photoluminescence, V. Strauss et al., J. Am. Chem. Soc., 136, 17308−17316 (2014); DOI: 10.1021/ja510183c.
  3. Carbon Nanodots: A Review—From the Current Understanding of the Fundamental Photophysics to the Full Control of the Optical Response, A. Sciortino et al., C - J. Carb. Res., 2018, 4(4), 67; DOI: 10.3390/c4040067.
  4. Novel properties and applications of carbon nanodots, L. Xiao et al., Nanoscale Horiz.,3, 565-597 (2018); DOI: 0.1039/C8NH00106E.
  5. Synthesis and analytical applications of photoluminescent carbon nanodots, P-C. Hsu et al., Green Chem., 14, 917 (2012); 10.1039/c2gc16451e.
  6. The photoluminescence mechanism in carbon dots (graphene quantum dots, carbon nanodots and polymer dots): current state and future perspective, S. Zhu et al., Nano Res., 8, 355–381(2015); DOI: 10.1007/s12274-014-0644-3.
  7. Carbon nanodots: synthesis, properties and applications, H. Li et al., J. Mater. Chem.,22, 24230-24253 (2012); DOI: 10.1039/C2JM34690G.

To the best of our knowledge the information provided here is accurate. However, Ossila assume no liability for the accuracy of this page. The values provided are typical at the time of manufacture and may vary over time and from batch to batch. All products are for laboratory and research and development use only, and may not be used for any other purpose including health care, pharmaceuticals, cosmetics, food or commercial applications.
